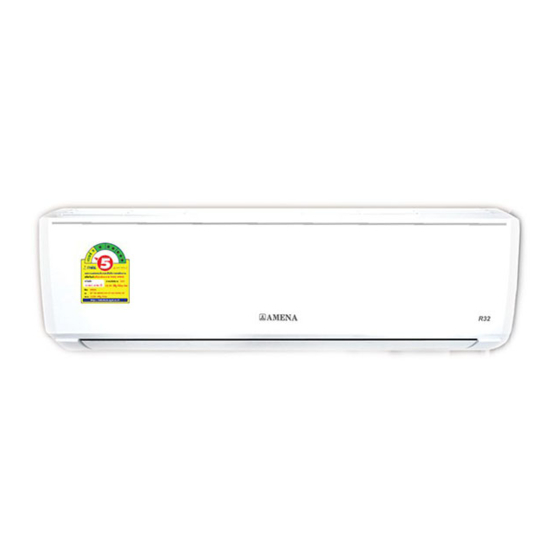

Summary of Contents for AMENA WHV-B Series
- Page 1 O P E R A T I O N M A N U A L Read this Operation manual carefully and keep it for future reference MODEL WHV-B / HCV-B SERIES COOLING ONLY...
-
Page 2: Table Of Contents
CONTENTS Operation and maintenance Notices for operation Notices for use Names and functions of each part Operation of wireless remote control Emergency operation Clean and care Trouble shooting The figures in this manual may be different with the material objects, please refer to the material objects for reference. - Page 3 Appliance filled with flammable gas R32. Before use the appliance, read the owner’s manual first. Before install the appliance, read the installation manual first. Before repair the appliance, read the service manual first. The Refrigerant To realize the function of the air conditioner unit, a special refrigerant circulates in the system.
-
Page 4: Notices For Operation
Notices for operation Please read the following carefully before operating Be sure to pull out When the voltage Never splice the is very high, the the power plug as power cord or use components would be easily the air conditioner not in use an extended cord. - Page 5 Notices for operation ★ ★ Please don't cut off or damage the To adjust the airflow direction power cords and control cords. appropriately. When operating the unit, to adjust the vertical and lateral air If they are damaged, please ask the qualified flow direction by use of remote controller.
-
Page 6: Notices For Use
Notices for use Working principle and special functions for cooling Principle: Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that indoor ambient temperature decreased, its cooling capacity will increase or decrease by outdoor ambient temperature. Anti-freezing function If the unit is running in COOL mode and in low termperature, there will be frost formed on the heat exchanger, when indoor heat exchanger temperature decreased below 0... -
Page 7: Names And Functions Of Each Part
Names and functions of each part Indoor unit Power cable Front panel Filter Guide louver Wall pipe Bind tape Outdoor unit Connection wire Drainage pipe Remote control... -
Page 8: Operation Of Wireless Remote Control
Operation of wireless remote control Name and function of wireless remote control Note: Be sure that there are no obstructions between receiver and remote controller; Don't drop or throw the remote control; Don't let any liquid in the remote control and put the remote control directly under the sunlight or any place where is very hot. - Page 9 Operation of wireless remote control Names and functions of wireless remote control Notice: This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model dosen't have, if press the corresponding button on the remote controller that the unit will keep the original running status.
- Page 10 Operation of wireless remote control INDOOR UNIT DISPLAY Function (1) Lights up during Timer operation when Temperature display /Error code the air conditioner is operational (2)Displays the malfunction code when fault occurs. Lights up during Timer operation. TIMER SLEEP mode SLEEP To switch off the unit, you just need to press the button again...
-
Page 11: Clean And Care
Clean and care CAUTION Turn power off and pull out the power plug before cleaning air conditioner. Or it may cause electric shock. Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause an electric shock. Volatile liquid (e.g. - Page 12 Clean and care Take down the air filter At the slot of surface panel to open an angle, pull the air filter downward and take it out. Cleaning To clean the dust adhering to the filters, you can either use a vacuum cleaner, or wash them with warm water (the water with the neutral detergent should below 45 When the filters are very dirty (such as oil stain), and dry it in the shade.
-
Page 13: Troubleshooting
Troubleshooting Warning Do not repair the air conditioner at your discretion. Incorrect repair may cause electric shock or fire, so please contact Authorized Service Center for professional repair. Following checks prior to contact may save your time and costs. Troubleshooting Phenomenon Air conditioner does not run upon immediately To protect the air conditioner upon immediate... - Page 14 Troubleshooting Phenomenon Troubleshooting Has the power been shut down? The unit can not run. Does power plug come loose from the socket? Is the circuit protection device tripped o or not? Is voltage higher or lower? (Tested by professionals) reak o Is the Timer correctly used? Is Temp.
- Page 15 Troubleshooting Troubleshooting Phenomenon Indoor unit cannot deliver air. In dehumidifying mode, sometimes indoor fan will stop, in order to avoid condensing water be vaporized again, restrain temper- ature rising. Moisture on air outlet vent. If unit is running under the high humidity for a long time, the moisture will be condensed on the air outlet grill and drip off.
- Page 16 CUSTOMER SERVICE DEPARTMENT LACO MARKETING CO.,LTD. CLAIM SERVICE 136, 136/1-4 PHRAYASUREANT RD. BANGCHAN, TECHNICAL SUPPORT SERVICE KLONGSAMWA, BANGKOK 10510 THAILAND SPARE PART SERVICE TEL. (662) 517-1000 (AUTOMATIC) FAX. (662) 517-5730 TEL.(662) 517 - 5000 ( AUTOM AT IC) FAX. (662)919 -1144...
