Summary of Contents for Alfred Hermes ZAS-2020

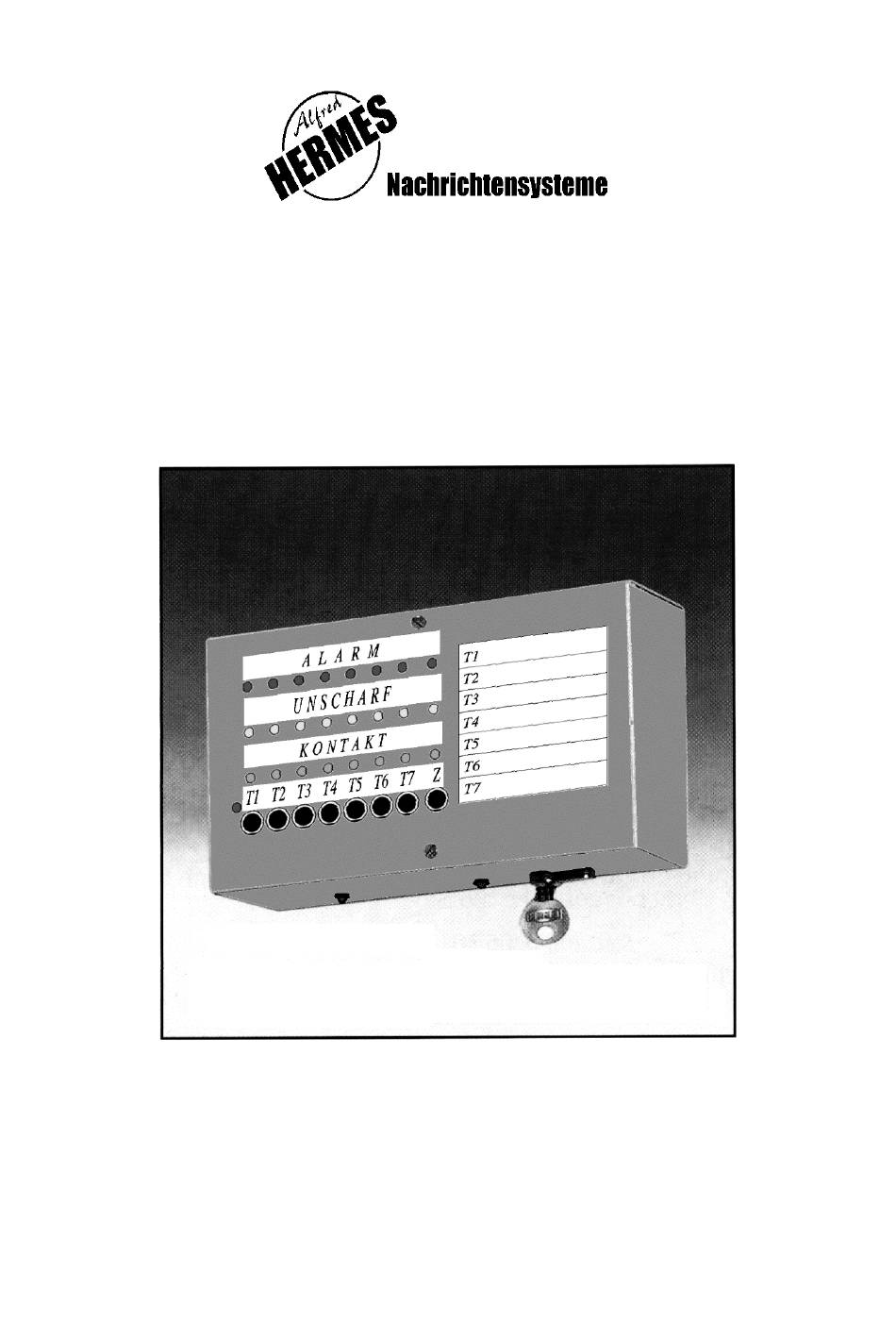

- Page 1 Door Surveillance on the escape route control panel type: ZAS-2020 User manual and instructions for operators © 2019 Alfred Hermes -Nachrichtensysteme – Copy only for your own use! Page 1...

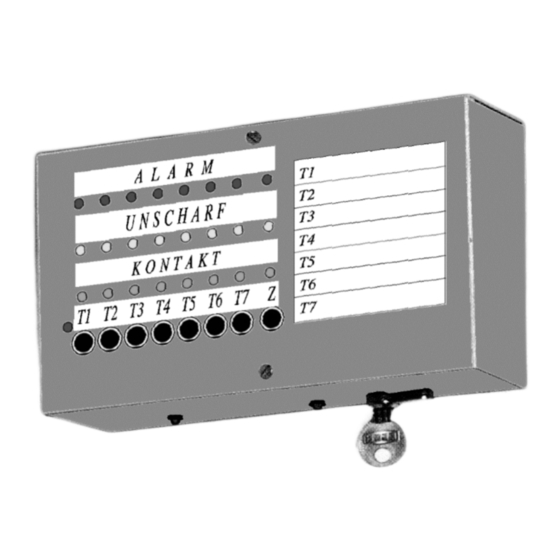

- Page 2 For the authorized use the door can be activated with a key. For further details, please refer to the assembly instructions of ZAS-2020. The ZAS-2020 is a control and switching panel for the remote monitoring and the remote control from up to 7 connected single door surveillances of the type FWS-2020.
- Page 3 Operation element key switch (profile cylinder lock) Wear-free profile cylinder lock with the authorisation to operate the connected devices by remote control. The key can be turned around several times in the same direction without damaging the device. The lock has a magnetic switch contact. Therefore, turning of the key you feel only little resistance.
- Page 4 The red indication lamp „Z“ lights if there is an interruption or faulty BUS - connection to the connected devices. (Changes and errors excepted) Dokument: ZAS2020_user_manual Rev.0 Irrtum vorbehalten Erstellt am 02.08.2019 von: Rene Termühlen Freigegeben von: Alfred Hermes Page 4...
