Summary of Contents for AQUA tip CVODA 5

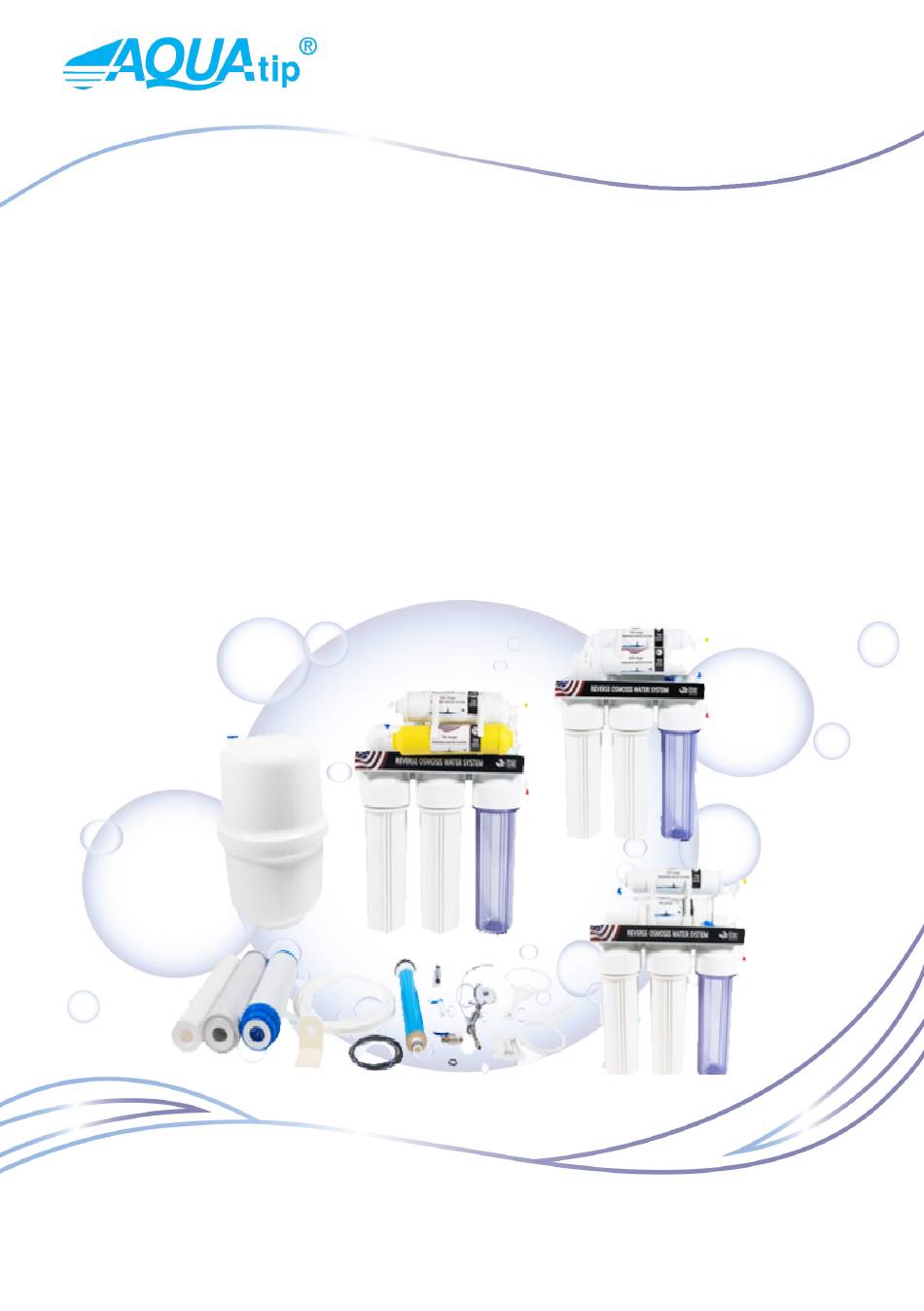

- Page 1 User manual REVERSE OSMOSIS WATER SYSTEM CVODA...
- Page 2 CVODA 5-step reverse osmosis includes: • Higher permeability mechanical insert captures the vast majority of water-visible contaminants that could subsequently damage the system.
- Page 3 Reverse osmosis water system CVODA User manual / 2 Package Contents In each package you will find hoses, connections, valves, inserts for the filter device, the filter itself, the water tank, the battery for filtered water and the like. For the installation of reverse osmosis, we recommend the purchase of a sewer connection, circlips and also teflon tape for thread sealing.
- Page 4 Reverse osmosis water system CVODA User manual / 3 Permeat pump installation Permeat pump is designed to reduce wastewater consumption, it is not part of the package, but you can find it in our e-shop. From the flow restrictor, connect the hose to the Brine IN inlet permeat pump. The Brine OUT will be disposed of. Disconnect the hose that goes from the diaphragm to the 4-way valve and connect this hose to the Permeat IN hole and the Permeat inlet OUT we insert the hose into the 4-way valve, where the hose from the diaphragm led before.
- Page 5 Reverse osmosis water system CVODA User manual / 4 Flushing the water tank and inline filters We turn on the main water supply, open both taps on the faucet, or we can bleed the device by lifting 3.filter cylinder. As soon as water starts to flow, let the water flow out of at least 5 minutes, the battery is closed, the valve opens These indentations and let the water fill the tank for about 45 minutes.
- Page 6 Reverse osmosis water system CVODA User manual / 5 Installing the disinfectant insert in front of the system We will install the disinfectant insert in front of the reverse osmosis system. When placing the insert, make sure that it is installed the right direction, the direction of water flow, as indicated on the package.
- Page 7 Reverse osmosis water system CVODA User manual/ 6 Technical parameters 5 degree reverse osmosis: Product dimensions: height 46 cm, width 41 cm, depth 22 cm. Number of filtration stages: 5 Tank volume: 12l (because it is a pressure vessel, the actual tank volume is about half) Tank dimensions (H, Diameter): 40x28cm Flow: up to 280 liters per day Operating pressure: 2.8 - 6 bar (4 bar optimal)
