Summary of Contents for aguti S2

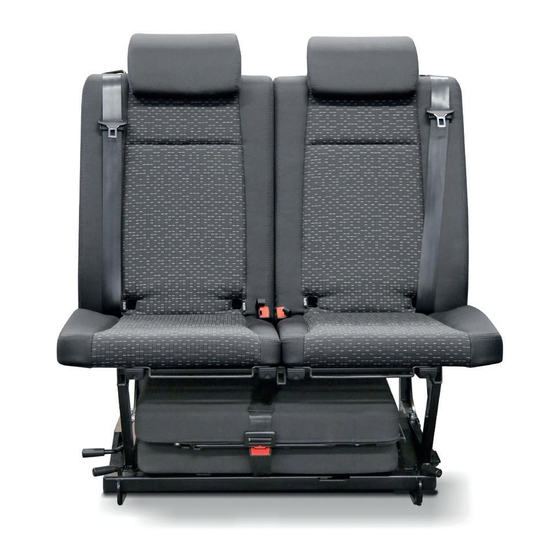

- Page 1 Product manual Sleeping bench S2 Rail-in system Seat systems | Benches www.aguti.com Specifi cation: Rail-In system...
- Page 2 If the following instructions are not carried out in the same way for right- of the fastening screws are observed. observed, Aguti accepts no liability hand seats. or warranty. Failure to follow these inst- Old fastening materials must not be ructions can result in serious injury.
- Page 3 Assembly Sleeping bench S2 Rail-In system Assembly instruction Sleeping bench S2 for Rail-In systems 1 Mushroom head rail adaption 2 Locking bolts 3 Locking levers © aguti.com | 5/05/2022 3 / 8...
- Page 4 Assembly Sleeping bench S2 Rail-In system Slide the sleeping bench into the required position. To fix of Insert the sleeping bench into the rails. The mushroom heads the sleeping bench, the mushroom heads (1) must be located (1) must be located into the recesses of the rails. Therefore, the between the recesses of the rails.
- Page 5 Disassembly Sleeping bench S2 Rail-In system Move the sleeping bench into a position that the mushroom To release the sleeping bench, pull forward the locking bolts heads (1) are located at the recesses of the rail. (2) and at the same time pull the locking levers (3) upwards.
- Page 6 Build-up bed extension Sleeping bench S2 Rail-In system Open the safety belt buckle and take out both bed extension Fold-down the backrests and hook the bed extension into the parts. The bed extension must be secured by the safety belt bracket under the edge of the seat.
- Page 7 Operation Sleeping bench S2 Rail-In system Operation manual Sleeping bench S2 Rail-In system Controls Release strap Backrest inclination Locking lever Positioning on rail Push button Headrest adjustment ISOFIX bracket Child seat connection Top Tether connection Child seat securing DO NOT operate the controls...
- Page 8 Aguti Produktentwicklung T +49 7543 9621.60 T +49 7543 9621.60 & Design GmbH & Design GmbH info@aguti.com info@aguti.com Bildstock 18/3 Bildstock 18/3 www.aguti.com www.aguti.com D - 88085 Langenargen D - 88085 Langenargen © Aguti 2022 © Aguti 2021 8 / 8...
