AXMINSTER TOOLS WORKSHOP AW1502WSG Original Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Code 107824
Original Instructions
AW1502WSG

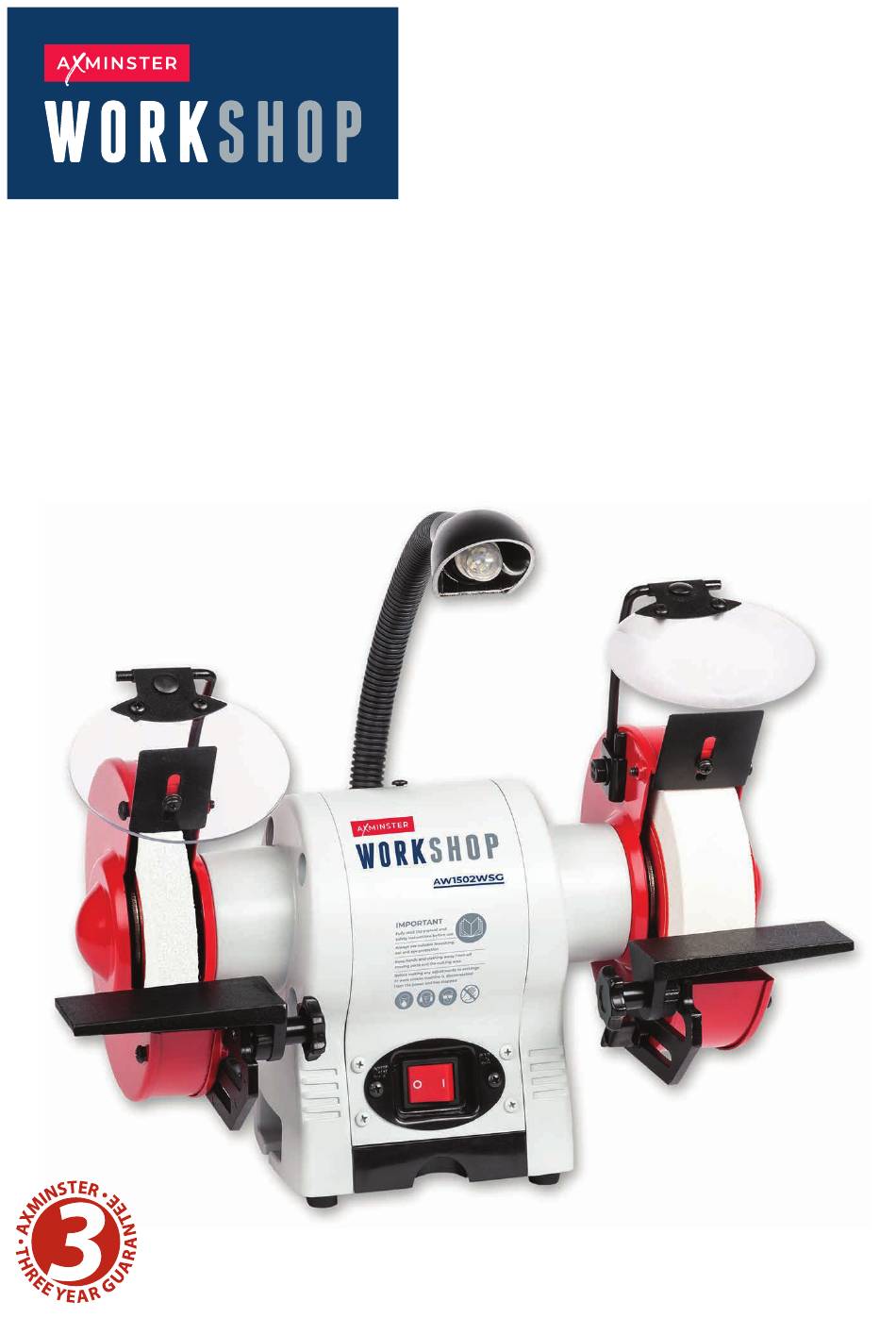

Wide Stone Bench Grinder
AT: 11/02/2022
BOOK VERSION: 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WORKSHOP AW1502WSG and is the answer not in the manual?

Questions and answers

Summary of Contents for AXMINSTER TOOLS WORKSHOP AW1502WSG

  • Page 1 Code 107824 Original Instructions AW1502WSG Wide Stone Bench Grinder AT: 11/02/2022 BOOK VERSION: 2...

  • Page 2: Eu Declaration Of Conformity

    INDEX OF CONTENTS EU Declaration of Conformity What’s Included General Instructions for 230V Machines Specific Safety Precautions for Grinding Machines 04-05 Assembly 05-06 Illustration and Parts Description Specification Setting Up the Grinder 08-09 Changing the Grinding Stone 09-10 Dressing the Stone Changing the Light Bulb Exploded Diagrams/Lists 12-13...

  • Page 3: What's Included

    WHAT’S INCLUDED Quantity Item Part Model Number AW1502WSG Wide Stone Bench Grinder Left/Right Hand Tool Rest Mounting Brackets Left/Right Hand Adjustable Tool Rests Butterfly Knobs & Washers Tool Rest Clamping Knobs & Washers Spark Guard Brackets with Screws/Washers Eye Shield Mounting Bars Mounting Bar Square Brackets with Bolts &...

  • Page 4: General Instructions For 230V Machines

    GENERAL INSTRUCTIONS FOR 230V MACHINES • Leave machine unplugged until work is about to The following will enable you to observe good working practices, keep yourself and fellow workers safe and commence. maintain your tools and equipment in good working •...
  • Page 5 SPECIFIC SAFETY PRECAUTIONS FOR GRINDING MACHINES 16. Avoid awkward hand positions where a sudden slip 12. Always make sure the spark guards and eye shields could cause the hands to come into contact with a are in place, that they are properly adjusted and grinding wheel, wire brush etc.
  • Page 6 ASSEMBLY Nip-up the eye sheild Adjust the spark guard so its just above the stone Magnifying glass...

  • Page 7: Illustration And Parts Description

    ILLUSTRATION AND PARTS DESCRIPTION Eye shield guard with integrated magnifying glass Flexible light Eye shield guard Grinding Motor stone guard 40mm 80 grit Grinding stone Adjustable tool rest Tool rest 20mm clamping bolts 60 grit Grinding stone Tool rest mounting On/Off switch bracket Storage drawer...

  • Page 8: Specification

    SPECIFICATION Code 107824 Model AW1502WSG Power 250W 50Hz 230V 1Ph Duty Cycle S1 180W Wheel Width 20 mm & 40 mm Grit 20mm 60 grit & 40mm 80 grit Wheel Diameter 150 mm Shaft Diameter 12.7 mm (1/2") Overall L x W x H 310 mm x 270 mm x 215 mm Weight 9.8 kg...
  • Page 9 SETTING UP THE GRINDER Carry out final checks e.g. check the gap between the tool rest and the stone is correct, check the stone is CONNECT THE GRINDER not badly deformed (rounded edges, grooved face, etc; TO THE MAINS SUPPLY. unless you have specifically shaped the stone to these profiles), check the eye shield is correctly positioned.
  • Page 10 CHANGING THE GRINDING STONE Step 5-6 Step 8-9-10 Remove plate flange and carefully remove the stone. Clean the interior stone guard, inspect the new stone for cracks and damage to either the front face or the edges before fitting. Carefully slide the stone on the shaft, replace the plate flange, the nut and tighten against the rotation of the stone.
  • Page 11 DRESSING THE STONE/CHANGING THE LIGHT BULB CONNECT THE GRINDER CONNECT THE GRINDER TO THE MAINS SUPPLY. TO THE MAINS SUPPLY. Switch the grinder on and allow it to run for at least Switch on the grinder, wait until it reaches full speed one minute.
  • Page 12 EXPLODED DIAGRAMS/LISTS Model: HBG620HA...
  • Page 13 EXPLODED DIAGRAMS/LISTS Model: HBG620HA Description Specification Eyeshield fix plate Type TZ Philips M5 x 42 Philips M4 x 8 screw screw+spring washer+flat washer Left wheel guard assembly cover Philips screw M4 x 10 Type I hex nut M12 Left Philips screw+flat M5 x 124 Flange washer assembly...
  • Page 14 EXPLODED DIAGRAMS/LISTS Model: HBG620HA External teeth lock washer White wheel 150 x 40 x Switch plate 12.7mm 80# Switch Wheel dresser base Hex flange face nut External teeth lock washer Philips screw + flat M4 x 16 washer Cross pan head M4 x 8 screw Type TZ Philips...

  • Page 15: Wiring Diagram

    WIRING DIAGRAM...
  • Page 16 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately. Axminster Tools, Axminster Devon EX13 5PH axminstertools.com...
