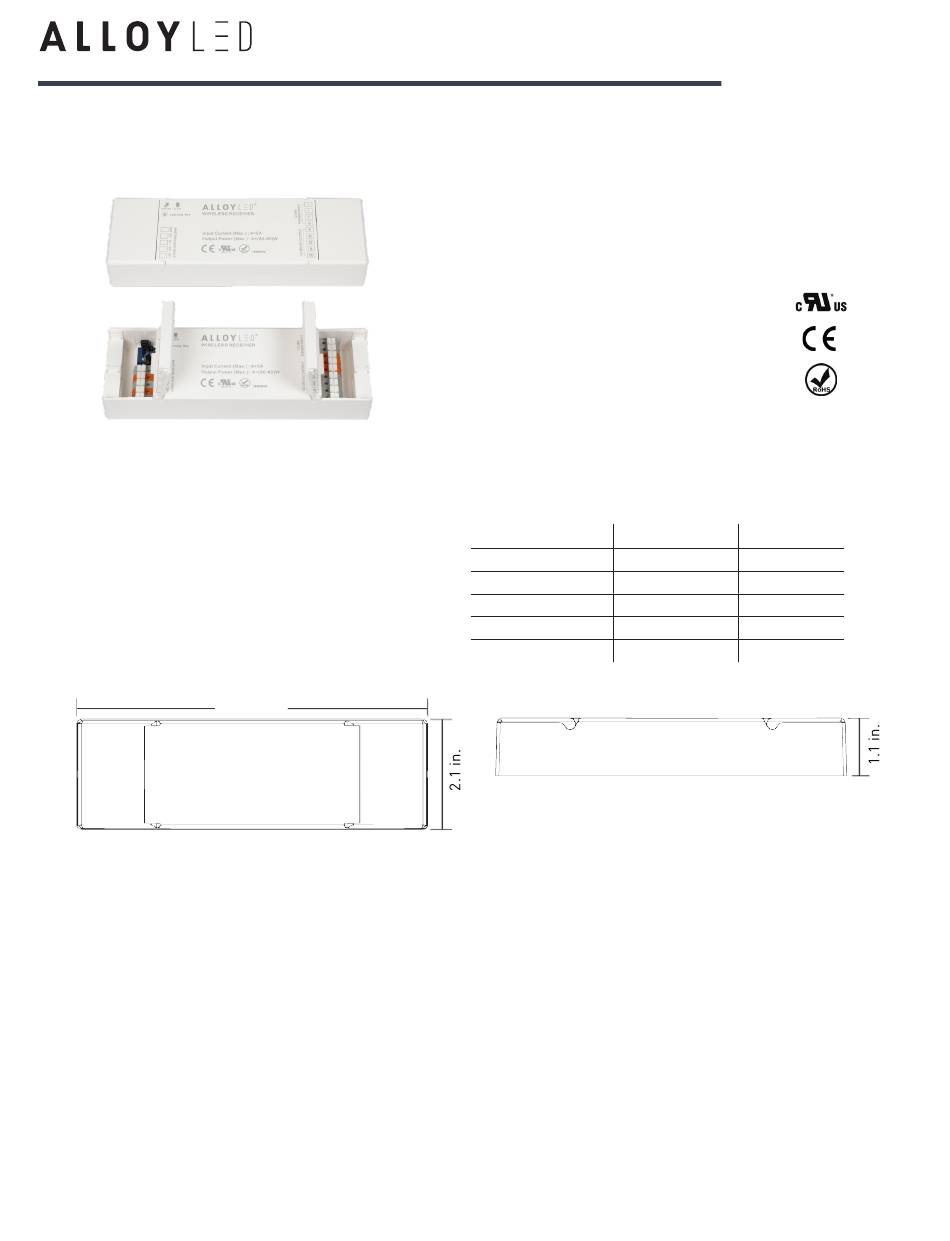

ALLOYLED AL-60-03-0004-V2 Operation

Receiver for Wireless Remote Controllers

AL-60-03-0004-V2
• Compatible with: (all sold separately)
Remote Control Dimmer Switch - AL-60-03-0001
Wireless Remote Controller - AL-60-03-0002
DMX Touch Wall Controller - AL-60-03-0003
LED WiFi Controller Hub - AL-60-03-0008
SlimDim Wireless Controller - AL-60-03-0009

Dimensions

Safety & Warnings
• This product should be installed and serviced by a qualified, licensed electrician in accordance with all
national and local electrical codes.
• Do not expose this unit to water. When installed outdoors, ensure it is mounted in a waterproof enclosure.
• Always mount this unit in an area with proper ventilation to avoid overheating.
• Never connect any cables while power is on.
• Before switching power on, ensure connections are correct to avoid short circuits.

Troubleshooting

• Make sure that the voltage of any LED power supplies used complies with the working voltage
(12-36V DC ) of this product.
• Ensure that the connector wires are secured.
• Check that the wires coming from the fixture or connector match the markings for the terminals
on the receiver, e.g. red is connected to red, blue is connected to blue, etc.
www.AlloyLED.com
page 1 of 3
®
®
6.69 in.
| Call: 800.910.LEDS [5337]

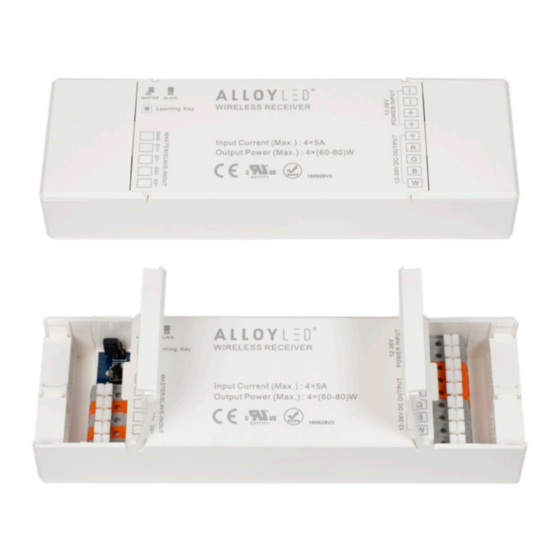

This wireless receiver is compatible with several color controllers
and dimmers (all sold separately) to provide full color control
and dimming of LED lights. Additional wireless receivers can be
used with the same controller to create independent zones that
are limited only by the controller. It features easy-to-use push-in
connectors and hard-wired master/slave functionality for perfect
synchronization.
• Input Voltage: 12-36V DC
• Output Wattage (RGB): max. 360W total
• Output Wattage (RGB-W): max. 480W total
• Max. Current: 5A per channel
• Constant Voltage
• Max. receivers per remote control: 20
Maximum total amount of tape that can be connected to
the Receiver (note: observe maximum run lengths for
individual tape light sections):
Radialux model Receiver limit
®
2.2 RGB 163 ft.
4.4 RGB 81 ft.
4.4 RGB-W 109 ft.
5.9 RGB-W 81 ft.
8.8 RGB 40 ft.
6.69 in.
| Text: 510.400.6690
Max. Run
16.4 ft.
16.4 ft.
16.4 ft.
16.4 ft.
20 ft.
| solutions@AlloyLED.com
v1.1
