AIVA XR-FA500 Service Manual

Micro hi-fi component system

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

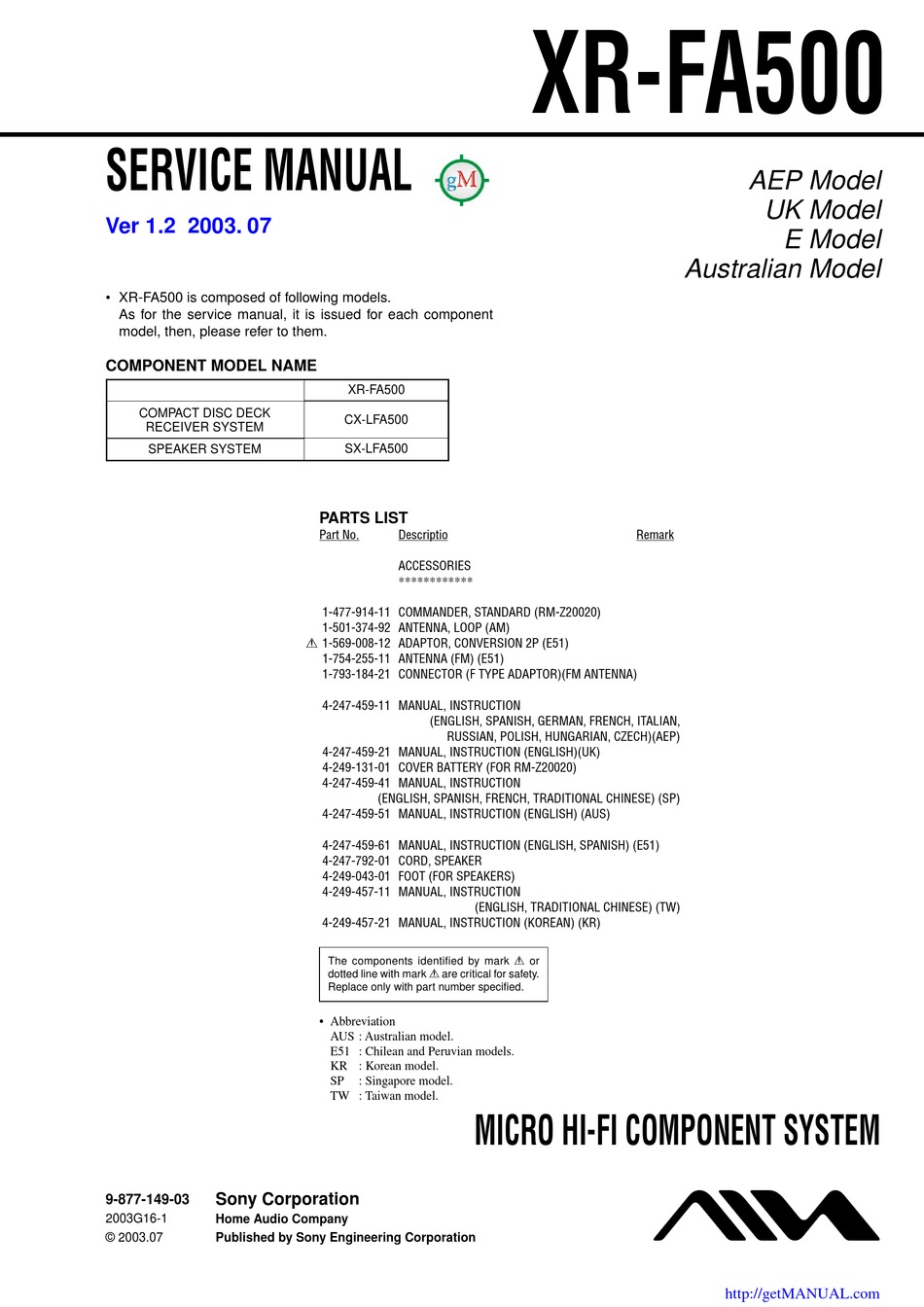

SERVICE MANUAL

Ver 1.2 2003. 07

• XR-FA500 is composed of following models.

As for the service manual, it is issued for each component

model, then, please refer to them.

COMPONENT MODEL NAME

COMPACT DISC DECK

RECEIVER SYSTEM

SPEAKER SYSTEM

Sony Corporation

9-877-149-03

2003G16-1

Home Audio Company

Published by Sony Engineering Corporation

XR-FA500

CX-LFA500

SX-LFA500

PARTS LIST

Part No.

Descriptio

ACCESSORIES

************

1-477-914-11 COMMANDER, STANDARD (RM-Z20020)

1-501-374-92 ANTENNA, LOOP (AM)

0 1-569-008-12 ADAPTOR, CONVERSION 2P (E51)

1-754-255-11 ANTENNA (FM) (E51)

1-793-184-21 CONNECTOR (F TYPE ADAPTOR)(FM ANTENNA)

4-247-459-11 MANUAL, INSTRUCTION

(ENGLISH, SPANISH, GERMAN, FRENCH, ITALIAN,

RUSSIAN, POLISH, HUNGARIAN, CZECH)(AEP)

4-247-459-21 MANUAL, INSTRUCTION (ENGLISH)(UK)

4-249-131-01 COVER BATTERY (FOR RM-Z20020)

4-247-459-41 MANUAL, INSTRUCTION

(ENGLISH, SPANISH, FRENCH, TRADITIONAL CHINESE) (SP)

4-247-459-51 MANUAL, INSTRUCTION (ENGLISH) (AUS)

4-247-459-61 MANUAL, INSTRUCTION (ENGLISH, SPANISH) (E51)

4-247-792-01 CORD, SPEAKER

4-249-043-01 FOOT (FOR SPEAKERS)

4-249-457-11 MANUAL, INSTRUCTION

(ENGLISH, TRADITIONAL CHINESE) (TW)

4-249-457-21 MANUAL, INSTRUCTION (KOREAN) (KR)

The components identified by mark 0 or

dotted line with mark 0 are critical for safety.

Replace only with part number specified.

• Abbreviation

AUS : Australian model.

E51 : Chilean and Peruvian models.

KR : Korean model.

: Singapore model.

TW : Taiwan model.

MICRO HI-FI COMPONENT SYSTEM

XR-FA500

Australian Model

Remark

AEP Model

UK Model

E Model

http://getMANUAL.com

Table of Contents

Need help?

Do you have a question about the XR-FA500 and is the answer not in the manual?

Questions and answers

Summary of Contents for AIVA XR-FA500

Page 1 AEP Model UK Model Ver 1.2 2003. 07 E Model Australian Model • XR-FA500 is composed of following models. As for the service manual, it is issued for each component model, then, please refer to them. COMPONENT MODEL NAME XR-FA500...
Page 2 CX-LFAV500 SERVICE MANUAL E Model Ver 1.0 2003. 08 CX-LFAV500 is the Amplifier, Video CD/CD player, Tape Deck and Tuner section in XR-FAV500. Model Name Using Similar Mechanism CD Mechanism Type CDM55A-30BD61S Section Base Unit Name BU-30BD61S Optical Pick-up Name A-MAX.3 Model Name Using Similar Mechanism CX-LFA500...
Page 3: Table Of Contents
CX-LFAV500 TABLE OF CONTENTS 1. SERVICING NOTES 7. DIAGRAMS ······················································· 3 ······································································ 19 7-1. BLOCK DIAGRAM – BD SECTION – ····················· 20 7-2. BLOCK DIAGRAM – VCD SECTION – ··················· 21 2. GENERAL ·········································································· 5 7-3. BLOCK DIAGRAM – MAIN SECTION – ················ 22 7-4.
Page 4: Servicing Notes
CX-LFAV500 SECTION 1 SERVICING NOTES Notes on chip component replacement CAUTION • Never reuse a disconnected chip component. Use of controls or adjustments or performance of procedures • Notice that the minus side of a tantalum capacitor may be dam- other than those specified herein may result in hazardous aged by heat.
Page 5 CX-LFAV500 Service Position of the CD Mechanism Deck and VCD Board MAIN Board VCD Board CN802 CD Mechanism Deck (CDM55A-30BD64S) CN806 Extension cable J-2501-245-A (1.00mm/23P/L300) Extension cable J-2501-225-A (1.00mm/9P/L300) Service Position of the Tape Cassette Mechanism Deck MAIN Board Tape Cassette Mechanism Deck (CMAL1Z222B)
Page 6: General
CX-LFAV500 SECTION 2 GENERAL This section is extracted from instruction manual. PARTS AND CONTROLS 6 ECD/SELECT (8, 10-14) Main unit: front Starts and pauses CD play. Refer to the pages indicated in parentheses for details. TUNER/BAND (8, 16) Selects tuner function and the tuner band. dTAPE (REC MUTING) (8, 18, 19) Starts playback and changes the playback side.
Page 7 CX-LFAV500 Remote commander REV MODE (17, 18, 22) ON SCREEN / PBC (12, 13) Selects a reverse mode. ON SCREEN: displays disc information such as elapsed Refer to the pages indicated in parentheses for details. tiime on TV screen. SHUF/PROGRAM (10, 11, 21) PBC: turns the PBC function on and off.
Page 8: Disassembly
CX-LFAV500 SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. VCD BOARD, MAIN BOARD, TOP CABINET, FRONT BOARD, CD MECHANISM DECK SINGLE CASSETTE MECHANISM PT BOARD V-OUT BOARD, DC FAN (CDM55A-30BD61S) MIC/ECHO BOARD LOADING BOARD BD BOARD TRAY (CDM55D) CD MECHANISM SECTION...
Page 9: Mic/Echo Board
CX-LFAV500 3-2. MIC/ECHO BOARD 4 two s crews (+BVTP 3 × 10) 2 connector 3p (CN501) 3 w ire (flat type) 5p (CN504) 1 connector 4p (CN502) 5 MIC/ECHO board 3-3. CD MECHANISM SECTION 2 four s crews 4 w ire (flat type) 11p (CN303) (+BVTP 3 ×...
Page 10: Front Panel Assy
CX-LFAV500 3-4. FRONT PANEL ASSY 6 front panel assy 2 w ire (flat type) 23p (CN302) 5 connector 6p 3 connector 5p (CN201) 1 two s crews (+KTP 3 × 12) 3-5. FRONT BOARD, SINGLE CASSETTE MECHANISM 3 twelve s crews (+BVTP 3 × 10) 8 FRONT board 4 w ire (flat type) 23p (CN601) 5 w ire (flat type) 5p (CN605)
Page 11: Main Board, Pt Board
CX-LFAV500 3-6. MAIN BOARD, PT BOARD 8 s crew (+BVTP 3 × 10) 9 holder (PWB PT) 7 four s crews (+B 4 × 8) qs PT board q; connector 2p (CN202) 4 five s crews (+BVTP 3 × 10) 1 connector 7p (CN801) 6 MAIN board qa power transformer...
Page 12: Vcd Board
CX-LFAV500 3-7. VCD BOARD, CD MECHANISM DECK (CDM55A-30BD61S) 2 two s crews (+BVTP 3 × 10) 1 w ire (flat type) 10p (CN806) 3 lid (VCD), shield case 7 two s crews (+BVTP 3 × 10) 4 w ire (flat type) 9p (CN803) 8 VCD board q;...
Page 13: Bd Board
CX-LFAV500 3-9. BD BOARD wire (flat type) 25p (CN103) wire (flat type) 16p Remove soldering from the four points. BD board claw 3-10. TRAY (CDM55D) 1 While pressing the two protrusions A and B to unlock the two claws as shown, pull the tray in the direction of the arrow C .
Page 14: Base Unit (Bu-30Bd61S)
CX-LFAV500 3-11. BASE UNIT (BU-30BD61S) 8 w ire (flat type) 9p (CN105) 7 two insulators 4 two floating screws 1 floating screws (+PTPWH M2.6) (+PTPWH M2.6) 3 two floating screws (+PTPWH M2.6) base unit (BU-30BD61S) 6 two insulators 5 BU holder (BU-30)
Page 15: Test Mode
CX-LFAV500 SECTION 4 TEST MODE [Cold Reset] [TC Test Mode] The cold reset clears all data including preset data stored in Procedure: the RAM to initial conditions. Execute this mode when re- 1. Extract an AC plug. turning the set to the customer. 2.
Page 16: Mechanical Adjustments
CX-LFAV500 SECTION 5 MECHANICAL ADJUSTMENTS Precaution Clean the following parts with a denatured alcohol-moistened swab: record/playback heads pinch rollers erase head rubber belts capstan idlers Demagnetize the record/playback head with a head demag- netizer. Do not use a magnetized screwdriver for the adjustments. After the adjustments, apply suitable locking compound to the parts adjusted.
Page 17: Electrical Adjustments
CX-LFAV500 SECTION 6 ELECTRICAL ADJUSTMENTS Mode: Playback DECK SECTION 0 dB=0.775V test tape Demagnetize the record/playback head with a head demagnetizer. MAIN board P-4-A100 J605 (10kHz, –10dB) Do not use a magnetized screwdriver for the adjustments. speaker terminal oscilloscope After the adjustments, apply suitable locking compound to the parts adjusted.
Page 18 CX-LFAV500 RFDC signal waveform CD SECTION VOLT/DIV: 200 mV TIME/DIV: 500 ns Note: 1. CD Block is basically designed to operate without adjustment. There- fore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. level: 0.7 ± 0.2 Vp-p 3.
Page 19 CX-LFAV500 E-F Balance Adjustment Connecting Location: Connection: – BD BOARD (Conductor Side) – oscilloscope BD board TP2 (TE) TP7 (VC) – Procedure: Connect an oscilloscpe to test point TP2 (TE) and TP7 (VC) on the BD board. AC is put in pushing CD button to enter the CD test mode.
Page 20: Diagrams
CX-LFAV500 SECTION 7 DIAGRAMS • Circuit Boards Location THIS NOTE IS COMMON FOR PRINTED WIRING For printed wiring boards. Note: BOARDS AND SCHEMATIC DIAGRAMS. • X : parts extracted from the component side. (In addition to this, the necessary note is printed •...
Page 21: Block Diagram - Bd Section
CX-LFAV500 7-1. BLOCK DIAGRAM – BD SECTION – OPTICAL PICK-UP IC101 BLOCK IC103 DIGITAL SERVO RF AMP DIGITAL SIGNAL PROC. RF AC RFAC +3.3V RFDC RFDC RFDCI PCMD PCMD I5-10 BCLK BCLK I1-6 LRCK LRCK Q101 SECTION DRIVE AVDD(3.3V) CLOK RV101 TE_BAL XTAI...
Page 22: Block Diagram - Vcd Section
CX-LFAV500 7-2. BLOCK DIAGRAM – VCD SECTION – IC801 IC601 (1/2) IC804 VCD MPEG PROCESSOR SYSTEM CONTROLLER DRAM Q805,806 AUX7 BUFFER I-CDDATA 2-4, 7-10, Q803,804 13-28 DBUS0-DBUS15 DQ0-DQ15 35-38, 40-43 AUX2 BUFFER I-CDACK 18-21, A0-A8 4-12 MA0-MA8 AUX6 O-CDSTB 24-28 IC803 O-CDDATA CASH...
Page 23: Block Diagram - Main Section
CX-LFAV500 7-3. BLOCK DIAGRAM – MAIN SECTION – IC301 Q214,216-220 R CH SOUND PROCESSOR Q223,225,229 J602 Q221,253 R CH POWER J781 AUX-L L-OUT PHONES AUX IN CD-L R-OUT R-CH Q261 R-CH TUNER-L MUTE CONT Q222 TAPE-L RECO-L OVERLOAD IC503 IC601(2/2) SELECTOR L-OUT SYSTEM CONTROLLER...
Page 24: Printed Wiring Board - Bd Section
CX-LFAV500 • : Uses unleaded solder. 7-4. PRINTED WIRING BOARD – BD SECTION – • See page 19 for Circuit Boards Location. • Semiconductor Location Ref. No. Location BD BOARD (COMPONENT SIDE) IC101 D-13 – BD BOARD IC102 F-12 (CONDUCTOR SIDE) IC103 M101 (SPINDLE)
Page 25: Schematic Diagram - Bd Section
CX-LFAV500 7-5. SCHEMATIC DIAGRAM – BD SECTION – • See page 19 for Waveforms. • See page 38 for IC Block Diagrams. R111 150k C116 (RFACI) RFAC C213 3300p RFSW C112 RF AMP, C109 FOCUS/TRACKING R311 ERROR AMP C119 R104 IC103 FB104 CXA2647...
Page 26: Printed Wiring Board - Vcd Section
CX-LFAV500 • : Uses unleaded solder. 7-6. PRINTED WIRING BOARDS – VCD SECTION – • See page 19 for Circuit Boards Location. • Semiconductor Location Ref. No. Location V-OUT BOARD VCD BOARD FRONT BOARD CN771 CN102 CN605 D301 (Page 34) (Page 23) (Page 32) D701...
Page 27: Schematic Diagram - Vcd Section (1/2)
CX-LFAV500 7-7. SCHEMATIC DIAGRAM – VCD SECTION (1/2) – • See page 19 for Waveforms. • See page 39 for IC Block Diagrams. R801 R802 4.7k 4.7k C803 C830 R832 4.7k R921 R922 R923 R804 C802 R925 R926 R927 R938 2.7k IC803 R939...
Page 28: Schematic Diagram - Vcd Section (2/2)
CX-LFAV500 7-8. SCHEMATIC DIAGRAM – VCD SECTION (2/2) – • See page 19 for Waveforms. R903 C904 R902 470 6.3V C902 220p C905 Q901 L901 2SA1162-G CN804 C909 C903 R853 470p 8.2k L801 10uH C820 C821 X801 R901 27MHz L802 V-OUT 1/10W C815...
Page 29: Printed Wiring Boards - Main Section
CX-LFAV500 7-9. PRINTED WIRING BOARD – MAIN SECTION – • See page 19 for Circuit Boards Location. MAIN BOARD • Semiconductor Location Ref. No. Location Ref. No. Location D201 Q217 D202 Q218 D203 Q219 VCD BOARD D204 Q220 TUNER CN806 Q221 D205 BLOCK...
Page 30: Main Section (1/3)
CX-LFAV500 7-10. SCHEMATIC DIAGRAM – MAIN SECTION (1/3) – • See page 19 for Waveforms. • See page 39 for IC Block Diagrams. MAIN BOARD (1/3) CN304 Q453 FFC 1.25MM L 2SC3266GR R459 FAN DRIVER C385 0.001 10.1 C387 0.001 R457 TUNER 2.2k...
Page 31: Main Section (2/3)
CX-LFAV500 7-11. SCHEMATIC DIAGRAM – MAIN SECTION (2/3) – MAIN BOARD (2/3) R248 R249 Q218, Q219, Q220, Q223, Q225 PRE AMP R251 Q214, Q216, Q217, Q229 D207 R250 4.7k PRE AMP MC2838 Q253 R256 2SD1933 POWER AMP 21.8 C236 0.47 R343 C352 R264...
Page 32: Main Section (3/3)
CX-LFAV500 7-12. SCHEMATIC DIAGRAM – MAIN SECTION (3/3) – IC503 MAIN BOARD (3/3) SELECTOR IC503 BU4052BCF-T1 R529 R531 4.7k C528 R530 R532 4.7k C529 0.22 C533 -4.8 R535 C535 IC504 R536 VOCAL FADER R537 R538 IC504(2/2) NJM14558MD-TE2 IC504(1/2) R542 NJM14558MD-TE2 R540 MAIN BOARD R541...
Page 33: Front Section
CX-LFAV500 7-13. PRINTED WIRING BOARD – FRONT SECTION – • See page 19 for Circuit Boards Location. FRONT BOARD • Semiconductor Location Ref. No. Location D601 D602 POWER STANDBY/ON D603 D604 FLUORESCENT INDICATOR TUBE D605 D606 IC601 IC602 D607 D608 TUNER/ D609 BAND...
Page 34: Schematic Diagram - Front Section
CX-LFAV500 7-14. SCHEMATIC DIAGRAM – FRONT SECTION – • See page 19 for Waveforms. • See page 40 for IC Block Diagram. • See page 41 for IC Pin Function Description. FRONT BOARD CN601 IC602 REMOTE CONTROL RECEIVER FL301 11-BT-193GNK FLUORESCENT INDICATOR TUBE C604 100p...
Page 35: Mic Echo/Jack Section
CX-LFAV500 7-15. PRINTED WIRING BOARD – MIC ECHO/JACK SECTION – • See page 19 for Circuit Boards Location. V-OUT BOARD • Semiconductor HP/MIC JACK BOARD Location Ref. No. Location D501 D771 D772 PHONES D781 VIDEO OUT D782 D783 D784 IC501 IC502 Q501 Q508...
Page 36: Mic Echo/Jack Section
CX-LFAV500 7-16. SCHEMATIC DIAGRAM – MIC ECHO/JACK SECTION – • See page 40 for IC Block Diagram. MIC/ECHO BOARD HP/MIC JACK BOARD IC501(2/2) C510 NJM14558MD- IC501(1/2) 0.1 50V IC501 NJM14558MD-TE2 R501 C502 C509 R503 R513 4.7k 0.22 MIC AMP 10 16V 2.2k C508 J501...
Page 37: Power Section
CX-LFAV500 7-17. PRINTED WIRING BOARD – POWER SECTION – • See page 19 for Circuit Boards Location. PT BOARD (SP,MY) AC VOLTAGE SUB POWER TRANSFORMER (TH) 120V POWER TRANSFORMER (MAIN) 220V 230V 240V HP/MIC JACK BOARD W781 (Page 34) MAIN BOARD 1-689-560- CN401 (Page 28)
Page 38: Schematic Diagram - Power Section
CX-LFAV500 7-18. SCHEMATIC DIAGRAM – POWER SECTION – PT BOARD PT801 POWER TRANSFORMER (MAIN) (SP,MY) CN802 S801 (TH) AC VOLTAGE RY801 HP/MIC JACK 120V BOARD W781 (Page 35) 220V PR801 Not replaceable : CN801 Built in transformer 230V - 240V PR802 (TH) MAIN...
Page 39 CX-LFAV500 • IC Block Diagrams – BD Board – IC103 CXA2647N-T4 IC101 CXD3068Q 60 59 58 55 54 53 52 50 49 48 46 45 44 43 42 41 ROM/RW DVDD2 DC OFST ASYE RFDCI – – RFDC TES1 – ROM/RW DOUT TEST...
Page 40 CX-LFAV500 – VCD Board – IC805 BH2220FVM-TR 8bit REG R-2R 8 LD 8bit REG SERIAL R-2R 7 CLK INTERFACE 6 DI 8bit REG R-2R 5 GND POWER ON RESET – MAIN Board – IC301 BD3881FV...
Page 41 CX-LFAV500 – FRONT Board – IC604 BA6956AN CONTROL LOGIC – MIC/ECHO Board – IC502 BU9262AFS N. C. DLYVOL 32 MIXIN TESTB 31 MICIN LOGIC INPUT CONTROL 30 VDD INPUT SERIAL SELECTOR CONTROL 29 LCIN CIRCUIOT 28 RCIN CLKO 27 FBOUT CLOCK CLKI 26 LCOUT...
Page 42: Ic Pin Function Description
CX-LFAV500 7-19. IC PIN FUNCTION DESCRIPTION IC601 LC876756C-52C1-E System Controller (FRONT Board) Pin No. Pin Name Description — Not used (open) — Not used (open) — Not used (open) T-SOL Solenoid control signal output to the tape deck T-END Tape deck reel switch signal input T-MTR.CONT Motor control signal output to the tape deck O-SHIFT...
Page 43 CX-LFAV500 Pin No. Pin Name Description R-CE Tuner chip enable signal output to the tuner O-VF-ON Vocal fader on/off control signal output E-XLT Latch signal output to the echo processor (IC502) E-DATA Data output to the echo processor (IC502) E-SQCK Clock output to the echo processor (IC502) VSS2 —...
Page 44: Exploded Views
CX-LFAV500 SECTION 8 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may • The mechanical parts with no reference number The components identified by mark 0 or have some differences from the original one. in the exploded views are not supplied. dotted line with mark 0 are critical for safety.
Page 45: Front Section
CX-LFAV500 8-2. FRONT SECTION supplied supplied supplied supplied supplied Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 4-245-227-01 WINDOW,DISPLAY 4-245-222-01 BUTTON,CD 4-238-631-01 TAPE SPRING 4-231-841-01 SPRING (HEART CAM-B) 4-247-757-01 SPR-T,CASS 4-242-318-01 OIL-DMPR, 70 4-245-233-01 KNOB VOL 1-796-351-51 MECHANISM, SINGLE CASSETTE 4-245-223-01 KNOB,B/T 4-245-225-01 PANEL,R...
Page 46: Chassis Section
CX-LFAV500 8-3. CHASSIS SECTION not supplied supplied supplied PT801 not supplied supplied not supplied not supplied Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 0 109 4-247-752-01 RUBBER, FOOT 1-769-744-52 CORD, POWER (SP,MY) 1-400-285-11 F-BEAD, E2515MRT 0 109 1-824-818-11 CORD, POWER (WITH CONNECTOR) (TH) 1-689-560-11 PT BOARD...
Page 47: Cd Mechanism Deck Section
CX-LFAV500 8-4. CD MECHANISM DECK SECTION not supplied not supplied M901 base unit (BU-30BD61S) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-674-336-12 LOADING BOARD 4-220-239-01 SPRING, TORSION 4-925-315-31 DAMPER 4-231-777-02 SHEET (KH2) 4-224-894-22 TRAY (CDM55D) 4-238-004-01 HOLDER (BU-30), BU 4-220-233-01 CAM (CDM55) 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING...
Page 48: Base Unit Section
CX-LFAV500 8-5. BASE UNIT SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-4733-498-A BD BOARD, COMPLETE (A) 4-236-304-02 SPRING (SLED), LEAF 1-782-817-11 WIRE (FLAT TYPE) (16 CORE) 3-372-761-01 SCREW (M1.7), TAPPING 0 203 A-4735-189-A BU-30(61)ASSY The components identified by mark 0 or dotted line with mark 0 are critical for safety.
Page 49: Electrical Parts List
CX-LFAV500 SECTION 9 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the • RESISTORS When indicating parts by reference number, parts list may be different from the parts All resistors are in ohms. please include the board name. specified in the diagrams or the components METAL: metal-film resistor used on the set.
Page 50 CX-LFAV500 FRONT Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R117 1-216-852-11 METAL CHIP 390K 1/16W R317 1-216-864-11 METAL CHIP 1/16W R118 1-216-833-11 METAL CHIP 1/16W R318 1-216-864-11 METAL CHIP 1/16W R120 1-216-846-11 METAL CHIP 120K 1/16W R122 1-216-845-11 METAL CHIP...
Page 51 CX-LFAV500 FRONT Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks C651 1-164-085-11 CERAMIC 0.001uF 10.00% 50V JR701 1-216-296-11 SHORT CHIP C652 1-164-156-11 CERAMIC CHIP 0.1uF JR702 1-216-296-11 SHORT CHIP JR703 1-216-864-11 METAL CHIP 1/16W C653 1-126-964-11 ELECT 10uF 20.00% 50V C654...
Page 52 CX-LFAV500 FRONT Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R641 1-216-845-11 METAL CHIP 100K 1/16W R702 1-249-417-11 CARBON 1/4W F R642 1-216-845-11 METAL CHIP 100K 1/16W R703 1-216-837-11 METAL CHIP 1/16W R643 1-216-845-11 METAL CHIP 100K 1/16W R704...
Page 53 CX-LFAV500 FRONT HP/MIC JACK LOADING MAIN Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks < VIBRATOR > C222 1-164-245-11 CERAMIC CHIP 0.015uF 10.00% 25V C223 1-165-621-91 CERAMIC CHIP 0.1uF X601 9-300-001-87 VIB,XTAL 32.768kHz CFS-308 CT C224 1-165-621-91 CERAMIC CHIP 0.1uF X602...
Page 54 CX-LFAV500 MAIN Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks C351 1-126-794-11 ELECT 4.7uF 20.00% 50V C637 1-216-864-11 METAL CHIP 1/16W C352 1-126-956-91 ELECT 0.1uF 20.00% 50V C802 1-164-156-11 CERAMIC CHIP 0.1uF C353 1-126-956-91 ELECT 0.1uF 20.00% 50V C803 1-164-156-11 CERAMIC CHIP...
Page 55 CX-LFAV500 MAIN Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks < FERRITE BEAD > Q254 6-550-295-01 TRANSISTOR 2SD1933 Q261 8-729-230-49 TRANSISTOR 2SC2712-G FB201 1-412-473-21 INDUCTOR Q262 8-729-230-49 TRANSISTOR 2SC2712-G FB202 1-410-396-41 FERRITE 0.45uH Q263 8-729-216-22 TRANSISTOR 2SA1162-G FB301 1-216-864-11 METAL CHIP...
Page 56 CX-LFAV500 MAIN Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R232 1-216-837-11 METAL CHIP 1/16W R301 1-216-842-11 METAL CHIP 1/16W R233 1-216-837-11 METAL CHIP 1/16W R302 1-216-829-11 METAL CHIP 4.7K 1/16W R303 1-216-845-11 METAL CHIP 100K 1/16W R234 1-216-841-11 METAL CHIP...
Page 57 CX-LFAV500 MAIN MIC/ECHO Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R368 1-216-828-11 METAL CHIP 3.9K 1/16W R532 1-216-829-11 METAL CHIP 4.7K 1/16W R369 1-216-821-11 METAL CHIP 1/16W R533 1-216-857-11 METAL CHIP 1/16W R370 1-216-835-11 METAL CHIP 1/16W R534 1-216-857-11 METAL CHIP...
Page 58 CX-LFAV500 MIC/ECHO V-OUT Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks C526 1-162-970-11 CERAMIC CHIP 0.01uF 1-689-560-11 PT BOARD C527 1-162-970-11 CERAMIC CHIP 0.01uF ********* C528 1-164-156-11 CERAMIC CHIP 0.1uF C529 1-164-156-11 CERAMIC CHIP 0.1uF < CAPACITOR > C554 1-115-414-11 CERAMIC CHIP 820PF...
Page 59 CX-LFAV500 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks A-4734-927-A VCD BOARD, COMPLETE C830 1-164-360-11 CERAMIC CHIP 0.1uF C831 1-126-961-11 ELECT 2.2uF 20.00% 50V ******************** C834 1-164-360-11 CERAMIC CHIP 0.1uF < CAPACITOR > C835 1-164-360-11 CERAMIC CHIP 0.1uF C836 1-124-589-11 ELECT...
Page 60 CX-LFAV500 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks IC802 8-759-832-55 IC ES3889 R815 1-216-809-11 METAL CHIP 1/16W IC803 6-803-452-01 IC HT27C020(DO) R816 1-216-809-11 METAL CHIP 1/16W IC804 6-703-603-01 IC GLT44016-30TC R817 1-216-809-11 METAL CHIP 1/16W R818 1-216-156-00 RES-CHIP 1/8W...
Page 61 CX-LFAV500 Ref. No. Part No. Description Remarks MISCELLANEOUS ************** 1-693-620-11 TUNER (FM/AM) 1-400-285-11 F-BEAD, E2515MRT 1-828-004-11 WIRE (FLAT TYPE) (23 CORE) 1-763-697-21 DC FAN 1-796-351-51 MECHANISM, SINGLE CASSETTE 1-400-285-11 F-BEAD, E2515MRT 1-823-669-11 WIRE (FLAT TYPE) (11 CORE) 0 109 1-769-744-52 CORD, POWER (SP,MY) 0 109 1-824-818-11 CORD, POWER (WITH CONNECTOR) (TH) 1-782-817-11 WIRE (FLAT TYPE) (16 CORE)
Page 62 CX-LFAV500 MEMO...
Page 63 CX-LFAV500 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 2003.08...
Page 64 SX-LFAV500 SERVICE MANUAL E Model Ver 1.0 2003. 08 • SX-LFAV500 is the speaker system in XR-FAV500. SPECIFICATIONS EXPLODED VIEWS AND PARTS LIST Speakers system 2 way, bass-reflex type (magnetic shielded) Speaker units Woofer: 120 mm cone type Tweeter: 30 mm balance dome type 6 Ω...
Page 65 SX-LFAV500 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 2003.08...
