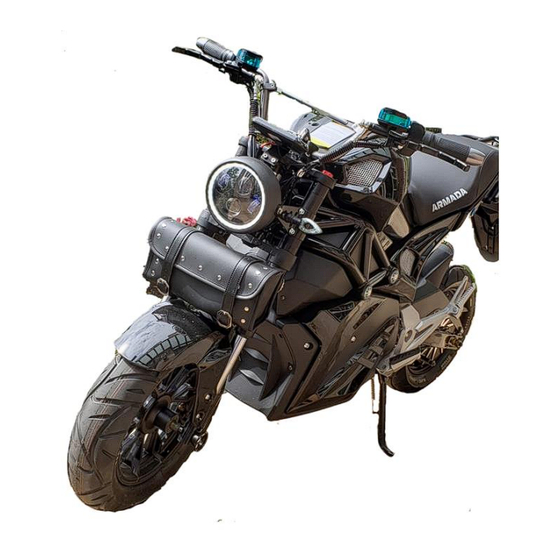

Summary of Contents for ARMADA SCOOTERS Nemesis
- Page 1 ELECTRIC BIKE OWNER’S MANUAL Ltd. E-BIKE MODEL/COLOR: Armada Nemesis/ SERIAL NUMBER: PURCHASE DATE:...
-
Page 2: Table Of Contents
OWNER’S MANUAL TABLE OF CONTENTS 1. E-Bike Parts Diagram 2. Essentials of Safely Driving an E-Bike Battery Helmet Lights Brakes Tires Carrying Capacity Appropriate Riding Gear Electrical Care Security 3. Operational Instruction Start Up Parking Charging 4. Maintenance and Care Battery type and care Handling the battery Distance and power... -
Page 3: E-Bike Parts Diagram
OWNER’S MANUAL 1. E-BIKE PARTS DIAGRAMS: Brake Oil Brake Oil LED Digital Display Rt Brake lever Throttle Lt Brake lever 3 speed switch Light switch Horn Horn Reverse Speed High beam/low beam Key Ignition Lt/Rt Turn Signal Battery Gauge Speedometer Battery Port Lt Turn Signal Rt Turn Signal... -
Page 4: Essentials Of Safely Driving An E-Bike
OWNER’S MANUAL 2. ESSENTIALS OF SAFELY DRIVING AN E-BIKE: Before embarking on your E-Bike, it’s important to check the following for safety: 2.1 BATTERY: Check the battery level on the LCD digital display monitor before going on a long ride (30-60km). -
Page 5: Operational Instruction
OWNER’S MANUAL 3. OPERATION INSTRUCTION: 3.1 STARTING UP: Drive in ideal conditions for optimal E-Bike performance. a. Make all safety checks on battery level, both break levers, both right and left turn signals, horn, and headlight. Check and tighten any bolts and nuts. Adjust mirrors for proper visibility. b. -
Page 6: Maintenance And Care
OWNER’S MANUAL • Avoid dropping the charger. The battery charger should be regularly examined for damage to the cord, plug, enclosure and other parts. In the event of such damage, if any is found, the E-Bike should not be charged until the battery charger has been repaired or replaced. •... -
Page 7: Effects Of Temperature
OWNER’S MANUAL 4.4 EFFECTS OF TEMPURATURE: Temperature plays a critical role in the battery performance and life cycle. At higher temperatures, battery capacity generally increases; as the temperature drops, so does the capacity. This is why riding your E-Bike at 20 degrees Celsius will give you better performance and range than riding at 5 degrees Celsius. -
Page 8: Regular Maintenance Time Table
OWNER’S MANUAL 4.8 REGULAR MAINTENANCE TIME TABLE: A-check, adjust, replace when necessary, L-Lubricate, C-Clean Items Travel Mileage (KM) 200km 1000km 3000km 5000km 8000km 10,000km 12,000km All bolts & nuts Tires Wheel bearing Lubrication of all position Motor bearing Ft & Bk braking block Ft &... - Page 9 OWNER’S MANUAL 5. GENERAL TECHNICAL INFO – TROUBLE SHOOTING: Q. Why won't my Electronic Vehicle turn on? There is no lights or power when I turn the key switch? • Check the main power switch also known as circuit breaker or main breaker. •...
- Page 10 OWNER’S MANUAL Q. What should my battery voltage reading be when it is full? • It is recommended for all Electronic Vehicle owners to have a multimeter to read the voltage. • For 48V bikes the voltage range when full is typically around 52V-53V •...
