Summary of Contents for AboLife M15

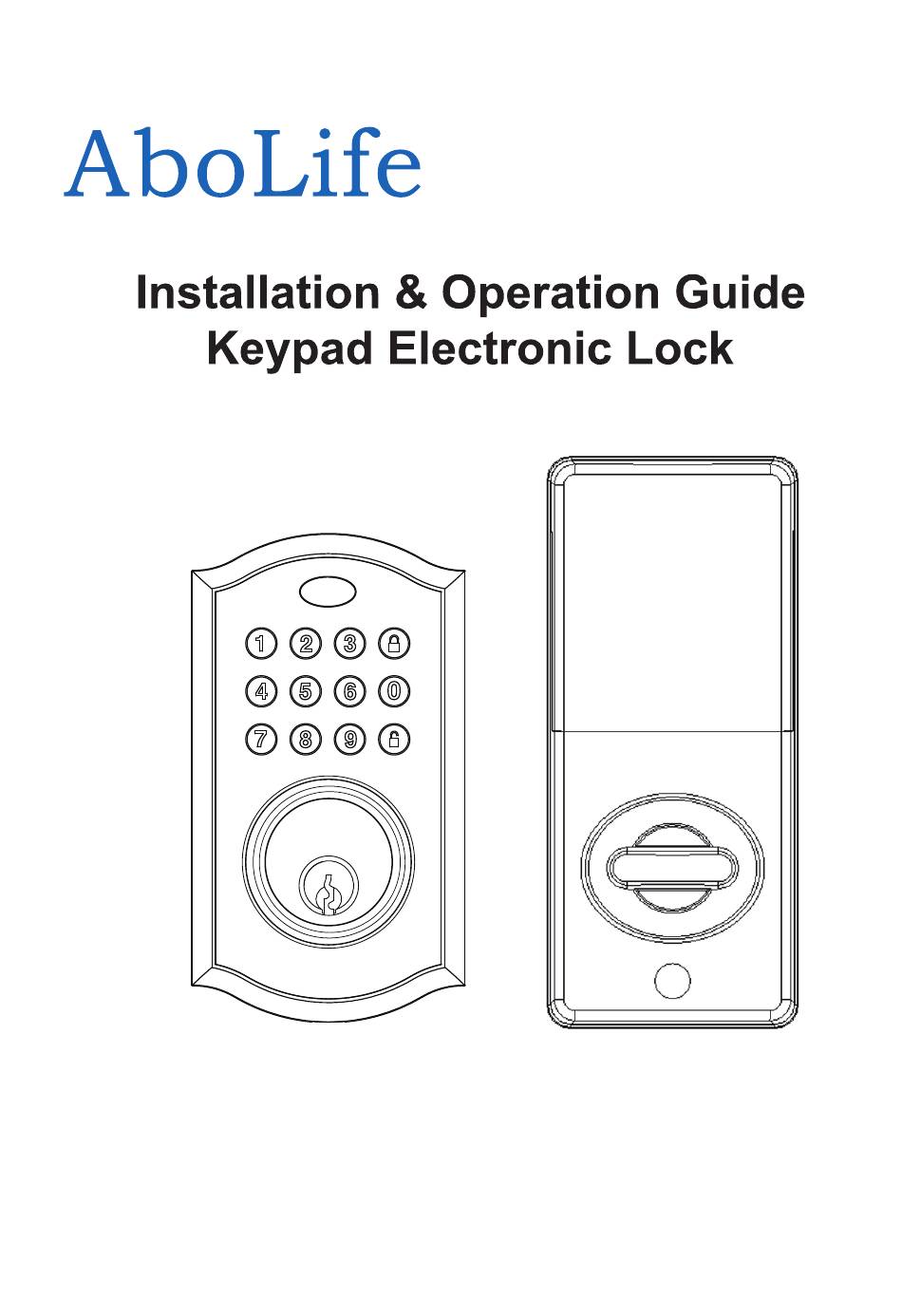

- Page 1 Model: M15 Customer Support: Email:support@abolife.tools...
- Page 2 Customer Support Email:support@abolife.tools Quick start tip: Our customer support team is providing video call guide service now,which will guide you to complete the lock installation and setups in minutes. Feel free to email us at support@abolife.tools to schedule your video call.
- Page 3 Customer Support Email:support@abolife.tools Prepare the door and check dimensions If drilling a new door, use the supplied template and the complete door drilling instructions 60 or 70 mm 54 mm Measure to confirm the thickness of the door is the door edge is 1" (25 mm).
- Page 4 Customer Support Email:support@abolife.tools Install the latch and strike 1 . Insert the latch bolt into the door. Make sure t he T-shaped hole is in the bottom position. Twist the latch and adjust the bolt length. No adjustment is required.
- Page 5 Customer Support Email:support@abolife.tools Install the exterior assembly cable Route the cable through the door below The key must be pulled out when installing. the bolt.and push the keypad onto the door.
- Page 6 Customer Support Email:support@abolife.tools Install the interior assembly 1. Take off the mounting plate. Mounting plate Loose the 2 screws 2. Route cable through the 3. Tighten screws evenly. bottom of mouting plate. Note: please support exterior assembly during mounting plate installation.
- Page 7 Customer Support Email:support@abolife.tools Install the batteries and perform the door handing process Note:Do not use rechargeable batteries or Non-alkaline batteries. 1.Install 4 AA batteries in battery pack. T he batteries are not included. 2. Perform the door handing process. 1. Press ,the latch bolt extends by itself.
-
Page 8: Factory Default Settings
Setting button Quick start tip: Our customer support team is providing video call guide service now,which will guide you to complete the lock installation and setups in minutes. Feel free to email us at support@abolife.tools to schedule your video call. - Page 9 Customer Support Email:support@abolife.tools the keypad will be locked 90 seconds exited 90 seconds for more than 5 seconds A factory reset will delete all codes associated with the lock. O pen t he bat t ery c over. blue Keep press holding set button more than 5 seconds until the lock short beeps 5 times and light flash blue 5 times.
- Page 10 Customer Support Email:support@abolife.tools 1. For your safety, please change and remember your programming code in time. programming Remove the battevy cover,and Press the set button 1 time. then the keypad will be light on. now the lock is in programming mode.
-
Page 11: Delete All User Codes
Customer Support Email:support@abolife.tools Add new use code digits 6-10 2 digits RE-NEW Delete User code Make sure you have more than 1 user code or else you can not delete it. 2 digits Delete All User codes... -
Page 12: Set Auto Lock
Customer Support Email:support@abolife.tools Set Auto Lock: 5-30 Time Cancel Auto Lock Sound On and Off 1 or 2... -
Page 13: System Alerts
Customer Support Quick start tip: Our customer support team is providing video call guide service now,which will guide you to complete the lock installation and setups in minutes. Feel free to email us at support@abolife.tools to schedule your video call. - Page 14 Customer Support Email:support@abolife.tools...
- Page 15 Customer Support Email:support@abolife.tools...
- Page 16 Customer Support Email:support@abolife.tools...
