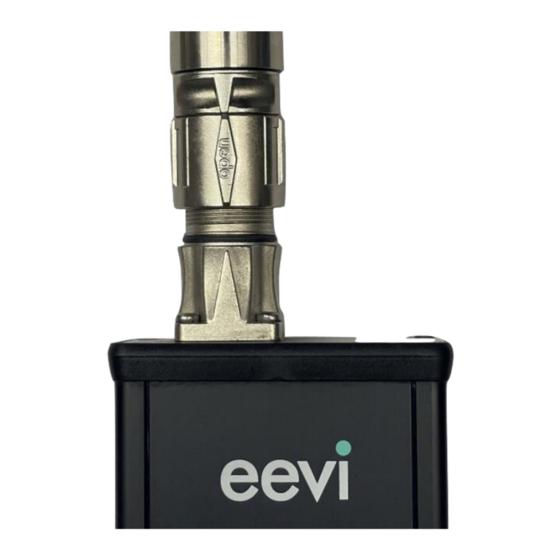

- Page 1 Instruction manual Mobile charging station Eevi Pro 22 kW...
-
Page 2: Table Of Contents
Contents Instruction manual About this manual Safety 2.1. Warning 2.2. General considerations Purpose of use of the device Use and indicators 4.1. Changing the charging current setting 4.2. Meaning of LED lights, error states 4.3. Use of adapter connectors 4.4. Precautions and precautions related to use Protective devices Cleaning and maintenance... -
Page 3: About This Manual
1. About this manual This manual is intended for users of the Eevi charger. Reading the operating instructions is a prerequisite ● for the safe and correct use of the device. The operating instructions must be read carefully ● before installing and using the appliance. Keep this User Manual in a safe place for future ●... -
Page 4: Safety
2. Safety 2.1. Warning Risk of electric shock! There is a dangerous ● voltage inside the appliance (400 V). Never open the housing! Only persons with electrical qualifications ● may service or repair the appliance. When disconnecting the appliance from the ●... - Page 5 Cleaning the appliance with a jet of water ● or a high-pressure washer is prohibited. If you discover damage to the Eevi Pro ● charger and/or its components during operation, disconnect the device from the mains power immediately by switching off the main circuit breaker and contact the service centre Never use the device with the cables...
-
Page 6: Purpose Of Use Of The Device
3. Purpose of use of the device The Eevi Pro 22 kW Mobile charging station is intended for charging electric cars and plug-in hybrids with type2 socket. Eevi Pro adapters can be connected to the device to charge your car from almost any European power socket The charging cable is adjustable between 8A amps and 16 or 32 amps depending on the adapter. -
Page 7: Meaning Of Led Lights, Error States
The charger indicates the charging status with colored ● LEDs: Flat Green = Standby Flat Yellow = Charging In Progress Flat red = charging error After connecting the charger, the LED should light up ● red for approximately two seconds, after which the charger will enter standby mode. -
Page 8: Use Of Adapter Connectors
4.3. Use of adapter connectors The Eevi Pro 22 kW charger enables charging the car from a variety of sockets, including standard household outlets (schuko), caravan socket (blue 16A cee) and various industrial connections (three-phase 5-pin CEE connectors 16A and 32A). - Page 9 Connect the adapter connector to the device so that the "open" text is towards you and aligned with the arrow on the side of the charger. Push the adapter connector all the way and turn the connector counterclockwise by 90 degrees.
-
Page 10: Precautions And Precautions Related To Use
4.4. Precautions and warnings related to Despite the overheating protection and residual current protection, the user must ensure the safety of the charging site. Only use correctly installed, properly grounded power ● sockets fitted with neutral conductors. The physical condition of the socket used for charging ●... -
Page 11: Protective Devices
5. Protective devices The Eevi Pro mobile charging station is internally protected against fault currents. The power plug and electronics have overheating protectors that stop the charging process if the connector or electronics overheat The Eevi charger always performs self-testing when it is switched on. -
Page 12: Malfunctions And Faults
7. Malfunctions and faults Symptom Possible cause Corrective action The indicator 1) The internal residual 1) Check that the light is flat red. current protection of connectors are dry. the device cannot reset Take the cable into a properly warm room for 24 hours, then connect to 2) Problem the power supply for a... - Page 13 Symptom Possible cause Corrective action The indicator Overvoltage. Overvoltage from the light is blinking power socket. Try the red. operation of the charger in another location. If 4 quick flashes. necessary, check the voltage of the power socket with an authorised electrical contractor.
-
Page 14: Limited Warranty
8. Limited warranty The cable is covered by a manufacturer's 2-year warranty for manufacturing defects. The warranty period starts at the time of purchase. Warranty claims must be made during the warranty period as soon as the defect is identified. During the warranty period, the defective device will be repaired or replaced at our discretion. -
Page 15: Repairs
A processing fee will be charged for shipped devices that do not have any defects covered by warranty and that the client wishes not to have repaired. Manufacturer R-EVC s.r.o. Mokrá 348, Brno-venkov 664 04 Czech Republic Warranty issues in the EU Atonos Oy Asentajankatu 3, 33840 Tampere sales@atonos.com...
