alienXS ALIEN214 User Manual

4 channel networkable dvr with mouse & ir remote
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

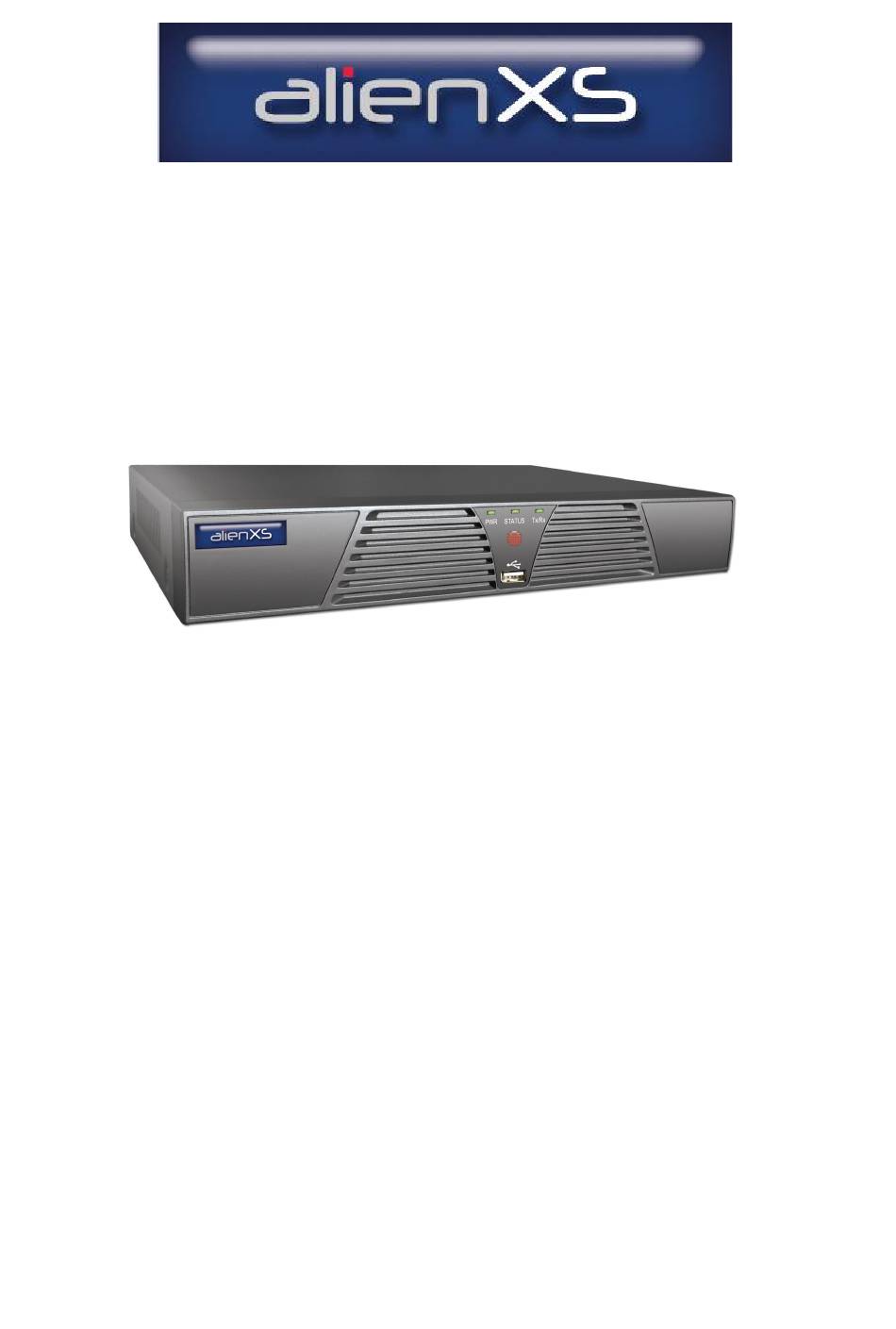

ALIEN214
USER MANUAL
4 Channel networkable DVR with mouse & IR remote
Recording resolution CIF/2CIF/4CIF all at 25fps
Substream QCIF 25fps – CIF 6fps
4 Audio inputs and 1 output
2 x USB and 1 Hard Drive bay
Small size 315(W) x 230(D) x45(H)mm
VERSION 1.0
1
Last Revised 06/02/2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALIEN214 and is the answer not in the manual?

Questions and answers

Summary of Contents for alienXS ALIEN214

  • Page 1 ALIEN214 USER MANUAL 4 Channel networkable DVR with mouse & IR remote Recording resolution CIF/2CIF/4CIF all at 25fps Substream QCIF 25fps – CIF 6fps 4 Audio inputs and 1 output 2 x USB and 1 Hard Drive bay Small size 315(W) x 230(D) x45(H)mm VERSION 1.0...
  • Page 2 Regulatory Information EU Conformity Statement This product complied with the European standards listed under the Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC. This symbol on the products and/or accompanying documents means that used electronic equipment must not be mixed with general household waste.

  • Page 3: Table Of Contents

    CONTENTS Introduction 1.1 Overview 1.2 Product Features 1.3 Operating Tour DVR 1.4 Using IR Remote Control 1.5 Using a USB Mouse 1.6 Using the Soft Keyboard 1.7 Rear Panel Getting Started 2.1 Starting and Shutting Down Your DVR 2.2 Rebooting and Locking Your DVR 2.3 Using the Setup Wizard 2.4 Setting Date &...
  • Page 4 12.7 Restore Default Settings 12.8 Viewing System Information 12.9 Viewing System Log 13. Appendix 13.1 Glossary 13.2 FAQ 13.3 1fps background recording switching to 25fps in CIF 13.4 Record Timings for Alien214 13.5 Frame Rate Settings and TCP Connections for Alien214 14. Specifications...

  • Page 5: Introduction

    The DVR can be used as a standalone video surveillance product or as part of a powerful surveillance network making it is perfect for home or small business applications. ALIEN214 1.2 Product Features Compression PAL/NTSC adaptive video inputs.
  • Page 6 PTZ control mode. Hard Disk Management Connection to 1 x SATA hard drive for ALIEN214 - 4 channel DVR and 2 x SATA hard drives for 8 and 16 channel models each with 2TB storage capacity per hard drive. S. M. A. R. T technology.
  • Page 7 Network 10M / 100M adaptive network interface. TCP/IP protocol suites, PPPoE, DHCP, DNS, DDNS, NTP, SADP protocols, etc. Unicast and multicast supported; TCP and UDP protocols applicable in unicast transmission. Remote search, playback and download, lock/unlock of video files. Remote access and configuration of parameters; remote import/export of device configuration parameters.

  • Page 8: Operating Tour Dvr

    There are numerous ways to navigate and operate your DVR. You may use the Front Panel Controls, the IR (Infrared) Remote, a Mouse or a Keyboard. ALIEN214 range 1. Status Indicators: POWER: POWER indicator turns green when DVR is powered up.

  • Page 9: Using A Usb Mouse

    Aim the remote control at the IR receiver located at the front of the unit to test operation. If there is no response: Using the front control panel or the mouse, go into Menu > Settings > General > More Settings. Check and remember DVR ID#.

  • Page 10: Using The Soft Keyboard

    1.6 Using the Soft Keyboard When a mouse is used to perform task on the DVR, clicking on a text input field will bring up the Soft Keypad, shown in Figure 15. Figure 15. Soft Keypad The buttons on the soft keyboard represents: Lowercase: Designates lowercase input is being used.

  • Page 11: Rear Panel

    1.7 Rear Panel Figure 17. ALIEN214 Rear Panel Item Description VIDEO IN BNC connectors for analog video input VIDEO OUT VIDEO OUT1 is main video out, and VIDEO OUT2 is spot video out AUDIO IN RCA connectors for analog audio input...

  • Page 12: Getting Started

    2. Getting Started 2.1 Starting and Shutting Down Your DVR Proper startup and shutdown procedures are crucial to expand the life of your DVR. To start your DVR: 1. Please make sure the input voltage meets the requirements of the DVR. 2.

  • Page 13: Using The Setup Wizard

    2.3 Using the Setup Wizard NOTE: If the DVR has been installed with a Hard Drive before access to the Setup Wizard there is no need to run the Setup Wizard. Just click on Cancel. By default, the Setup Wizard will start once the DVR has loaded, as shown in Figure 3.
  • Page 14 Figure 4. User Permission 2. Navigate to the Admin Password text box. 3. Type the admin password into the Admin Password text box. By default, the password is 12345. 4. To change the admin password, check the New Admin Password checkbox.
  • Page 15 Figure 6. Record Settings 10. To access Record Settings interface, click the Enter button. 11. Select the Schedule tab, shown in Figure 7. Figure 7. Schedule Settings 12. Click Edit button to enter a new recording schedule, shown in Figure 8. 13.

  • Page 16: Setting Date & Time

    14. Click the OK button. This will take you back to the Schedule tab. To copy the schedule to a different channel, select the channel or all under Copy To and click the Copy button. 15. Click Next button to access the Network Settings dialogue box, shown in Figure 9.
  • Page 17 Figure 10. General Settings 4. Enter the correct date and time in System Time. 5. Click the Apply button to save the setting.

  • Page 18: Live Preview

    3. Live Preview The Live Preview mode is automatically started after the DVR boots up. It is also at the very top of the menu hierarchy, thus hitting the ESC multiple times (depending on which menu you’re on) will bring you to the Live Preview mode. 3.1 Live Preview Icons Some icons are provided on screen in Live Preview mode to indicate different camera status.

  • Page 19: Mouse Operation In Live Preview

    3.3 Mouse Operation in Live Preview Some functions of the Live Preview can be quickly accessed by clicking the right-button of the mouse (shown in Figure 2). These functions include: Single Camera: Switch to a full-screen display of the selected camera •...

  • Page 20: Configuring Live Preview Display

    Main CVBS. Mode: Set the live view display mode to be 1×1, 2×2, 3×3, or 4×4 • dependent on model purchased. (Alien214 only 1x1 and 2x2) Dwell Time: Set the dwell time for camera switching when Start • Auto-switch is selected in Live Preview.

  • Page 21: Setting Camera Order

    front panel to switch the camera display. 4. The connection or disconnection of VGA display during DVR processing will not affect its functions as shown above. 3.6 Setting Camera Order The Camera Order settings allow you to set camera sequence in selectable live view display mode.

  • Page 22: Record Settings

    4. Record Settings There are multiple ways to setup your DVR for recording. They include setting up a recording schedule, triggering a recording by motion detection and/or a sensor alarm, and manually starting the recording. 4.1 Before setting Record Settings Before configuration, please make sure you have installed an HDD and it has completed its initialisation, otherwise, access Menu >...
  • Page 23 Figure 2. More Record Settings Pre-Record: Set the time in seconds to pre-record before the actual • recording begins (for Motion or Alarm recording) Post-Record: Set the time in seconds to post-record after the actual • recording has ended (for Motion or Alarm recording) Recording Expired Time: Set the expiration time in days for recorded •...

  • Page 24: Scheduling Recording

    4.3 Scheduling Recording The Schedule allows you to set up flexible recording schedules for daily or weekly recording. To set up a recording schedule: 1. Click Menu > Settings > Record to enter the Record Settings menu. 2. Select the Schedule tab to enter the Schedule shown in Figure 4. Figure4.

  • Page 25: Starting A Manual Recording

    4.4 Starting a Manual Recording NOTE: Manual Recording overrides the Schedule and should not be used for continuous recording as high settings are used and hard drive resource will quickly be used. This option is for emergency recording when schedules may not be set for recording or resolution settings may be set too low.

  • Page 26: Setting Hdd To Read-Only

    Figure 6. Video Search Menu 2. Search for desired recording by entering search parameters. Search parameters include Camera ID, Video/File Type, and Start/End Time. 3. Click the Search button. A list of record files (see Figure 7) matching the search parameters will be displayed. 4.
  • Page 27 Figure 8. HDD Management Menu Select the General tab. Select the HDD to set to read-only. Click the Property button to enter the Property Settings box shown in Figure 9. Figure 9. HDD Property Settings Menu 5. Set HDD Status to Read-only and then click OK to finish the settings. Note: 1.

  • Page 28: Playback

    5. Playback Video Playback The Client application allows all users to playback recorded files within a specified period. Multi-camera simultaneous playback is supported. 5.1 Playback Interface Multiple toolbar and buttons are provided on the playback interface to control the video playback. Refer to the following figure: 16-11-2009 Mon 11:55:19 Playback Panel Playback...

  • Page 29: Playback By Search

    5.2 Playback by Search To play back record files by video search: 1. Enter the Video Search menu by clicking Menu > Video Search. 2. Set the search parameters by selecting cameras to search, video/file type and the start/end time (as shown in Figure 3). Figure 3.

  • Page 30: Playback In Live Preview Mode

    5.3 Playback in Live Preview Mode The Client application also allows you to playback recorded files in Live Preview mode. To play back by channel in Live Preview mode: • By Using a Mouse: 1. Right-click the mouse on desired channel and select the Playback option.

  • Page 31: Playback By System Log

    5.4 Playback by System Log To play back video from the System Log: 1. Click Menu > Maintenance > Log Search to enter the Log Search menu shown in Figure 6. Figure 6. Log Search Menu 2. Set Major Type to Information; set Minor Type to Start Record or End Record and then select the Start Time and End Time as well.
  • Page 32 Figure 7. Digital Zoom in Playback Mode...

  • Page 33: Backup

    6. Backup Backing up Recorded Files Recorded files can be backed up to various devices, such as USB flash drives, USB HDDs or a DVD writer. 6.1 Exporting Files To export record files: Click Menu > Video Export to enter the Record Backup menu, shown in Figure 1.
  • Page 34 The size of the currently selected files is displayed at the lower-left corner of the window. Click the Next button to enter the Export menu, shown in Figure 3. Figure 3. Export Menu Select device to which the record file is exported from drop-down list (USB Flash Drive, USB HDD, DVD Writer).

  • Page 35: Exporting Video Clips

    Figure 5. Export Successful Screen Note: Video Player software will automatically be copied onto the device that the recorded files were exported to. 6.2 Exporting Video Clips You may also select video clips to export directly in Playback status. A maximum of 30 clips can be selected for each channel.

  • Page 36: Managing Backup Devices

    Repeat for additional clips. Press the ESC button to exit from the Playback interface. You’ll then be prompted to save the clips, as shown in Figure 6. Click the Yes button to enter Backup interface or select No to exit Playback interface.

  • Page 37: Alarm Settings

    7. Alarm Settings Configuring Alarms 7.1 Motion Detection Alarm Operate the following steps to configure Motion Detection Recording: Enter Camera Settings: Click Menu > Settings > Camera to access the Camera Settings menu, as shown in Figure 1. Figure 1. Camera Management Interface Select the Advanced tab to enter the Advanced Camera Settings menu, shown in Figure 2.
  • Page 38 As shown in Figure 3, the Motion Detection area allows you to mask areas you want to configure for motion detection. The maximum area can be set to be full screen. You can left click mouse, hold and drag it to mask the Motion Detection area.
  • Page 39 Figure 5. Triggered Camera Settings Select cameras to trigger for recording when motion is detected by checking the checkboxes under the desired cameras. 10. Select the Schedule tab. Set the schedule you want motion detection to be enabled. Schedule can be set for all week or any day of the week with up to 8 time periods per day.

  • Page 40: Sensor Alarm Settings

    12. Click OK to complete motion settings for the selected camera. You may now add a schedule to start recording when motion is detected (See Scheduling Recording). 7.2 Sensor Alarm Settings Recordings can also be triggered from an external relay alarm device. To set up sensor alarms: 1.
  • Page 41 3. Set the alarm input type to be Normally Opened (N.O) or Normally Closed (N.C). 4. Check the checkbox next to Setting and click the Handle button to enter the Alarm Input Handle menu. 5. Select the Triggered Camera tab. 6.

  • Page 42: Manual Alarm Triggering

    Select the output you would like to configure and click the Set button. This will bring up the settings page for the selected channel (Figure 12). Figure 12. Alarm Output Settings Configure the settings for selected output. Select OK to save and exit. Note: If the Hold For option is selected as Manually Stop, the alarm will only stop when you manually stop it (See Triggering Alarm Outputs Manually).

  • Page 43: Video Loss Detection

    Configure the following settings in the Manual Alarm menu: • Trigger: Select an alarm from the list and click Trigger to trigger its output. • Trigger All: Trigger all alarm outputs at once. • Clear All: Stop all alarm outputs at once. Select OK to return to the previous menu.
  • Page 44 Click the Handle button to enter the Exception Handle menu, shown in Figure 16. Select the Schedule tab. Set the schedule you want video loss detection to be enabled. Schedule can be set for all week or any day of the week with up to 8 time periods per day.

  • Page 45: Video Tampering Detection

    7.5 Video Tampering Detection The video tampering can also be detected and set to trigger an action on your DVR. Note: The video tampering detection area is in full-screen mode by default and cannot be configured. To set up video tempering detection: Click Menu >...

  • Page 46: Exception Settings

    Figure 20. Schedule Settings for Video Tampering Detection Select the Handle tab to configure exceptions handling. Exception trigger options will be described in the next section (See Understanding Exception Trigger Options). Figure 21. Exception Handle Menu Click OK to finish the settings. Repeat above steps to configure settings for other channels.

  • Page 47: Understanding Exception Trigger Options

    To set exceptions: Click Menu > Settings> Exception to enter the Exception menu. Select the exception to configure under Exception Type. Select triggering options, as shown in Figure 22. Trigger options are further explained in the next section (See Understanding Exception Trigger Options).

  • Page 48: Network Settings

    Network Settings Configuring Network Settings Network settings must be configured if DVR is used for monitoring over network. 8.1 Configuring General Settings To configure general network settings: Click Menu > Settings > Network to enter the Network Settings menu, shown in Figure 1. Figure 1.

  • Page 49: Configuring Pppoe Settings

    If you want to configure your own settings, enter the settings for: IP Address: IP address you would like to use for your DVR. • Subnet Mask: Subnet Mask of network. • Default Gateway: IP address of your Gateway. Typically the IP •...

  • Page 50: Configuring Ddns

    Click the Set button next to PPPOE to enter PPPoE Settings menu, shown in Figure 5. Figure 5. PPPoE Settings Check the PPPOE checkbox to enable this feature. Enter User Name, Password, and Confirm Password for PPPOE access. PPPOE credentials can be obtained from your network administrator.

  • Page 51: Configuring Ntp Server Settings

    Figure 6. DDNS Settings Menu Check the DDNS checkbox to enable this feature. Select DDNS Type. Three different DDNS types are selectable: IpServer, PeanutHull and DynDNS. IpServer: Enter Server Address for IpServer. Refer to Figure 6. • PeanutHull: Enter User Name and Password obtained from the •...

  • Page 52: Configuring Remote Alarm Host Settings

    Figure 8. NTP Settings Menu Check the NTP checkbox to enable this feature. Configure NTP settings: Synchronize Interval: Time in minutes to synchronise with NTP • server. NTP Server: Address of NTP server (IP address or Domain name) • Note: When the Domain name is used, please set the DNS server address. Click OK to save settings and exit the NTP Settings menu.

  • Page 53: Configuring Multicast

    Enter Alarm Host IP and Alarm Host Port. Alarm Host IP is the IP of the remote PC which has the software installed. The Alarm Host Port must be the same as software’s alarm monitor port (default port is 7200). 8.6 Configuring Multicast Setting up multicasting solves limitation issues when streaming videos through a network access device.
  • Page 54 Figure 11. Host/Others Menu Note: The Server Port has a port range of 2000-65535 and is used for remote client software access. The HTTP port is used for remote Internet browser access.

  • Page 55: Ptz Control

    PTZ Control 9.1Navigating PTZ Menu PTZ menus can be navigated through with either the mouse or the front panel/remote. For quick access to certain PTZ settings, right clicking with the mouse in a display while in PTZ control mode will enter the PTZ settings menu. This menu is shown in Figure 1.

  • Page 56: Setting Ptz Presets, Patrols & Patterns

    Figure 2. PTZ Settings Menu Select channel where PTZ camera is installed next to Camera label. Configure the settings of baud rate, data bit, stop bit, parity, flow control, PTZ protocol and address. Click OK to save settings and exit the PTZ Settings menu. Note: All setting parameters (baud rate, data bit, stop bit, parity, flow control, PTZ protocol and address) must be consistent with the PTZ camera connected.

  • Page 57: Customising Presets

    Speed: Adjusts the movement speed of the PTZ. Light: Turns PTZ light (if applicable) on and off. Wiper: Turns PTZ wiper (if applicable) on and off. Zoom In: Instantly zooms PTZ in. Center: Centers PTZ. 9.3.1 Customising Presets Presets can be set to move your PTZ camera to a desired preset location. To set up and call custom PTZ presets: Enter the PTZ Control interface, shown in Figure 3, by selecting PTZ from the mouse menu or clicking the PTZ button on the front panel.
  • Page 58 To set up and call PTZ patrols: Enter the PTZ Control interface, shown in Figure 3, by selecting PTZ from the mouse menu or clicking the PTZ button on the front panel. Select the Patrol button to enter the Patrol Management menu, shown in Figure 5.

  • Page 59: Customise Patterns

    4. Click OK to return to Patrol Management menu and repeat steps 2-3 to configure other key points. 5. After all key points have been configured, click the defined key point No. and then click Add button to complete the settings. 6.
  • Page 60 Select a Pattern Number. To record a new pattern, select the Run Record button to start recording the movements of the PTZ. Use the PTZ control panel to move the PTZ. The PTZ movements will be recorded until the Stop Record button is clicked.

  • Page 61: Camera Management

    10. Camera Management OSD Settings On Screen Display (OSD) settings can be configured in the Camera Management menu. The OSD is shown in each display during Live Preview mode and includes the time and date as well as the camera name. To configure OSD settings: Click Menu >...

  • Page 62: Privacy Mask Settings

    Figure 3. Display Settings 10.2 Privacy Mask Settings You may setup privacy mask to mask off sensitive or private areas in the field of view of a camera. To setup privacy mask: Click Menu > Settings > Camera to enter the Camera Settings menu. Click the Advanced tab to enter the Advanced Camera Settings menu, as shown in Figure1.
  • Page 63 Figure2. Setting Mask Area Select Exit to save settings and exit the Mask Area Settings interface.

  • Page 64: Hdd Management

    11. HDD Management Managing HDDs 11.1 Initialising HDDs A newly installed hard disk drive (HDD) must be first initialised before it can be used with your DVR. Initialising the HDD will erase all data on it. To initialise a HDD: Click Menu >...

  • Page 65: Setting Hdd Status

    Figure 2. HDD Group Settings Menu Select OK to save settings and exit the Group Settings menu. Note: By default settings, all HDDs belong to group 1. 11.3 Setting HDD Status You may change the behavior of your HDD by changing its status. The status of an HDD can be set to read-only or read/write (R/W).

  • Page 66: Checking Hdd Status

    Set HDD Status to Read-Only. Select OK to save settings and exit the current menu. Note: 1. Once set to read-only, the HDD cannot be written to until it is set back to read/write (R/W). 2. This model can only be installed with one HDD, therefore when the property is set to read-only, the recording will stop.
  • Page 67 Set Major Type to Information. Set Minor Type to HDD SMART. Enter Start Time and End Time. Click the Search button to begin log search. A list of results, similar to that of Figure 5, will be returned. Figure 5. Log Search Results Select log item to view and click the Details button.

  • Page 68: Configuring Hdd Alarms

    Figure 7. HDD SMART Menu 11.5 Configuring HDD Alarms HDD alarms can be set to trigger when an HDD is uninitialised or in an abnormal state. To set HDD alarms: Click Menu > Settings > Exception to enter Exception menu, shown in Figure 8.

  • Page 69: Dvr Management

    DVR Management Configuring System Settings 12.1 Configuring General Settings General settings such as the system language can be configured in the General Settings menu of your DVR. To configure general settings: Click Menu > Settings > General to enter the General Settings menu, shown in Figure 1.

  • Page 70: Rs-232 Port Settings

    Click Menu > Settings > General to enter the General Settings menu, shown in Figure 1. Click the More Settings tab to enter the More Settings menu, shown in Figure 2. Figure 2. More Settings Menu Configure the following settings: Device Name: Name of the DVR used.

  • Page 71: Managing User Accounts

    Figure 3. RS-232 Settings Menu Configure RS-232 Settings. The RS-232 port can be used in two ways: Parameter Control: Connect a PC to the DVR using the PC serial • port. Device parameters can then be set using software such as HyperTerminal.
  • Page 72 Select the Add button to enter the Add User menu, shown in Figure 5. Note: Up to 31 users can be added. Figure 5. Add User Menu Enter information for new user, including User Name, Password, Level and User’s MAC. The Level is the user level and is separated into two tiers.
  • Page 73 Local Log Search: Search and view logs of DVR. • Local Configuration: Configure and restore parameters to factory • defaults. Introduce settings to or export settings from DVR. Local Advanced Operation: HDD management (including the • initialisation and changing the properties of a disk). Ability to update system firmware as well as to stop the relay output Local Shutdown/Reboot: Shutdown or reboot the DVR.

  • Page 74: Deleting A User

    Figure 8. Camera Permission Settings Menu Remote Live View: Select and view live video over the network. • Local Manual Record: Locally start and stop manual recording on • any of the channels. Remote Record Starting: Remotely start and stop manual recording •...

  • Page 75: Importing & Exporting Configuration

    Figure 9. Modify User Menu Edit user information. To modify user permissions, click on the privileges button. Permissions settings are defined in the Adding a New User section described above. Click the OK button to exit menu. 12.5 Importing & Exporting Configuration Configuration information from your DVR can be exported to a USB device and imported into another DVR.

  • Page 76: Updating System Firmware

    Click Export to export a configuration file to USB device. USB device must be connected at this point to the DVR. To import a configuration file, select the file from the USB device and click the Import button. After the import process is completed, the system will automatically reboot the DVR.

  • Page 77: Restore Default Settings

    To update via a FTP server: Configure PC (running FTP server) and DVR must be in the same Local Area Network. Run the third-party TFTP software on the PC and copy the firmware into the root directory of TFTP. Enter the Firmware Update menu by clicking Menu > Maintenance > Upgrade.

  • Page 78: Viewing System Information

    Select OK to restore factory defaults. Note: Network information such as IP address, subnet mask and gateway will not be restored. 12.7 Viewing System Information To view system information: Click Menu > Maintenance > Information to enter the Information menu, shown in Figure 14.
  • Page 79 Set search parameters. Click the Search button to start search. If logs matching the search conditions are found, it will be displayed in a list of search results as shown in Figure 16. Figure 16. Log Search Results To view more detailed information about a particular log entry, select the log and click the Details button.

  • Page 80: Appendix

    Appendix 13.1 Glossary • Dual Stream: Dual stream is a technology used to record high resolution video locally while transmitting a lower resolution stream over the network. The two streams are generated by the DVR, with the main stream having a maximum resolution of 4CIF and the sub-stream having a maximum resolution of CIF.

  • Page 81: Faq

    13.2 • Why does my DVR make a beeping sound after booting? There are a few reasons for the warning beep your DVR makes after booting. 1. There is no HDD present in the DVR. 2. The HDD has not been initialised. 3.

  • Page 82: 1Fps Background Recording Switching To 25Fps In Cif

    13.3 1fps background recording switching to 25fps in CIF This DVR has a special feature that allows the unit to be set for recording at a low frame rate but when motion is detected to revert to 25fps recording. 1. Enter System Settings. 2.
  • Page 83 9. Select Camera Settings. 10. Select Advanced tab 11. Tick Motion Detection Box 12. Click on Area Settings 13. Drag detection box to cover detection area. 14. If you enter the Handle option you can tick the Pop-up image on Monitor to display a single screen display of the triggered camera.

  • Page 84: Record Timings For Alien214

    13.4 Record Timings for Alien214 CIF mode Frame Rate 320Gb 640Gb 750Gb 1.0Tb 1.5Tb 2.0Tb 13dy 4hr 26dy 9hr 30dy 22hr 41dy 5hr 61dy 20hr 82dy 10hr 26dy 9hr 52dy 18hr 61dy 20hr 82dy 10hr 123dy 16hr 164dy 21hr 52dy 18hr...

  • Page 85: Frame Rate Settings And Tcp Connections For Alien214

    13.5 Frame Rate Settings and TCP Connections for ALIEN214 FRAME RATE SETTINGS HIGHEST SETTINGS ALIEN214 MAINSTREAM CIF 25FPS MAINSTREAM 2CIF 25FPS MAINSTREAM 4CIF 25FPS SUBSTREAM CIF 6FPS SUBSTREAM QCIF 25FPS TCP CONNECTIONS TOTAL TCP CONNECTIONS TOTAL PER CHANNEL TOTAL TCP CONNECTIONS : This is the total TCP connections per DVR...

  • Page 86: Specifications

    14. Specifications ALIEN214 Video compression H.264 Analog video input 4-ch, BNC (1.0Vp-p, 75 ); PAL/NTSC adaptive Audio compression G.711 Audio input 4-ch VGA output 1-ch, resolution: 1280x 1024/60Hz/1024×768/60Hz 2-ch, BNC connector (1.0 Vp-p, 75 ); CVBS output Resolution: PAL: 704 × 576, NTSC: 704 × 480...
