ASL120 Series Smart Lock

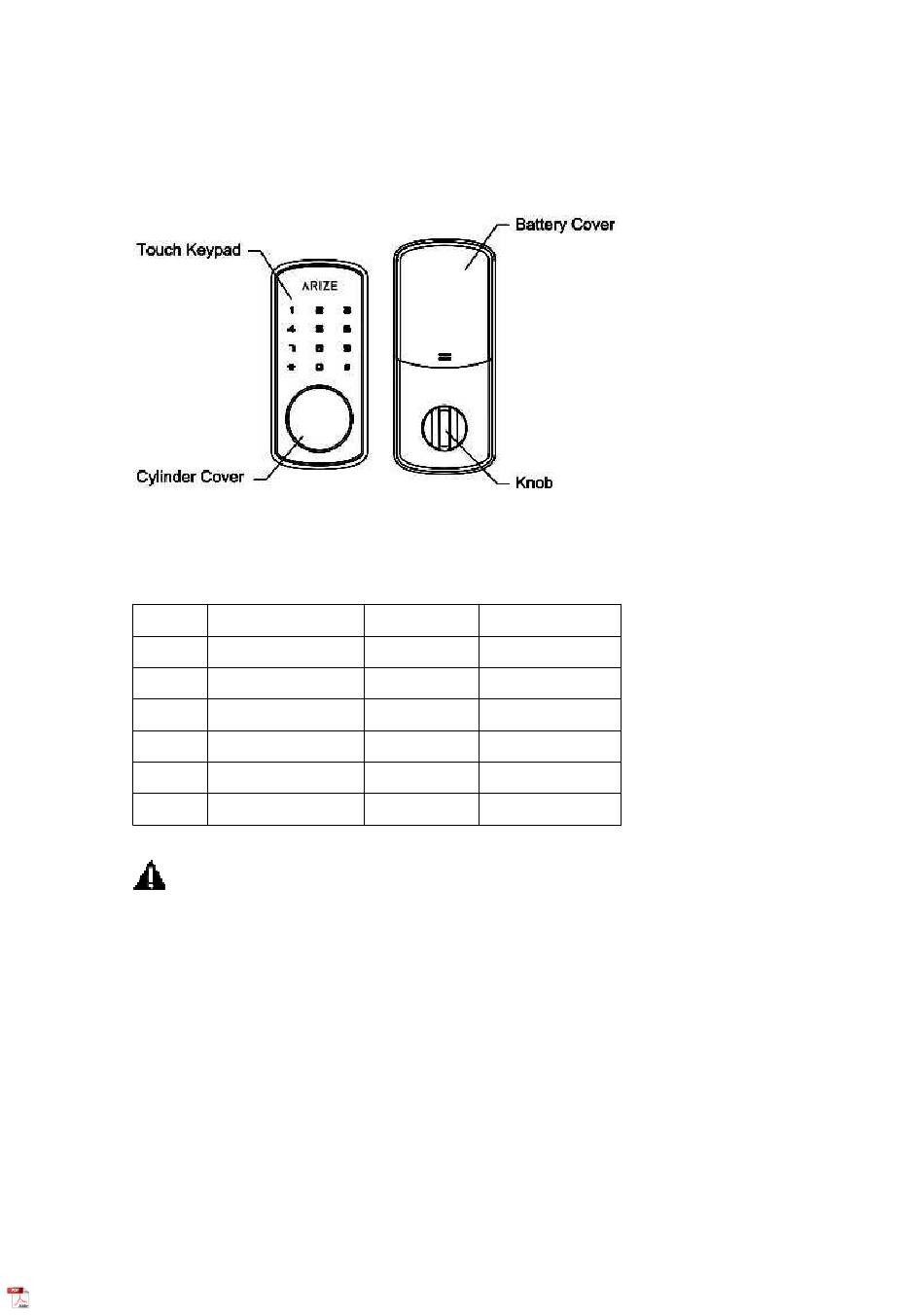

Main Parts and Diagram

Thanks for choosing our ASL120 smart lock.

Please check the user manual carefully before operation and installation.

Packing

Model Type

Front Plate

Back Plate

Mortise lock

Battery cover

Accessories

Battery

Warning:

Changes or modifications to this unit not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

Quantity

Note

4pcs / group

Table of Contents

Need help?

Do you have a question about the ASL120 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Arize ASL120 Series

Page 1 ASL120 Series Smart Lock Main Parts and Diagram Thanks for choosing our ASL120 smart lock. Please check the user manual carefully before operation and installation. Packing Model Type Quantity Note Front Plate Back Plate Mortise lock Battery cover Accessories Battery...
Page 2 Installation Installation Diagram 1. Prepare one cross point screwdriver before installation 2.Slide the battery cover and unscrew the 3pcs screws,then take off the back plate and pad. Please confirm whether to adjust the mortise lock based on the distance I from the center hole to door frame.
Page 3 4. When you install the mortise lock, please keep the latch retracted for left to outside or right to inside direction. For the right to outside or left to inside direction please adjust the latch to release with screwdriver. 5.Install the front plate and back plate as the diagram, the cylinder trail of the front plate need be horizontal.
Page 4 7. After installation, please test it with battery Test: When Insert the battery, please touch the screen to activate. If do not work please check: Battery condition (A: Poor battery B: "+""-"are inserted correctly C: The battery Is too loose or with deviation.) Lines condition (A: The line Is not Inserted rightly B: The plugs are damaged)
Page 5 User Manual Creating Master Code Creating a Master Code must be performed upon installation or after resetting PIN the lock to factory default. Programming and use of lock is not possible until this step has been successfully completed. Step1 Wake up the screen:touch the screen to activate. Step2 Enter key 1-->Enter Step3 Enter the master code you want to set（6-8digits）-->Enter Creating User Code...
Page 6 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
