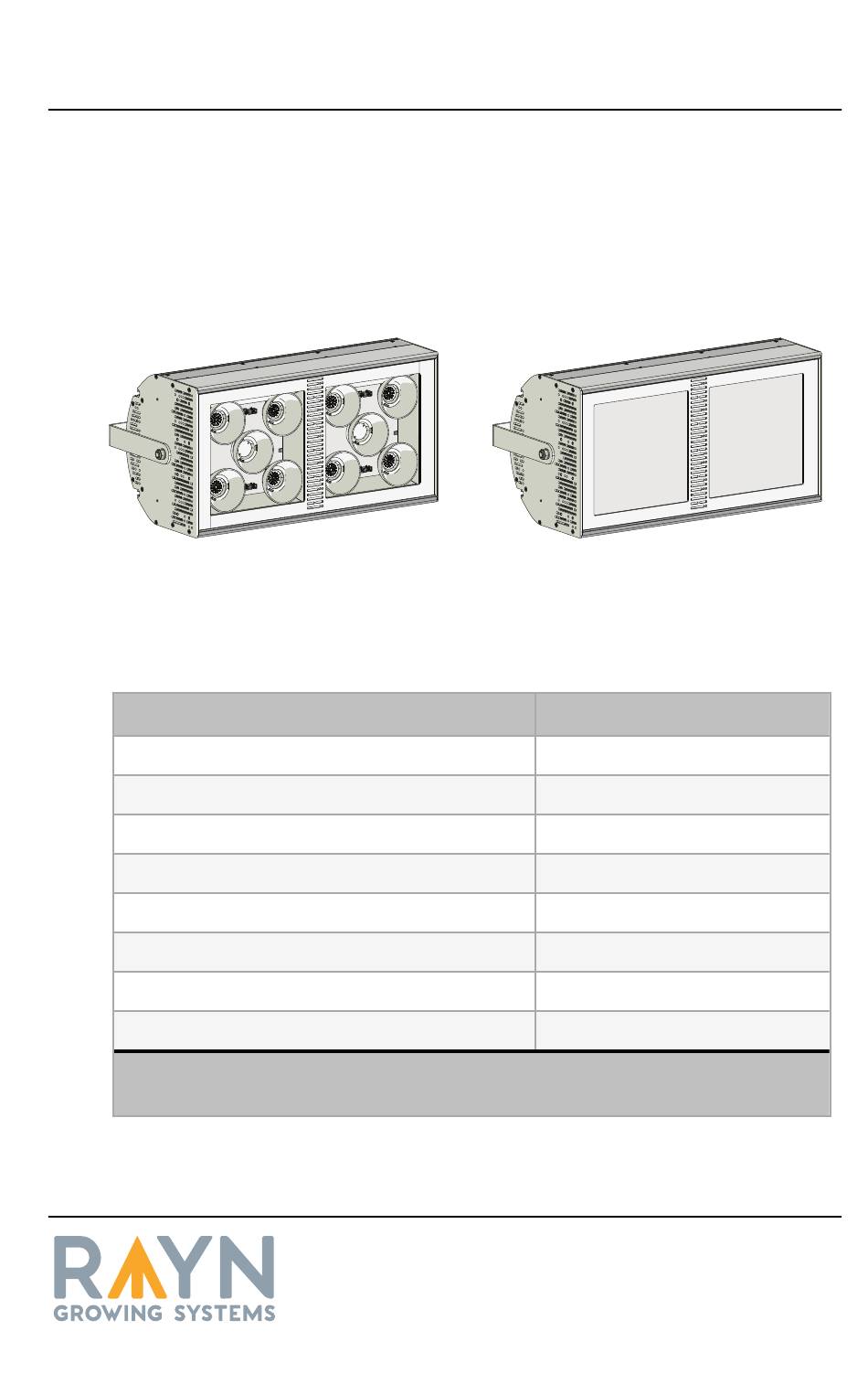

RAYN Installation Guide
Rosa 600 Luminaire
Overview
The Rosa 600 luminaire provides high-intensity LED illumination for plant
science and horticultural research.
A Rosa 600 luminaire may be fitted with standard or customized arrays of
LED emitters depending on the particular growing requirements of the
installation. More details may be found at rayngrowingsystems.com.
Accessories
Depending on the luminaire model ordered, the unit may include either
secondary diffusion optics or reflectors pre-installed at shipment. Optical
properties can be altered with field-swappable accessories.
Description
Narrow Reflector (~20 degrees)
Medium Reflector (~30 degrees)
Wide Reflector (~50 degrees)
Extra Wide Reflector (~91 degrees)
Color Mixing Sub Lens*
Acrylic Kit**
C-clamp (for pipe mounting)
DMX Termination Plug
*Requires a corresponding reflector per sub lens.
**Acrylic Kit includes a set of two front lenses.
RAYN Grow ing Syste ms | Middleton, WI | +1 844 907 RAYN
© 2021 RAYN Growing Systems, LLC. | All Rights Reserved.
Trademark and patent
info: rayngrowingsystems.com/ip
information and specifications subject to change. | RAYN Growing
Systems intends this document to be provided in its entirety.
7430M2100 Rev A Released 2021–04
r a y n g r o w i n g s y s t e m s . c o m
Part Number
OP2121
OP2122
OP2123
OP2128
OP2114
7430K1006
7060A2009
SGE1507
| All product
Advertisement
Table of Contents
Summary of Contents for RAYN Rosa 600
- Page 1 The Rosa 600 luminaire provides high-intensity LED illumination for plant science and horticultural research. A Rosa 600 luminaire may be fitted with standard or customized arrays of LED emitters depending on the particular growing requirements of the installation. More details may be found at rayngrowingsystems.com.
- Page 2 Order this amount of reflectors and sub lenses, if needed. For example: 4 luminaires x 8 sources = 32 reflectors needed. Rosa 600 luminaire may have 8 or 10 sources, depending on configuration. Safety Rosa 600 luminaires are intended for professional use only. Read this entire manual before using this equipment.
-
Page 3: Specifications
RAYN Installation Guide Rosa 600 Luminaire Specifications Environment CAUTION: Rosa 600 luminaires are not suitable for use in spaces with restricted air flow. Enclosing the luminaires will result in overtemp errors and may cause damage to the luminaire. For indoor use only. -
Page 4: Weights And Dimensions
RAYN Installation Guide Rosa 600 Luminaire Attachment point (x5) for use with safety cable/Unistrut/C-clamp Attachment point (x2) for use with t-nut hardware 454 mm (17.9 in) 31.75 mm 227 mm 422 mm (1.25 in) (8.94 in) (16.6 in) 188 mm (7.4 in) - Page 5 A 120 VAC Rosa 600 luminaire is provided with a 3 m (10 ft) power input cable with a NEMA 5-15P connector. A 230 VAC Rosa 600 luminaire is provided with a 3 m (10 ft) power input cable with bare ends. A suitably instructed person (electrically) or electrician must install a compatible connector.
- Page 6 This can result in random flashing of the luminaires on that control run. To terminate the control run, install a DMX termination plug (RAYN Growing Systems part number SGE1507) on the DMX Thru connector on the last luminaire on that run.
-
Page 7: Before You Begin
RAYN Installation Guide Rosa 600 Luminaire Before You Begin Review the following sections before beginning installation. Certain elements of this installation should only be completed by a qualified installer or electrician. General adjustments and maintenance of the luminaire are acceptable end user tasks. -
Page 8: Installation
RAYN Installation Guide Rosa 600 Luminaire Installation Setup the Luminaire Attachment point (x5) for use with safety cable/Unistrut/C-clamp Power input cable Attachment point (x2) for use with DMX Thru t-nut hardware DMX In 1. Install the mounting hardware (not provided) to an installation attachment point on the luminaire yoke or use the provided channels on the enclosure. -
Page 9: Adjust Tilt
The display will blink the DMX address when no DMX is present. The DMX start address of the luminaire can also be set remotely via RDM using the RAYN Touch lighting controller. See the RAYN Touch Controller User Manual or online help system within the software for details. -
Page 10: Setting The Dmx Address
A - location of UL luminiare array type label B- location of CE luminiare array type label When using the luminaire with a control system other than a RAYN Touch Controller, contact your RAYN Growing Systems provider for DMX channel specifications. Rosa 600 Luminaire... -
Page 11: Firmware Update
• upgraded fixtures have a software issue. Use UpdaterAtor software (see Firmware Update above) to reload software to clear the error. If any of the above error codes persist, please contact RAYN Growing Systems at support@rayngrowingsystems.com for additional troubleshooting assistance. - Page 12 RAYN Installation Guide Rosa 600 Luminaire Rosa 600 Luminaire Page 12 of 12 RAYN Growing Systems...
