Summary of Contents for RAKINDA F1MAX
- Page 1 F1 Max Face Terminal Manual Model：F1MAX（5 inch) Android 11 Version： V1.0 Shenzhen Rakinda Technologies Co.,Ltd 1 / 19...
- Page 2 www.scanmaxai.com 2 / 19...
-
Page 3: Table Of Contents

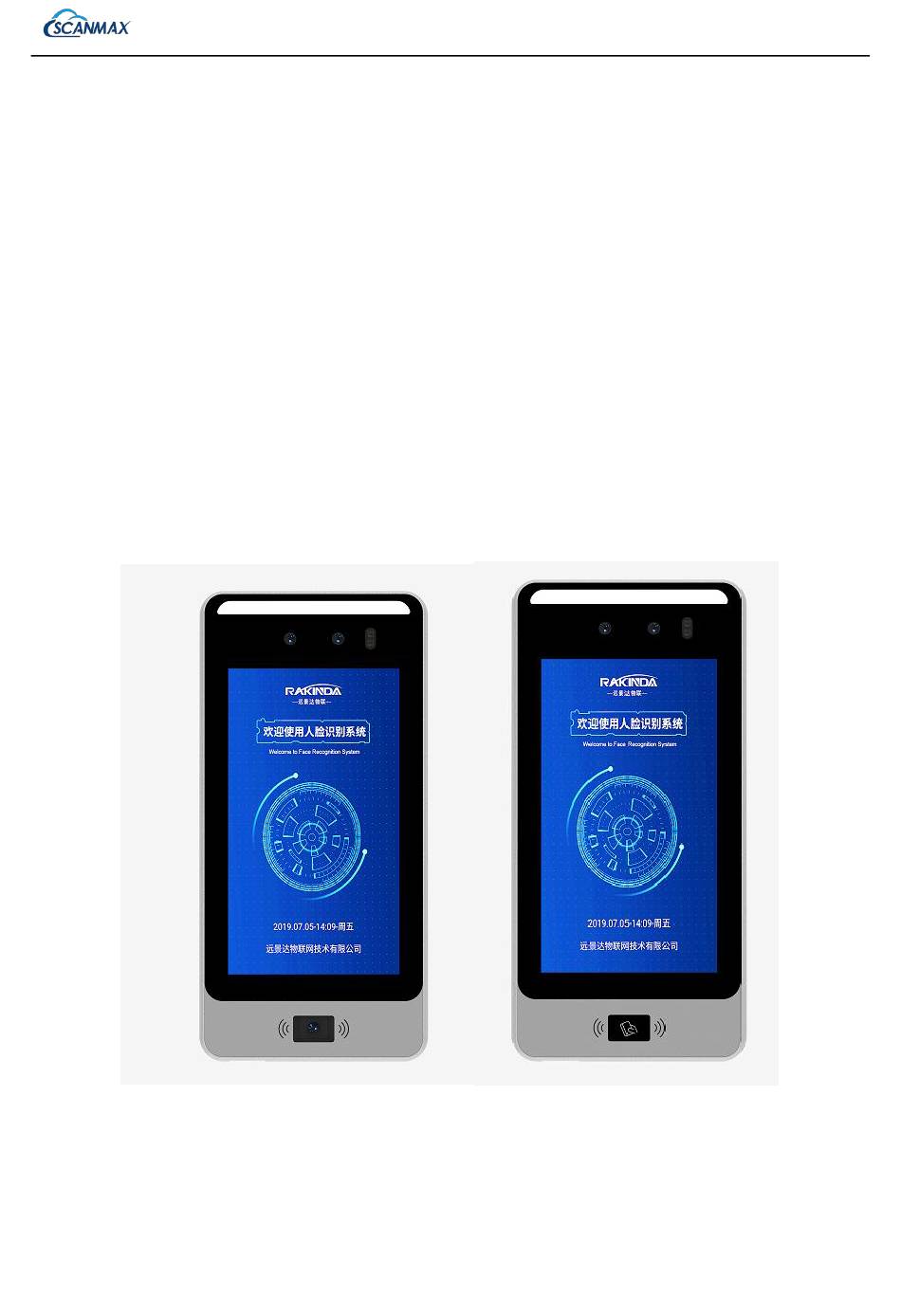

www.scanmaxai.com Content One、 Product Description ......................错误！未定义书签。 Two、 Function Feature ......................错误！未定义书签。 Three、Specification Performance ..................错误！未定义书签。 Four、 Product List .........................错误！未定义书签。 Five、 Product Structure ......................错误！未定义书签。 Six、 Product Wiring .........................错误！未定义书签。 6.1 Integrated Harness Wiring Instructions ........................11 6.2On-site magnetic door installation reference instructions ................12 6.2.1Magnetic door system installation diagram ....................12 6.2.2Magnetic door system wiring diagram ......................12 Seven、Installation Instructions ..................... - Page 4 www.scanmaxai.com One、Product Description （The picture is for reference only） This Product is a convenient and safe industrial-grade visual face recognition all-in-one machine. In response to the needs of large capacity, high performance, wide application, and customizability in the face recognition application Maxcess, a face recognition intelligent hardware was launched. Face dynamic recognition Maxvides users with a safe environment.
- Page 5 www.scanmaxai.com Function Features Two、 High Engine Binocular living Distance sensing Card Reader Security interface Various installations Features Contents Combined with face recognition algorithm, it supports Performance 10,000-level face database Algorithm Support algorithms domestic Combined with face recognition algorithm, face Speed recognition can be completed quickly Anti-counterfeiting Binocular face recognition, support live detection...
- Page 6 www.scanmaxai.com Smart Facial Access Control Terminal Standard： 4G： With Temp： Models F1 Max F1 Max-4G F1 Max-T Main function Access control, attendance, face recognition Product Indoor Features environment Device shell Aluminum alloy material Type Resolution 2 million pixels 2 million pixels Vertical wide 65°...
- Page 7 www.scanmaxai.com temperature Test error: ≤±0.5℃ measurement Recommended distance of 50cm module Working temperature: 15℃~40℃ 【Optional】 Ethernet 10/100Mbps Ethernet Communicatio WIFI Compliant with IEEE802.11b/g/n standard (2.4G) 4G【optional】 CAT1, domestic full Netcom Identification Face Supported method IC card Supported (Optional) QR Code Reader Supported (Optional) Data port USB 2.0*2 Replay...
- Page 8 www.scanmaxai.com ESDElectrostatic IEC61000-4-2,LEVEL3 Maxtection level IP41 Wall mounted Installation method F1 Max Four、Product list Content 数量 Host Wall Mount Kit 4G module and external antenna [optional] Power Adapter Wall Mounted Harness Mounting screw pack Product Instructions (Product Warranty Card) Five、Product structure 8 / 19...
- Page 9 www.scanmaxai.com Parts No, Function Instructions Wall Mount Bracket Fixing Screw RGB Camera IR Camera USB2.0 White Fill Light (White) Infrared Fill Light Multi-point Capacitive Touch Screen Sound Hole Speaker Mesh QR Code Scanning Area NFC Card Area Wall Mount Bracket Trapezoidal Screws Trapezoidal screws 9 / 19...
-
Page 10: Six、Product Wiring
www.scanmaxai.com Tail Wire Interface Six、Product Wiring External Interface Hardware Wiring Instructions Type Instruction Port Network Port Support 10/100Mbps RJ45 Relay normally closed end/common end/normally open end. Generally, the door lock power supply is connected to the COM terminal, and then Relay according to the type of door lock, the relay power supply is negatively connected to the NO port or the NC port. -
Page 11: Integrated Harness Wiring Instructions
www.scanmaxai.com USBA 2.0_OTG Equipment upgrade, debugging, U disk 6.1 Integrated Harness Wiring Instructions 11 / 19... -
Page 12: On-Site Magnetic Door Installation Reference Instructions
www.scanmaxai.com 6.2 On-site magnetic door installation reference instructions 6.2.1Magnetic Door System Installation Diagram 6.2.2 Magnetic Door System Wiring Diagram Seven、Installation Instructions 12 / 19... - Page 13 www.scanmaxai.com Environmental requirements During the installation and use of this Product, all electrical regulations of the country and region must be strictly observed. If the device does not work Maxperly, please do not disassemble and repair it by yourself, otherwise it will affect the warranty of the device.
-
Page 14: Wall Mount Installation Instructions
www.scanmaxai.com The installation location of the device must remain the same Register Comparasion during registration and use. If it is necessary to move the position of the device, the installation height must be kept the same. If they are inconsistent, the recognition effect of the device may deteriorate. - Page 15 www.scanmaxai.com 3 groups of lines need to be embedded in advance at the host equipment (the reserved line length is 10cm) (1) 12V power cord RVV2x1.0 standard and above, one end is at the host device, the other end is pulled to the original access control dedicated power supply or the 2-pin socket of the 220V power supply on the top of the sliding door, and the factory-built 12V1.5A power supply is connected during installation The 12V end of the adapter, the 220V power cord of the adapter is directly inserted into the 2-hole socket of the 220V...
-
Page 16: Dimensions And Hole Positions Of The Wall Bracket
www.scanmaxai.com (1) Super Category 5 network cable is 8x0.5 oxygen-free copper standard and above, one end is at the host equipment, and the other end is pulled to the switch in the weak current room to connect to the Internet during installation. In special cases, if it is difficult to increase the wired network, the door wireless network will also Very stable, can consider using wireless 7.1.2 Dimensions and hole positions of the wall bracket... -
Page 17: Installation Steps
www.scanmaxai.com 7.1.3 Installation steps Step 1: Fix. Fix the wall mount accessories to the wall with screws.。 Step 2: Wiring. Refer to "Wiring Instructions" to connect the wires to the device Step 3: Adjust. Use screws to tighten the accessories and fixing screws on the fixed device. Step 4: Lock. - Page 18 www.scanmaxai.com Circuit boards and their component Power Adapter This table is prepared according to the Maxvisions of SJ/T11364 Indicates that the content of the hazardous substance in all homogeneous materials of the part is below the limit requirement specified in GB/T26572 Indicates that the content of the hazardous substance in at least one homogeneous material of the part exceeds the limit specified in GB/T26572 This labeling period refers to the period (ten years), and the harmful...
- Page 19 www.scanmaxai.com users, any user who purchases our company's Products, if the Product has quality Maxblems In case of failure, you can contact the local dealer or special maintenance station with the invoice and warranty card. Warranty Notes: 1. Within one year from the date of purchase by the user, in the event of a failure under normal use, the company will Maxvide free warranty parts replacement and other services according to the failure situation;...
