Item #0000 000 000
Model #211-7S1-7DUS-V2
USE AND CARE GUIDE

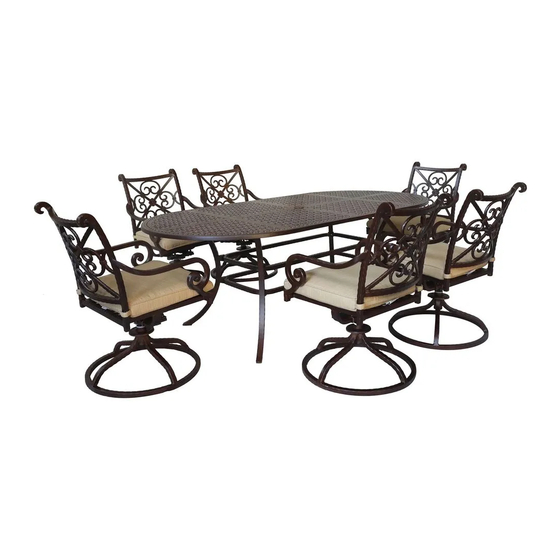

WILSHIRE HEIGHTS 7-PC DINING SET
(2pc Swivel Chairs Assembly)
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this dining set.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection WILSHIRE 211-7S1-7DUS-V2
Summary of Contents for Home Decorators Collection WILSHIRE 211-7S1-7DUS-V2
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this dining set. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for...
- Page 2 Table of Contents Pre-Assembly..............3 ............2 Table of Contents Planning Assembly ..............3 Important Safety Instructions ..........2 Hardware Included..............3 ................ 2 Warranty 5 Year Frame and Fabric Limited Warranty ......... 2 Package C ontents ..............3 ..............
- Page 3 Pre-Assembly PLANNING ASSEMBLY It will take t wo people about 20 minutes to complete the assembly process. HARDWARE INCLUDED NOTE: Hardware is not shown to actual size. Part Description Quantity Bolt (M8x40) Washer (D8) Lock washer (D8) Nut (M8) Washer plate Bushing Bolt cap (M8) Nut cap (M8)
- Page 4 Assembly Attaching the T-rock to the chair seat □ Place the seat and back (A) upside down on a flat ,smooth surface. □ Align the T-rock (C) to the U-bar of the seat and back. □ Attach the T-rock to the U-bar with the washers plates (EE) and the bolts (AA) below the U-bar and also with the washers (BB), the lock washers and the nuts (DD) above the triangular plate of the T-rock using the wrenches (II).
- Page 5 Assembly Attaching the chair base □ Place the chair base (B) on a flat, smooth surface. □ Insert the bushing (FF) into the center of the chair base. □ Turn the chair seat upright. □ Plug the shaft of the T-rock into the center of the chair base until an audible click is heard.
- Page 6 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use. Model #211-7S1-7D-SC...
