For technical assistance or troubleshooting
This product Wall Mount frame is intended for use only with an apparatus which has a maximum weight of 55 lbs. See apparatus
instructions. Using with an apparatus heavier than the maximum weight indicated may result in instability and cause possible
injury
READ THIS FIRST Read this entire manual! Do not attempt to install this product if you do not understand the instructions.
Contact a qualified mount installer if you have any doubts about a safe and secure mount installation, or if you are not sure what
specific wall materials you are attaching this mount to. Check all the parts carefully to make sure there are no missing or
damaged parts. Improper installation may result in damage to your TV, property, and personal injury.
• Supports most 10" - 32" Flat Panel TVs
• Maximum weight capacity: 55 lbs.
please call 1-855-994-3832.

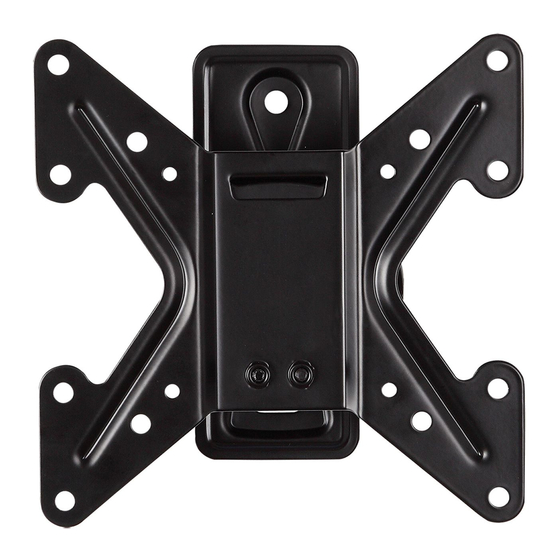

ETEC EX350SS
+5 to -15
2.2" to 8.4"
Advertisement
Summary of Contents for Etec EX350SS
- Page 1 ETEC EX350SS +5 to -15 2.2” to 8.4” • Supports most 10” - 32” Flat Panel TVs • Maximum weight capacity: 55 lbs. For technical assistance or troubleshooting please call 1-855-994-3832. This product Wall Mount frame is intended for use only with an apparatus which has a maximum weight of 55 lbs. See apparatus instructions.
- Page 3 Wall plate TV plate Long Bolt Long Bolt washer Concrete Anchor M4x12mm bolts Allen wrench M4x30mm bolts Socket tool M5x12mm bolts M4/M5 washers M6x12mm bolts M6/M8 washers M6x25mm bolts M8x12mm bolts M8x25mm bolts...
- Page 4 Step 1. Separate the TV Plate & Wall Plate 1. Use the Allen wrench (K) to remove the two M6x12 Bolts and separate the Wall Plate (1) and TV Plate (2) into two pieces as shown in Fig 1. Fig. 1 Step 2.
- Page 5 Step 3. Find and mark the best position for the wall mount on the wall. The best viewing height is parallel to the eye level of a person sitting on a couch. Normally, this is about 4 feet above floor level. In addition to your eye level height when you are seated, the following two measurements will help you determine the perfect height for your wall-mounted television: •...
- Page 6 Step 4: Attach the wall mount to the wall After determining the ideal height on the wall for your television, follow the mounting instructions for your type of wall construction: wood stud walls or masonry walls (concrete, brick, or stone). Wood Stud Walls 1.
- Page 7 2.5” 4. Use the Socket tool (L), the two Long Bolts (A), and Washers (C), to attach the wall mount to the wall. Tighten the Long Bolts (A) securely and then loosen each bolt 1/2 turn. Shift the bottom of the wall mount to insure the mount is perfectly level.
- Page 8 Step 5: Hang the television 1. Lift the television using two people with the bracket assembly already securely attached. 2. Hook the tab on the top of the TV Plate (2) over the top on the front of the Wall Plate (1) arm as shown in Fig.
-
Page 9: Step 6: Adjusting The Tilt
Step 6: Adjusting the Tilt 1. The Handle on the front of the Wall Plate mount arm is used to adjust the tilt angle of the TV to your desired angle. 2. This handle is a tension lever. To loosen the tilt adjustment, turn the handle counterclockwise until the handle hits the TV Plate (2) and can turn no more. -
Page 10: Step 8: Adjusting The Rotation
Step 8: Adjusting the Rotation 1. If necessary, the TV can be rotated from -5° to +5° by adjusting the two screws which connect the Wall Plate (1) to the TV Plate (2) as shown in Fig. 5d. 2. To adjust the rotation, loosen these two screws with the Allen wrench (K) about 1/2 turn each, and gently slide the TV Plate (2) to the left or right depending on your needs. - Page 11 We warrant this product to you, the original purchaser at the time of purchase printed on a dated store receipt from an authorized ETEC retailer and for a period of six-years thereafter that our wall mount product and all it’s parts and components are free of defects in material and workmanship under normal use.
- Page 12 Schoenfeld International Inc. and ETEC Schoenfeld International Inc. 2013 PN: EX350SS Rev. 1.0 Sept. 2013...
