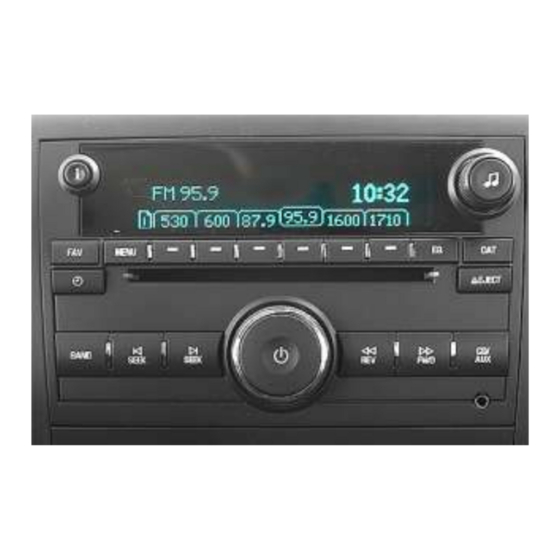

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 AUX-GM4X QUICK START INSTALLATION GUIDE FOR SELECT 2006-14 GM LAN RADIOS WITH XM MODULE Created August 11, 2017 Revised August 25, 2022...
- Page 2 With radio removed: do when this happens? Many opt to repair, purchase a replacement radio or ignore it. We decided to offer the AUX-GM4X. This harness connects to the XM 1. Disconnect 16-pin XM plug (See Fig. 2) from radio port on the radio and is independent of radio faceplate jack.
- Page 3 Audio jack (active XM) Audio jack (expired XM) Fig. 5 Fig. 3 Audio Jack 2. Connect XM 16-pin plug to 16-pin connector on harness (See Fig. 4) 5. Optional: Drill a ¼” hole in dash or panel, push threaded end through hole 3.
- Page 4 4. Put audio device in play mode and enjoy. 3. The aux jack on my radio is broken. Will the AUX-GM4X work? The AUX-GM4X is independent of radio aux jack. If aux jack is broken, the AUX-GM4 is a great alternative; however, your vehicle must have an XM Tuner module with or without subscription.
