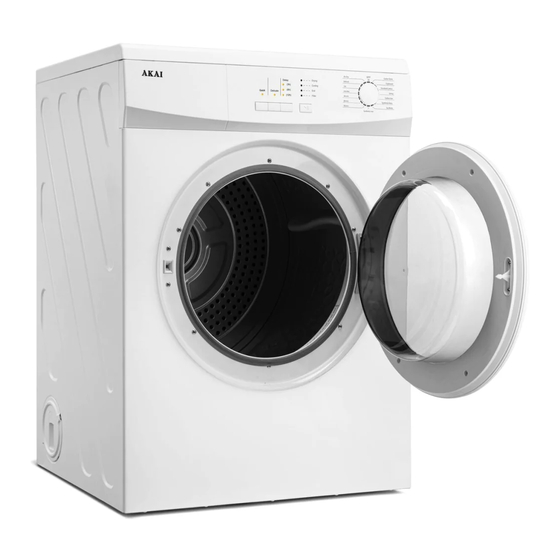

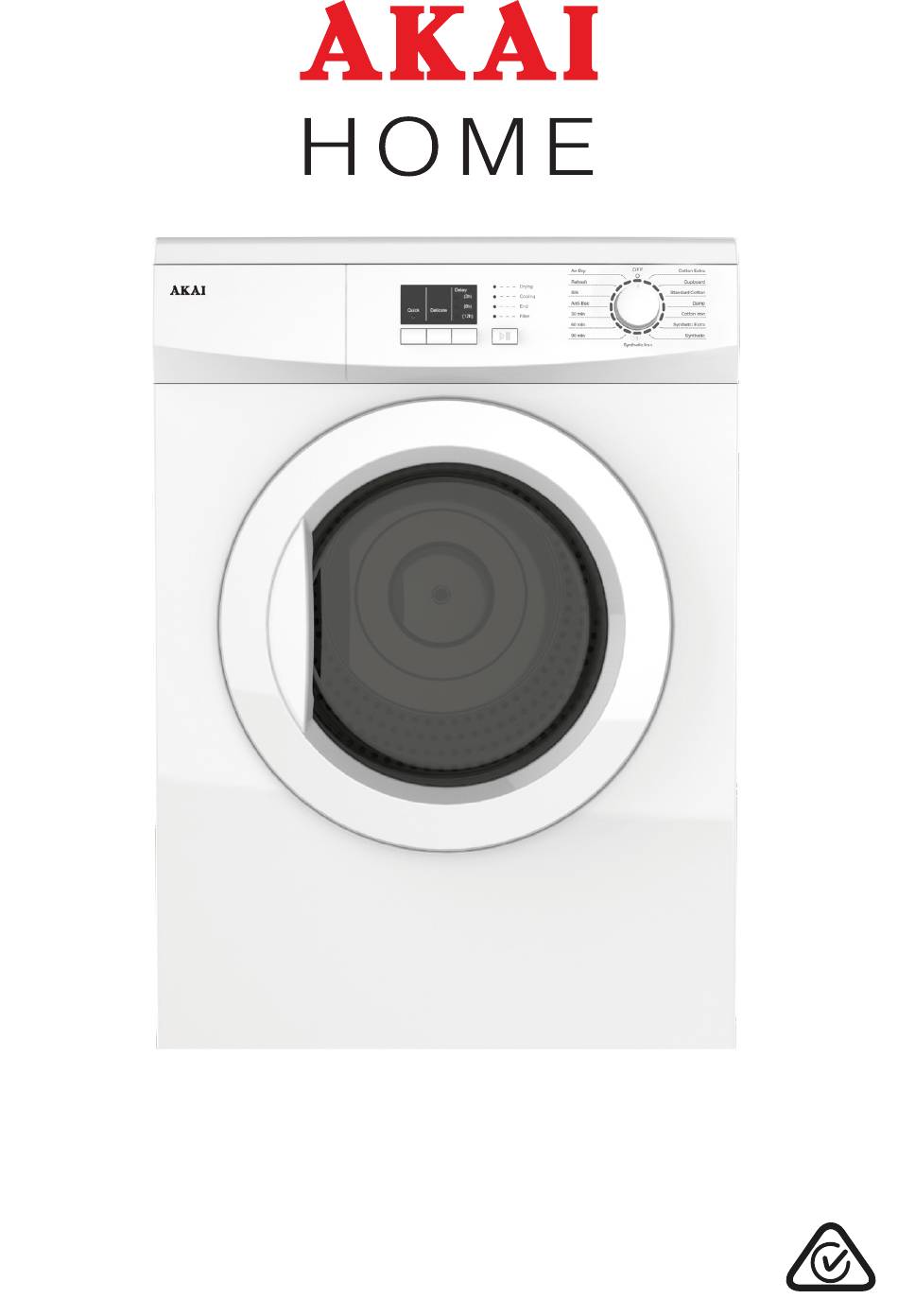

- Page 1 7 kg Vented Clothes Dryer INSTRUCTION MANUAL MODEL: AK-VD7KG...
-
Page 2: Table Of Contents
Contents General Safety Instructions Unpacking Product Overview Installation Instructions FAQs and Troubleshooting Guide Other Useful Information After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support... -
Page 3: General Safety Instructions
General Safety Instructions IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, the safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Keep the manual in a safe place for future reference, along with the completed warranty card and purchase receipt. - Page 4 General Safety Instructions (Cont.) • Indoor use only: Do not use the appliance outdoors. • Usage restriction: The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 5 General Safety Instructions (Cont.) • WARNING: This appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility. • CAUTION: Do not overload the dryer: the maximum amount of dry textile material that can be dried in one load is 7.0kg.
- Page 6 General Safety Instructions (Cont.) CAUTION! • Do not use the tumble dryer if industrial chemicals have been used for cleaning. • Do not dry unwashed items in the tumble dryer. • Do not allow lint to accumulate around the tumble dryer. Clean the filter after every use. •...
-
Page 7: Unpacking
Unpacking Unpacking the clothes dryer CAUTION: EXTREMELY HEAVY! A team lift or mechanical aid is required when moving this appliance. Keep the appliance as upright as possible during transportation. • This product has been packaged to Fig. 1 Fig. 1 protect it against transportation damage. -
Page 8: Product Overview
Product Overview Scope of delivery Clothes dryer NOTE: Due to continued product improvement, images Control panel and illustrations in this manual may vary slightly from Viewing window the product purchased. All images in this manual are Front housing for reference purposes only. Parts are not necessarily Lint filter (inside drum) pictured to scale. - Page 9 Product Overview (Cont.) Scope of delivery (cont.) Rear view Thermostat reset button Vent outlets Accessories (not shown) Vent hose Documentation (not shown) Instruction manual Warranty certificate After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support...
-
Page 10: Installation
Installation Unpacking • This product has been packaged to protect it against transportation damage. Remove all packaging materials from around and inside the appliance and keep the packaging materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. - Page 11 Installation (Cont.) Freestanding, floor level installation Fig. 2 >200 mm • Make sure the floor surface is firm, flat, dry and stable, and there is an appropriate wall outlet nearby. Do not place the appliance on soft material such as foam, plastic or carpet, as this may block the air intake.
- Page 12 Installation (Cont.) Vent Hose Installation Whilst drying, the tumble dryer is expected to vent a large amount of warm, very moist air, which should be removed from the room as quickly as possible to prevent condensation. In an extremely well-ventilated room, or close to an open window, this may occur naturally.
- Page 13 Installation (Cont.) Fixing condensation issues If the hose is long and the room temperature low, the moisture might condense inside the hose. This is an unavoidable natural phenomenon. • To prevent this water from lying in the hose or flowing back into the tumble dryer, it is advisable to drill a small hole (with a diameter of approximatley 3 mm) at the lowest point of the hose (Fig.
- Page 14 Installation (Cont.) Electrical connection This is a Class I electrical product, which has a power cord and plug with three pins, including an earth pin. WARNING! This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance for the electric current.
-
Page 15: Instructions
Instructions CAUTION! Make sure you read all safety precautions in this manual and are aware of the items (listed on page 7) that may NOT be placed in a clothes dryer as they cause a hazard. Preparing the load • Prior to loading the dryer, check that none of the items have the following symbols on them, which indicate that items are UNSUITABLE for clothes drying (Fig. - Page 16 Instructions (Cont.) • CAUTION: Do not overload the dryer: the maximum amount of dry textile material that can be dried in one load is 7.0 kg (see the table below for some reference weights). Keep in mind, though, that drying requires space for the clothes to circulate.
- Page 17 Instructions (Cont.) Control panel (Fig. 8) Air-Dry Cotton Extra Fig. 8 Refresh Cupboard Silk Standard Cotton Anti-Bac Damp 30 min Cotton Iron 60 min Synthetic Extra 90 min Synthetic Synthetic Iron Step-by-step guide to using the dryer 1. Program: Decide on a program according to the texture and weight of your drying load (please refer to the table on pages 18 and 19 for details about the drying programs).
- Page 18 Instructions (Cont.) 5. Delicate: This option can be used with the following programs: “Cotton Extra”, “Cupboard”, “Standard Cotton”, “Damp”, “Cotton Iron”, “Synthetic Extra”, “Synthetic” and “Synthetic Iron”. When this button has been selected, the corresponding light will illuminate, and the temperature of the cycle will be reduced, to protect delicate items.
- Page 19 Instructions (Cont.) Drying programs Program Max. Load # Type of Textiles Bathrobes and towels, cotton clothing or textiles, jeans and other suitable items; larger Cotton Extra 7.0 kg quantities or bulkier items that can withstand high heat. Bathrobes and towels, cotton clothing or Cupboard 7.0 kg textiles, jeans and other suitable items...
- Page 20 Instructions (Cont.) At the end of the program • At the end of each program, the appliance enters a 5-10 minute cool-down phase during which cold air is circulated around the drum. This will ensure items are left at a temperature that will not damage them. •...
-
Page 21: Faqs And Troubleshooting Guide
FAQs and Troubleshooting Guide Troubleshooting guide If your clothes dryer has a fault, is not working properly, or you think it should work better, please use the list below to identify and solve any problems. If you cannot solve the problem, switch off the dryer and unplug it from the power supply. - Page 22 FAQs and Troubleshooting Guide (Cont.) Problem Possible cause Solution Drum light The light bulb is defective. Contact the after-sales support does not work. team and organise a service. Drying process Is there not enough laundry in the Wait until a fuller load can be stops soon dryer? added to the dryer.
-
Page 23: Other Useful Information
Other Useful Information Cleaning and maintenance Keeping your clothes dryer in good, clean condition will prolong its service life. WARNING! • Before cleaning or maintaining any part of the dryer, make sure it has cooled down and is unplugged from the power supply. •... - Page 24 Other Useful Information (Cont.) Cleaning the cabinet and drum • Use a soft, dry or damp cloth to wipe the dryer cabinet and/or the drum. • If using a damp cloth, make sure it is not too wet. Leave the appliance door open after cleaning to ensure the drum can air-dry completely.
- Page 25 Other Useful Information (Cont.) Technical specifications Product AKAI HOME 7kg Vented Clothes Dryer Model Number AK-VD7KG Rated capacity 7 kg Voltage & Frequency 220-240 V~ 50 Hz Rated Power 1950 W Ingress Protection IPX4 Dimensions (approx.) 595 (W) x 555 (D) x 850 (H) mm...
- Page 26 This page has been left blank intentionally. After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support...
- Page 27 This page has been left blank intentionally. After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support...
- Page 28 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on 1300 886 649 for advice.
