Sinopulsar SPTS01 User Manual

User's Manual of
Thermal Sensing Module (with Bluetooth)
Product Name: Thermal Sensing Module (with Bluetooth)
Product Brand: Sinopulsar
Product Number: SPTS01

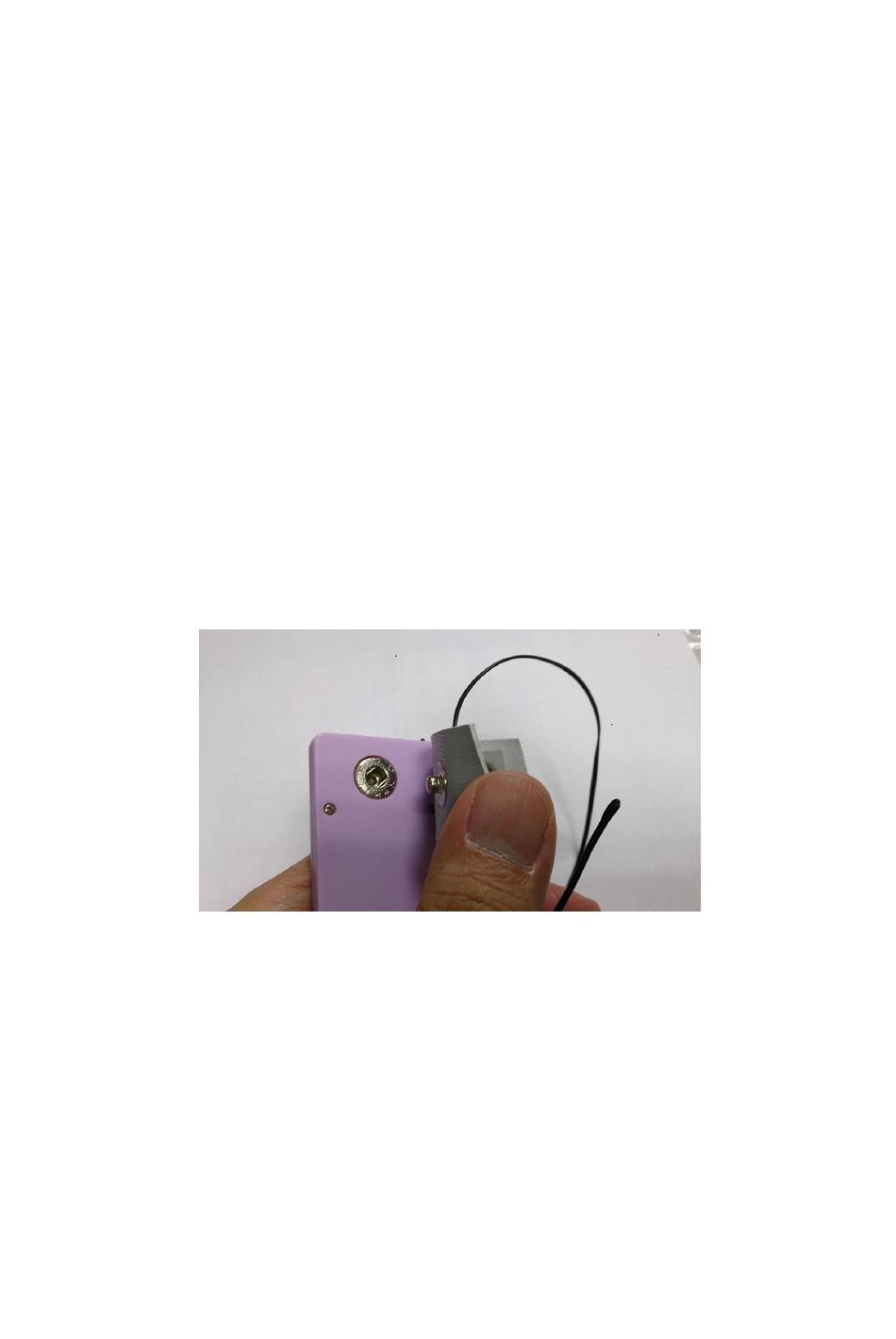

1. The first, the sensing module and the temperature sensor are connected by the
buttons; the second, the sensor is taped at the measured point, or fixed and
attached at the measured point by a suitable way.
2. Start power switch (at the bottom, put to right for power on and to left for
power off); the buzzer of the module will be Bee...Bee alarm before it is
linked with the Bluetooth of smart phone.
3. Active the relative APP (Android) and follow manual to link with the sensing
module , For examples:
To active the "SP_BT_DEMO" APP in the smart phone (Android OS); to
3.1
link with the sensing module by clicking the "Start" icon. If it is the first
time operation, that need "Pairing" process between the module and smart
phone. it will be automatic linked in the next time.
