APEXRA APHP-12-2 Service, Installation And Operation Manual page 16

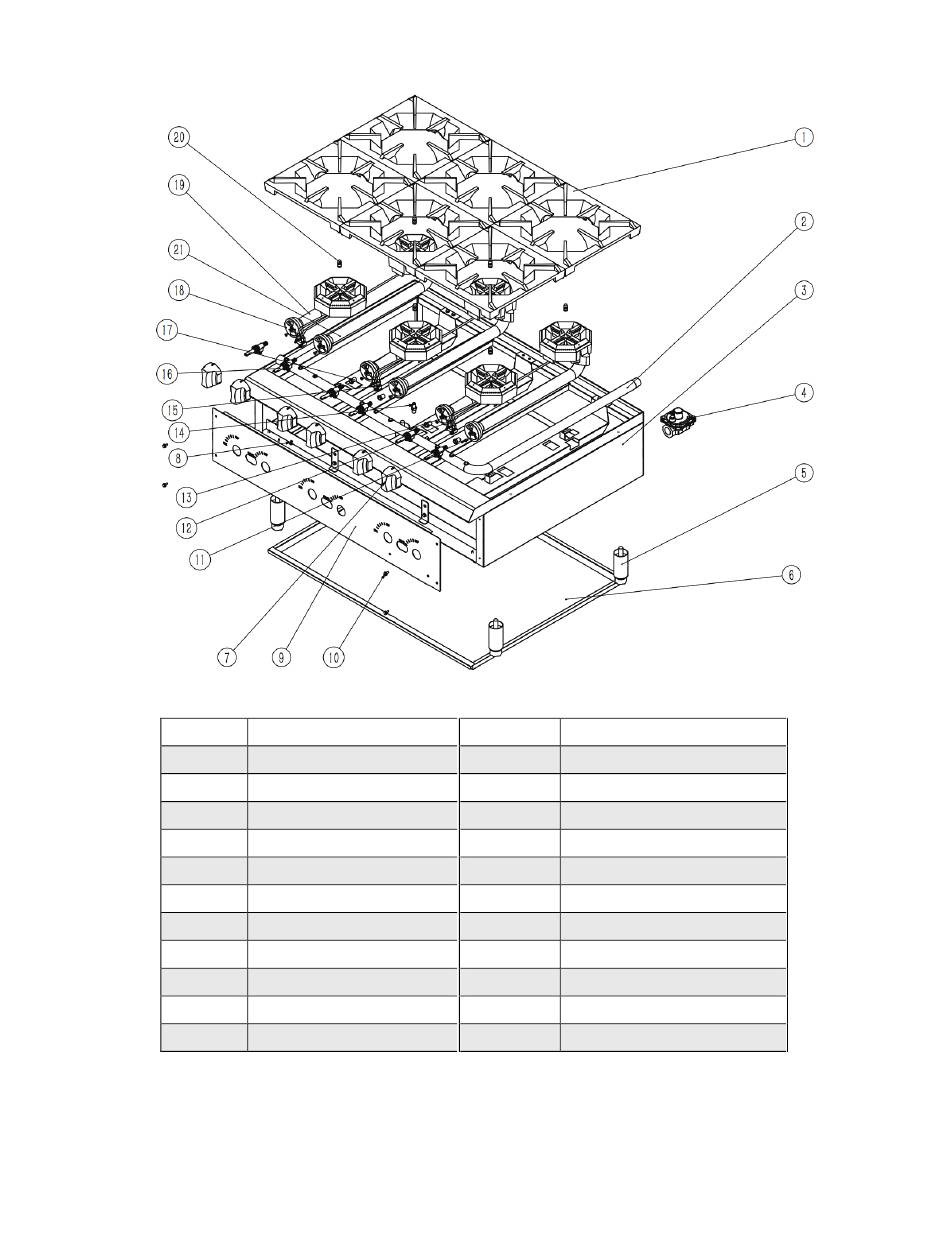

EXPLODED VIEW & PARTS LIST (cont.)
36" 6-Burner
No. Description
1
Cast iron top grate
2
Manifold pipe
3
Burner hanger
4 Gas regulator
5
Adjustable feet
6
Crumb tray
7
Burner knob
8
Nut
9 Front cover control panel
10
Nut
11
Nut
No.
12
13
14
Gas pressure nozzle
15
16
17
18
Air shutter mixer
19
Open burner - Front venturi
20
21
Open burner - Rear venturi
Page 16
Description
Pilot pipe (rear)
Pilot pipe (front)
Pilot valve
Burner valve
Burner orifice
Pilot light
