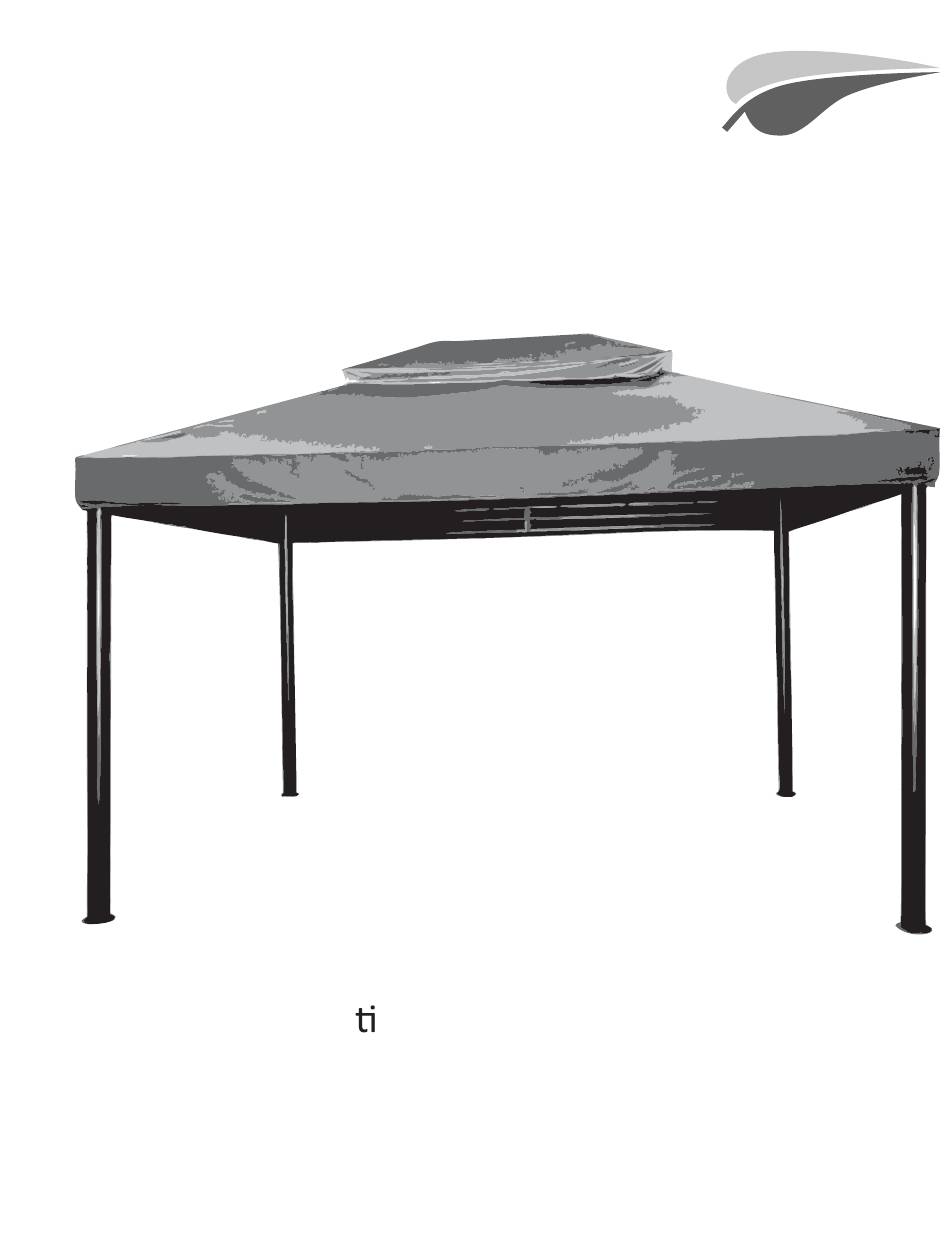

- Page 1 Heritage Gazebo Agora Outdoor Living Item Number: PC-15000 Design and Manufacture by Pacifi c Currents Inc. Assembly Instruc ons and Owner’s Manual (Actual canopy top colors may vary) Dimensions: 10’ W x 13’ L x 10’ H...
-
Page 2: Prepare The Work Area
4. You do not need to disassemble the gazebo during winter months. However, to prevent damage to the frame and canvas top due heavy snow loads, remove the canvas top and store it in a dry loca on un l spring. 2012 PC-15000... - Page 3 Parts Iden fi ca on (Note: Not drawn to Scale) PC-15000 2012...
- Page 4 2012 PC-15000...
- Page 5 ***Important*** For missing or defec ve parts, Do NOT return to the place of purchase. Call our toll free number below or visit www.pacifi ccurrents.com. Please have your sales receipt ready when you call. 888-474-2770 PC-15000 2012...
- Page 6 M6 x 50mm Length Bolt Bolt Set [x 8] How to use Hardware Bolt and Washer Assembly Bolt and Washer Assembly (Parts Q and R) (Part S) Snap on Nut Cap Washer Washer Washer Snap on Bolt Cap 2012 PC-15000...
- Page 7 Assembly Instruc ons Step 1 Assemble the Main Beams [x 4] [x 2] [x 2] [x 2] [x 2] [x 8] PC-15000 2012...
- Page 8 Step 2 Assemble the Four Main Beams to Poles [x 4] B & C D & E [x 4] [x 2] [x 2] [x 16] B + C D + E D + E B + C 2012 PC-15000...
- Page 9 Push the snap lock into the tube Step 1: Push in the snap lock using a Step 2: Push the damaged snap lock into using the ground stake. ground stake. the part using ground stake. Install new snap lock using Step 3: ground stake. PC-15000 2012...
- Page 10 Step 4 Con nued Assemble Corner Bars to Top and Main Beams [x 4] 2012 PC-15000...
- Page 11 Step 4 Con nued Assemble Corner Bars to Top and Main Beams [x 4] PC-15000 2012...
- Page 12 Step 5 Assemble the Top Middle Link Rod to Top Connector [x 4] [x 4] [x 4] [x 8] 2012 PC-15000...
- Page 13 Step 6 Stake the Poles [x 4] [x 8] Step 7 A ach the Cover [x 1] [x 1] PC-15000 2012...
- Page 14 Step 8 A ach Top Cover to Cover [x 1] [x 1] A ach air vent ne ng onto canopy with velcro 2012 PC-15000...
- Page 15 Step 9 Unzip Bug Screen Ne ng into 4 Pieces [x 1] Unzip Unzip Unzip PC-15000 2012...
- Page 16 Step 10 A ach and Secure Bug Screen Ne ng (Op onal) Install bug screen and/or sun shade Inside Tie ne ng onto colums using cords. Inside Outside 2012 PC-15000...
- Page 17 Step 11 Unzip Sun Shade to 4 Pieces [x 1] Unzip Unzip Unzip PC-15000 2012...
- Page 18 Step 12 A ach and Secure Sun Shade (Op onal) Install bug screen and/or sun shade Outside Tie ne ng onto colums using cords. Inside Outside 2012 PC-15000...
- Page 19 Step 13 Zip Sun Shade Pieces Together Zip 2 pcs ne ng together Outside Outside Slide ne ng to corners if desired. PC-15000 2012...
- Page 20 OPTION A Zip Up Bug Screen, Tie Back Sun Shade If desired, use straps to keep Sun Shade open Zip 2 pcs ne ng together Inside 2012 PC-15000...
- Page 21 OPTION B Open Both Bug Screen and Sun Shade Tie 2 pcs ne ng together Slide ne ng Inside to corners PC-15000 2012...
-
Page 22: Care Instructions
The canvas top is not waterproof. However, a waterproofi ng spray (not included) may be used to prevent rain water infi ltration. The canvas top MUST be removed and stored in a dry location in the event of snow fall. Accumulated 2012 PC-15000... -
Page 23: Year Limited Warranty
Please contact us should you have any questions concerning assembly, care information, warranty coverage, and missing or defective parts. Email: info@pacifi ccurrentsinc.com Customer Service: Website: www.pacifi ccurrentsinc.com (877) 276-1486 Enjoy your new gazebo and thank you for choosing a Pacifi c Currents Inc. product! PC-15000 2012...
