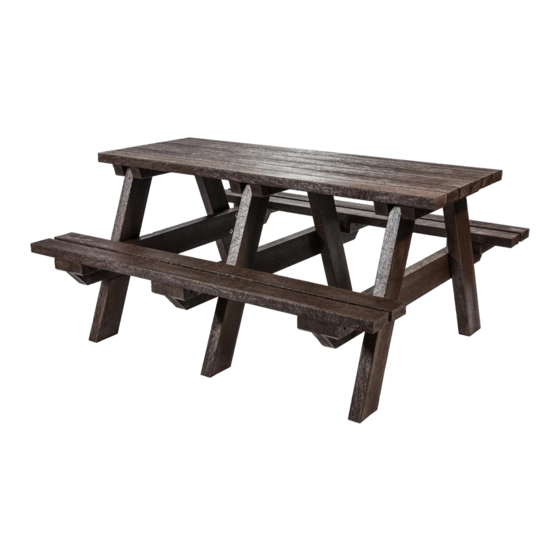

Berry Plaswood Hero A Frame Table - Adult Assembly Manual

PARTS LIST - 2 PERSON ASSEMBLY:-
A PRE-ASSEMBLED TABLE TOP 1 no.
B END A-FRAME 2 no.
C MIDDLE A-FRAME 1 no.
D PRE-ASSEMBLED SEAT 2 no.
E 70mm BRASS SCREWS 58 no.
F 70mm S/STEEL SCREWS 28 no.
A
BEGIN ASSEMBLY WITH TABLE TOP
TURNED UPSIDE DOWN
ADULT PICNIC TABLE:
Assembly Guide - 1 of 2.
TOOLS:-
POWER DRILL WITH PHILIPS-HEAD BIT
MEASURING TAPE & STRAIGHT EDGE
C
B
E
14 no
B
E
4 no
F
4 no
E
14 no
F
4 no
FIX A-FRAMES TO TABLE TOP USING 70mm SCREWS
THROUGH PRE-DRILLED HOLES IN FIXING BARS
BEFORE FULLY TIGHTENING ALL SCREWS CHECK THAT
THE PICNIC TABLE IS SQUARE BY MEASURING ACROSS
THE DIAGONALS
E
4 no
F
4 no
E
4 no
E
14 no
IMPORTANT! - ONLY SCREW
E
HALFWAY IN AT THIS STAGE
4 no
& FULLY TIGHTEN WHEN
SEATS ARE TO BE FIXED
PW-HERO-APT-A4-S1 C 06/08/2019
IMPORTANT:-
Ensure that you are familiar with these assembly
instructions prior to commencing assembly.
We will not accept any claims resulting from
products that have been wrongly assembled.
Employ safe lifting procedures when handling
components.
ENSURE END A-FRAMES HAVE
THE SEAT FIXING BLOCKS
FACING INWARDS AS SHOWN
Help and support:-
Please contact us using the telephone number
or email address as stated on your shipping documents.
