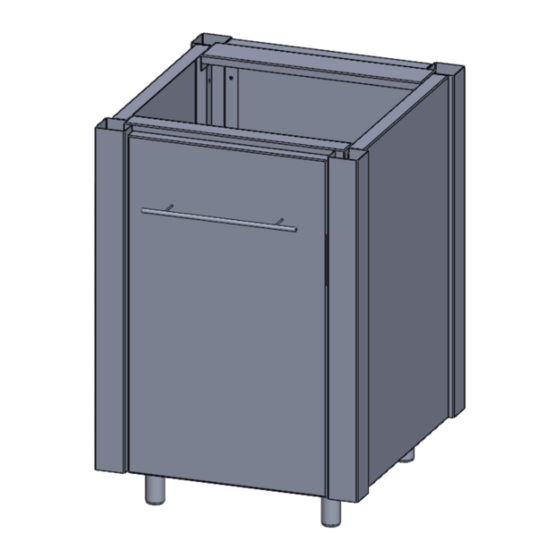

Summary of Contents for Sierra 24 INCH TRASH CABINET
- Page 1 Sierra OUTDOOR DESIGNS 2 4 I N C H T R A S H C A B I N E T For questions, problems or missing parts, please contact Cardinal Systems, Inc. Customer Service 8:00 a.m. - 5:00 p.m., EST Monday-Friday 570-385-4733 customerservice@cardinalsystemsinc.com...
- Page 2 Please contact 570-385-4733 or info@cardinalsystemsinc.com for further assistance...
- Page 3 Sierra 24 inch Trash Cabinet OUTDOOR DESIGNS Table of Contents Safety Information Safety Information ......3 Warranty ....... . 4...
- Page 4 Cardinal Systems, Inc. warrants to the original consumer purchaser that its All claims for defective cabinets or components must be submitted to Sierra Outdoor Designs cabinets are free from manufacturing defects and Cardinal Systems, Inc. in writing to warranty@cardinalsystemsinc.com. workmanship for the useful lifetime of the product.
- Page 5 Sierra 24 inch Trash Cabinet OUTDOOR DESIGNS Pre-Assembly Planning Assembly It is recommended that 2 people assemble cabinet. It is recommended to peel off protective coating in the area where the pieces meet, and leave protective coating on the rest of the areas until you are finished.
- Page 6 OUTDOOR DESIGNS Pre-Assembly - continued Parts Included for 24 inch Trash Cabinet NOTE: Parts not shown to actual size. Please check to make sure all parts are accounted for before assembling. Each part is labeled with the part number. It is recommended NOT to remove part number until after it is assembled.
- Page 7 Sierra 24 inch Trash Cabinet OUTDOOR DESIGNS Pre-Assembly - continued Parts Included for 24 inch Trash Cabinet Please contact 570-385-4733 or info@cardinalsystemsinc.com for further assistance...
- Page 8 OUTDOOR DESIGNS Assembly Figure 1 Notches Attach the front corner posts to the bottom assembly. Front Corner Post Right Parts needed for 24 inch Trash Cabinet Bottom Assembly BM2426ASSY Front corner post, right CPFR3626V3 Front corner post, left CPFL3626V3 Lock washers...
- Page 9 Sierra 24 inch Trash Cabinet OUTDOOR DESIGNS Assembly - continued Figure 4 Attach the front top panel. Parts needed for 24 inch Trash Cabinet Top Panel, Front TPF2426 Lock Washers L1-0010 ButtonSoc Cap screws L1-0002 Short Arm Hex Key Attach front top panel to both front corner posts (see fig. 4) by...
- Page 10 OUTDOOR DESIGNS Assembly - continued Figure 7 Square all the posts and tighten screws. Parts needed for 24 inch Trash Cabinet Metal Square Short Arm Hex Key Take a metal square and square up all the posts. As you square up the posts, tighten all the screws.
- Page 11 Sierra 24 inch Trash Cabinet OUTDOOR DESIGNS Assembly - continued Figure 9 Attach the side panels. Parts needed for 24 inch Trash Cabinet Side panels SP3626V3 * ButtonSoc Cap screws L1-0002 Short Arm Hex Key To attach side panels, place one of the side panels on one side and screw in all 6 ButtonSoc Cap screws in by hand on the inside of the panel and post.
- Page 12 Sierra 24 inch Trash Cabinet OUTDOOR DESIGNS Assembly - continued Figure 12 Attach the angle supports to the door. Parts needed for 24 inch Trash Cabinet Trash Door Assembly TDDP1831ASSY Left Angle Support TDASL1016 Right Angle Support TDASR1016 ButtonSoc Cap screws...
- Page 13 Sierra 24 inch Trash Cabinet OUTDOOR DESIGNS Assembly - continued Figure 14 Attach the trash drawer to the side angle supports. Parts needed for 24 inch Trash Cabinet Trash Drawer Trash Drawer Assembly TDR2426ASSY ButtonSoc Cap screws L1-0002 Short Arm Hex Key...
- Page 14 24 inch Trash Cabinet OUTDOOR DESIGNS Appendix A Attaching one cabinet to another. Parts needed for 24 inch Trash Cabinet Clips per cabinet CC125375 To attach one cabinet to another, butt cabinets up to each other. Level the two cabinets.
- Page 15 It is our mission to provide quality products for your backyard. Visit us online to see our full line of Sierra products as well as other products Cardinal Systems Inc. has to offer for your backyard entertainment.
- Page 16 Sierra OUTDOOR DESIGNS 250 Route 61 South sierraoutdoordesigns.com Schuylkill Haven, PA 17972 SC24TRSHCABINSTRX 570.385.4733...
