Summary of Contents for BlastKing V2P-12

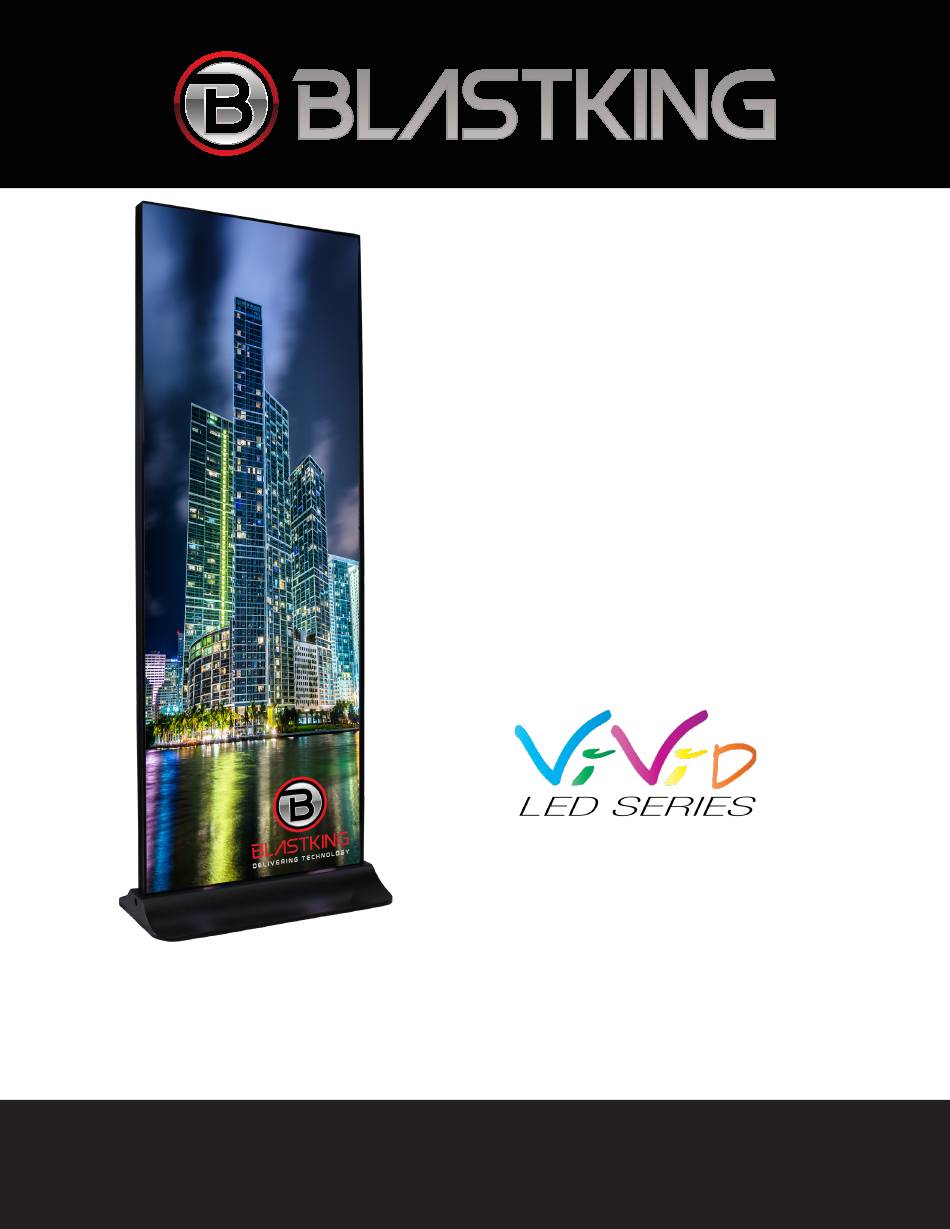

- Page 1 USER MANUAL V2P-12 V2P-12 LINK LED POSTER, PITCH 2.5MM 5.77’ X 2.09’ NOVASTAR WIRELESS CONTROLLER blastking.com...
- Page 2 Please read this entire user manual before operating thi humedad s unit All BlastKing® products purchased in the USA are protected under the regular manufacturer’s three year warranty. This warranty is intended to protect customers from any and all manufacturer defects from three years of purchase.
-
Page 3: Specifications
SPECIFICATIONS V2P-12 / V2P-12 LINK Pixel Pitch 2.5 mm Screen Size 640 x 1760 mm Resolution 256 x 768 px Power Consumption 990 / 390 W Contrast Ratio 8000:1 Viewing Angle (H/V) 160° / 160° Brightness (Nits/m²) >1000 LED’s... - Page 4 TAURUS SERIES MULTIMEDIA PLAYER TB2-4G / V2P-12 FEATURES Loading capacity up to 650,000 pixels with a maximum width of 1920 pixels and a maximum height of 1080 • pixels 1x Gigabit Ethernet output • 1x Stereo audio output • 1x HDMI 1.3 input, accepting HDMI input and allowing content to auto fit to screen •...
- Page 5 SPECIFICATIONS Electrical Parameters Input voltage DC 5 V 12V Maximum power consumption 15 W Storage Capacity 1 GB Internal storage 32 GB (28 GB available) Storage Environment Temperature –40°C to +80°C Humidity 0% RH to 80% RH, non-condensing Operating Environment Temperature –20ºC to +60ºC...
- Page 6 Description SWITCH Dual-mode switching button • Green staying on: Synchronous mode • Off: Asynchronous mode SIM CARD SIM card slot Power indicator Staying on: The power supply is working properly. System indicator • Flashing once every 2 seconds: The Taurus is functioning normally. •...
- Page 7 AUDIO AND VIDEO DECODER SPECIFICATIONS Image Category Codec Supported Image Size File Format Remarks JPEG JFIF file 48×48 pixels~8176×8176 JPG, JPEG No support for non-interlaced scan format 1.02 pixels Support for SRGB JPEG Support for Adobe RGB JPEG No Restriction...
- Page 8 Video Category Codec Supported Maximum Maximum File Format Remarks Resolution Frame Rate Bit Rate (Ideal Case) MPEG-1/2 MPEG-1/2 48×48 pixels ~ 30fps 80Mbps DAT, MPG, Support for field coding 1920×1080 pixels VOB, TS MPEG-4 MPEG4 48×48 pixels ~ 30fps 38.4Mbps AVI, MKV, No support for MS 1920×1080 pixels...
- Page 9 TAURUS SERIES MULTIMEDIA PLAYER TB4 / V2P-12 LINK FEATURES Loading capacity up to 1,300,000 pixels with a maximum width of 3840 pixels and a maximum height of 4080 • pixels 2x Gigabit Ethernet output • 1x HDMI 1.3 output, allowing for HDMI Loop •...
- Page 10 SPECIFICATIONS Electrical Parameters Input voltage AC 100 V~240 V Maximum power consumption 18 W Storage Capacity 2 GB Internal storage 32 GB (28 GB available) Storage Environment Temperature –40°C to +80°C Humidity 0% RH to 80% RH, non-condensing Operating Environment Temperature –20ºC to +60ºC Humidity...
- Page 11 Description TEMP Temperature sensor connector LIGHT Light sensor connector WiFi-AP Wi-Fi antenna connector COM1 A reserved connector COM2 A reserved connector 2x USB 2.0 Imports solutions from a USB drive for playback Only the FAT32 file system is supported and the maximum size of a single file is 4 GB.
- Page 12 VIDEO DECODER SPECIFICATIONS Image Category Codec Supported Image Size File Format Remarks JPEG JFIF file 48×48 pixels~8176×8176 JPG, JPEG No support for non-interlaced scan format 1.02 pixels Support for SRGB JPEG Support for Adobe RGB JPEG No Restriction No Restriction No Restriction WEBP WEBP...
- Page 13 blastking.com...
- Page 14 2980 NW 74th Ave. Miami, FL 33122 Phone: (305) 591-8930...
