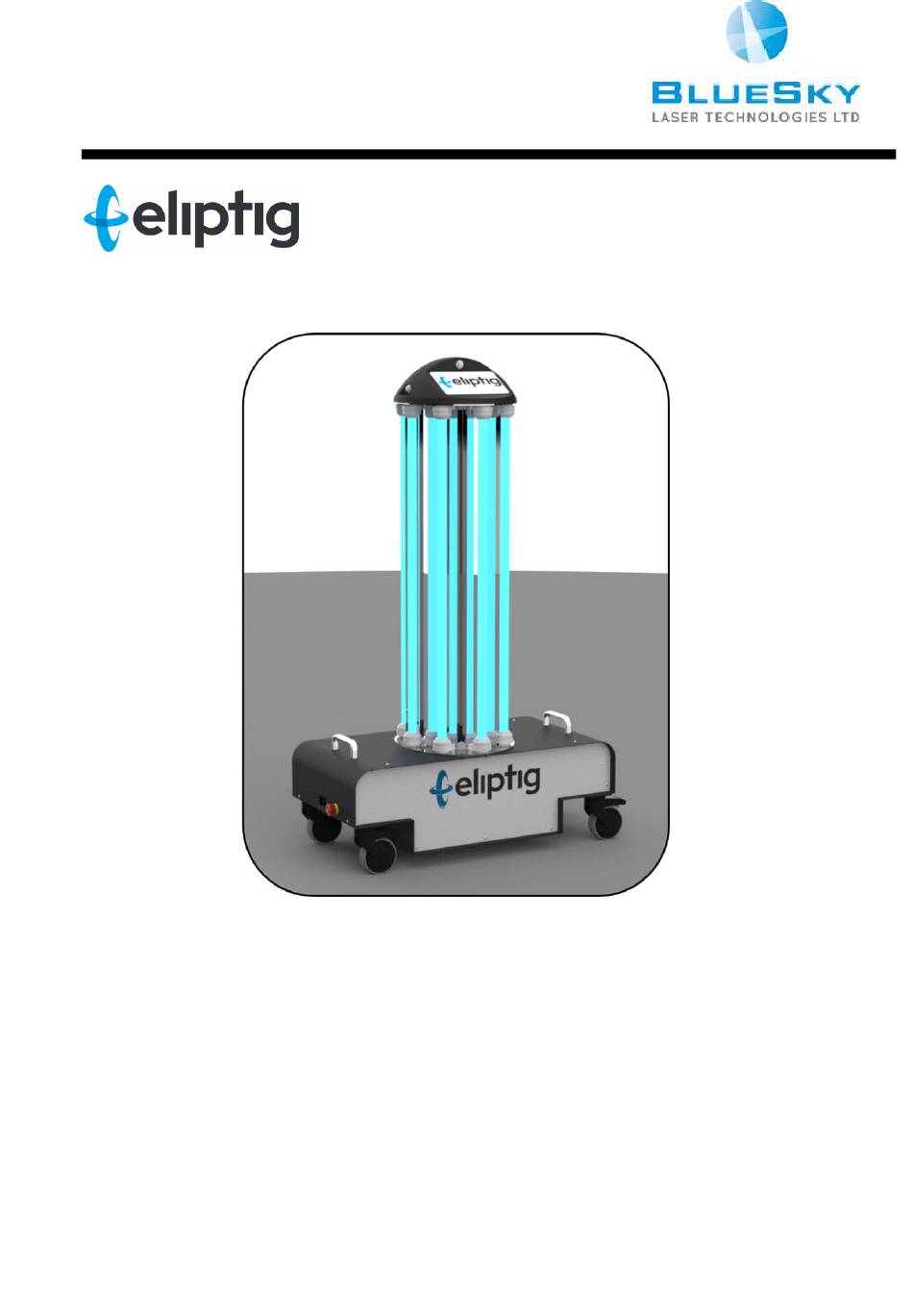

- Page 1 UVC Disinfection System User Manual • Model A00-1515_1_A (50Hz / 60Hz) S15-1006_1_A...
-
Page 2: Table Of Contents
Safety Warnings ____________________________________________________________ 3 Labelling __________________________________________________________________ 5 Labelling _____________________________________________________________ 5 Technical Specification ______________________________________________________ 6 Transportation and Installation. _______________________________________________ 7 Transport Damage. ____________________________________________________ 7 Environmental Transport & Storage Conditions. ____________________________ 7 System Operation. ___________________________________________________________ 8 General Maintenance _______________________________________________________ 11 Cleaning the Equipment _______________________________________________ 11 Visual Inspection _____________________________________________________ 11 Lamp Renewal _______________________________________________________ 11 Servicing and Maintenance Schedule ____________________________________ 11... -
Page 3: Safety Warnings
Safety Warnings The Eliptig-S is designed to emit UVC radiation at 254nm which has been proven to be highly effective at killing bacteria and viruses by destroying the molecular bonds that hold their DNA together. The Eliptig-S must only be operated in a secure environment. DO NOT operate the device while people are in the area. - Page 4 WARNING: Do not modify this equipment without authorization of the manufacturer. The manufacturer of the Eliptig-S has made every effort to provide as many safety features as possible to assure personal safety. To be effective, these safety features must be utilised and not ignored. Electrical Safety WARNING: To avoid risk of electric shock, this equipment must only be connected to a supply mains with...
-
Page 5: Labelling
Labelling Labelling UV Hazard Warning (located on base top) Emergency Stop (located on base rear) Consult Accompanying Documents (located on base front) Waste Electronic & Electrical Equipment (WEEE) (located on base rear) Manufacturers Label (located on Rear) S15-1006_1_A... -
Page 6: Technical Specification
Technical Specification Electrical Class: Class 1 Voltage (V): 100-240Vac Current (I): 100Vac, 6.5 Amps 240Vac, 3 Amps Frequency (Hz): 50/60Hz Input Power (W): 640 Watts Output UV Radiation: 140 Watts Wavelength (nm) 254nm Useful Lamp Life (Hrs) 8000 Hours User Interface: 7”... -
Page 7: Transportation And Installation
Transportation and Installation. Transport Damage. The Eliptig-S has been carefully packed and should arrive at its destination in perfect condition. Upon delivery, please check that the external packaging is not damaged. If signs of damage are present, or the shock detector labels have been activated, please report them to the shipping carrier and the Customer Service Department within 24 Hrs. -
Page 8: System Operation
System Operation. AC Input • Emergency Stop Switch IEC C14 Switched Mains • Input Module Twist to unlock clockwise • Fuses T10AH User Interface Motion Detection • 7” Touch Screen Display • 4 x Passive Infrared Sensors S15-1006_1_A... - Page 9 System State System Timer • • Adjustable in 10 • COUNTDOWN Minute Intervals • • HALTED Disinfection Time • Increase • Decrease UV Lamp Hours Remaining • 8000 Hour Lamp Life Figure 1 UV Lamps OFF State System Operation • Start / Pause •...
- Page 10 Figure 3 UV Lamps ON State Figure 4 UV Lamp Operation Halted Motion Detected (Lamps OFF) Figure 5 Remote Control Module S15-1006_1_A...
-
Page 11: General Maintenance
General Maintenance Cleaning the Equipment Before cleaning maintenance is carried out, please ensure the unit is disconnected from the mains supply. The Eliptig-S system should be cleaned by wiping with a soft, lint free cloth. Visual Inspection Before each use, inspect the lamps and mains cable for possible wear, cracks or breaks before each use. Do not use the system if the lamps or cable appear to be damaged. -
Page 12: Safe Disposal
Safe Disposal For safe disposal of the unit please contact your Distributor. Obligation to the End User WEEE Compliance Statement Introduction The Producer of this EEE passes all obligations to the ‘B2B End User’ when this EEE is subsequently discarded as WEEE. - Page 13 End User Definitions: Producer means, the Manufacturer, UK Importer and/or Re Brander means, Electrical Electronic Equipment WEEE means, Waste Electrical Electronic Equipment means, business organisation and/or institution means, Producer Compliance Scheme End User means, legal owner Purchaser means, the business, organisation and/or institution who purchased the EEE Distributed by: S15-1006_1_A...
- Page 14 Manufactured by: Blue Sky Laser Technologies Ltd. Unit 48a-49 Crofty Industrial Estate, Penclawdd, Swansea South Wales, Tel +44 (0) 1792 852878 S15-1006_1_A...
