Summary of Contents for K-Rain KR1125

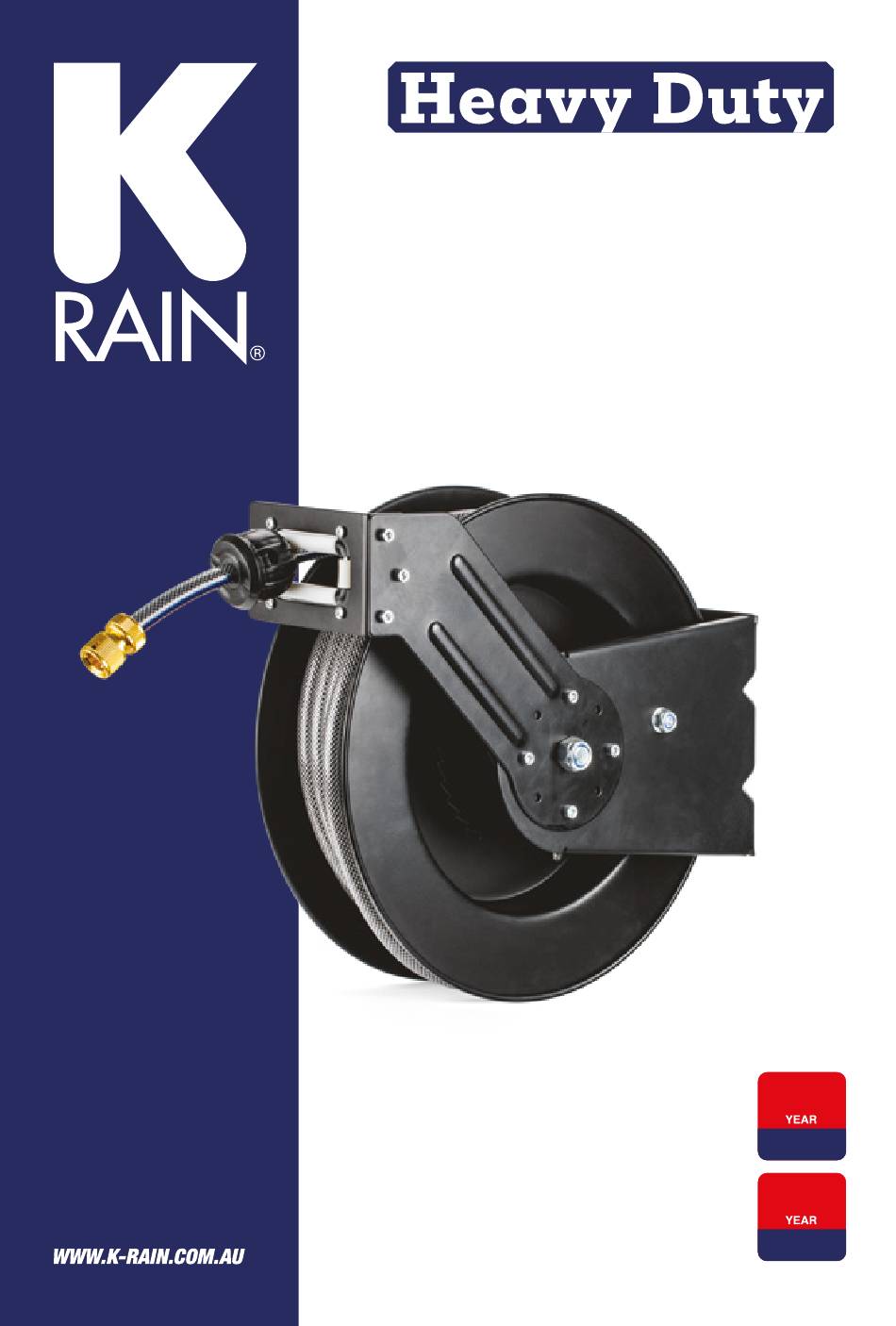

- Page 1 THE LANDSCAPER’S CHOICE RETRACTABLE HOSE REEL 20m KR1125 User REEL WARRANTY Manual HOSE WARRANTY...
-
Page 2: Table Of Contents
10 Year Replacement Warranty - Hose Made from premium THE LANDSCAPER’S CHOICE materials and ideal for vehicle mount, this Hose RETRACTABLE Reel is built with HOSE REEL 20m landscapers in mind. Scan to learn more. Product code: KR1125 3 of 16... -
Page 3: Safety Warnings
Overview Introduction Your K-RAIN 20m Heavy Duty Retractable Hose Reel uses a 12mm Premium 20m Trade Hose with a PVC core and woven reinforcing for added strength and durability, rated to 700kPa. ® This instruction manual contains useful information on the proper use and care of this product. -
Page 4: Main Components
Overview (Continued) Main Components 1. Mounting Bracket 8. Threaded Connector 2. 20m Outlet Hose 9. 4× 14mm Metal Sleeves 3. 2m Tap-to-Reel Hose 10. 4× M10 80mm Mounting Bolts 4. Guide Arm 11. 4× 10mm Washers 5. Stopper 12. 4× 10mm Spring Washers 6. -
Page 5: Features
Overview (Continued) Features Heavy duty metal Ratchet locking mechanism construction to lock in any position Ideal for vehicle mount Premium 20m Trade in utes or work vans Hose includes PVC core with woven reinforcing Reconfigure mount angles for wall, floor Tap-to-reel leader or ceiling mount hose included... -
Page 6: Installation
Installation Plan your Hose Reel Installation Wall ® Your Hose Reel should be installed nearest to your water source for convenience of use 1. Hose Reel can be mounted on the floor, ceiling or wall ® Mount Hose Reel to a load- bearing structure capable of supporting the combined Ceiling... -
Page 7: Adjusting Guide Arm
Installation (Continued) Adjusting Guide Arm 3. Rotate GUIDE ARM in 1. Pull out 1 metre of hose and allow Hose Reel 90° increments to desired to lock in position position. Replace four bolts and tighten 2. Remove the four bolts connecting GUIDE ARM [a] to MOUNTING BRACKET [b] 8 of 16... -
Page 8: Attaching The Tap-To-Reel Hose
Installation (Continued) Attaching the Tap-to-Reel Hose ® To connect the hose reel to a tap, first assemble the Tap-to-Reel Hose onto the side inlet ® Use a 17mm or shifting spanner to ensure the hose is tight and leak-free Mounting Hose the Reel 1. - Page 9 Installation (Continued) Mounting the Hose Reel (continued) 5. Tighten HEX NUTS [b] 4. When ready, drill all four onto MOUNTING BOLTS holes, then hammer MOUNTING BOLTS to splice METAL SLEEVES and METAL SLEEVES [a] and secure MOUNTING BOLTS to wall gently into wall (if attaching to a wall) ®...
- Page 10 Installation (Continued) Mounting the Hose Reel (continued) 7. Put MOUNTING 8. Tighten HEX NUTS [i] using BRACKET [d] on a spanner to secure to wall MOUNTING BOLTS [e] and fit SPRING WASHERS [f], WASHERS [g] and HEX NUTS [h] 9. Connect TAP-TO-REEL HOSE to your water source...
-
Page 11: Operation
Operation Locking the Hose Reel 1. To check if the Hose Reel is 2. To lock the Hose Reel, pull working properly, pull on on the hose and allow it to the hose slowly. The reel retract after 1 to 3 clicks will click at every half revolution of the drum Retracting the Hose Reel... -
Page 12: Maintenance
Maintenance Heavy Duty Hose ® Maintain the product with care. Inspect hose periodically and, if damaged, have it repaired by an authorized technician Á Do not leave the water turned on with the hose under pressure when not in use Á... -
Page 13: Warranty
Warranty 2 Year Replacement Warranty - Reel Holman offers a 2 year To the extent permitted by law, this Holman replacement guarantee Replacement Guarantee excludes liability with this product. for consequential loss or any other loss or REEL WARRANTY damage caused to property of persons In Australia our goods come arising from any cause whatsoever. -
Page 14: Year Replacement Warranty - Hose
Warranty (Continued) 10 Year Replacement Warranty - Hose Holman offers a 10 year To the extent permitted by law, this Holman replacement guarantee Replacement Guarantee excludes liability with this product. for consequential loss or any other loss or HOSE WARRANTY damage caused to property of persons In Australia our goods come arising from any cause whatsoever. - Page 15 This will ensure we have a copy of your purchase and activate an extended warranty. Keep up to date to with relevant product information and special offers available through our newsletter. Scan here, or visit k-rain.com.au/register for more info...
