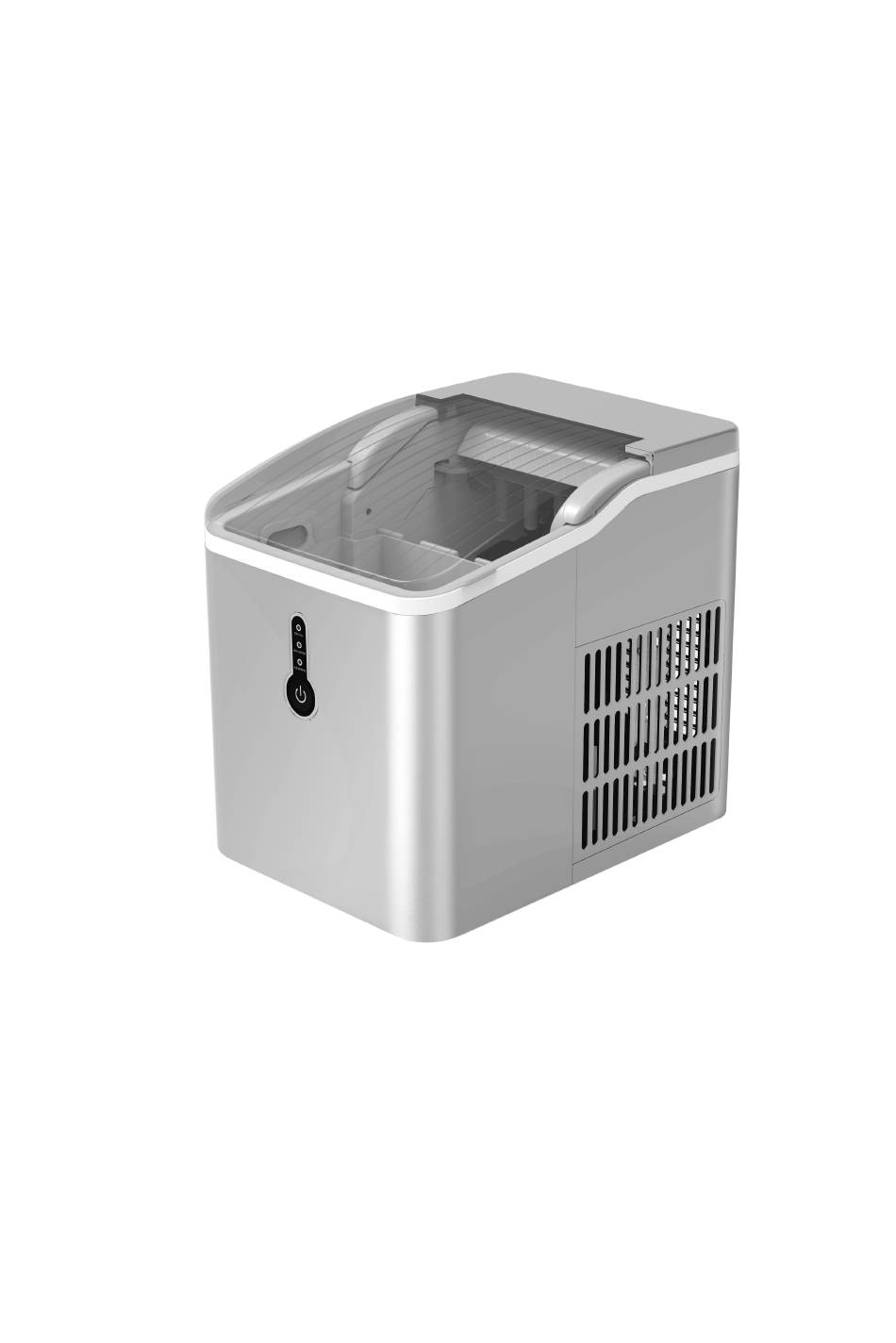

- Page 1 INSTRUCTION MANUAL ICE MAKER Item no: Z3912-SILVER Model no: ICM1241 THANK YOU FOR CHOOSING OUR ICE MAKER PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING...
-
Page 3: Important Notices
IMPORTANT NOTICES When using an electrical appliance, please follow the following safety precautions to reduce the risk of fire, electric shock, and injury: 1. Read all instructions before using. 2. Remove all packing material and carefully check your ice maker to ensure that it is in good condition and that there is no damage to the ice maker, power cord, and plug. - Page 4 appliance. Children should be supervised to ensure that they do not play with the appliance. 13. Do not use the appliance close to flames, hot plates, or stoves. 14. Do not frequently switch on the power button (at least five minutes in between) to avoid damage to the compressor.
- Page 5 WARNING: When positioning the appliance, ensure the power supply cord is not trapped or damaged. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Children should be supervised to ensure that they do not play with the appliance.
-
Page 6: Specifications
SPECIFICATIONS Model No: ICM1241 Daily ice output: 12kg/24 hours Ice storage capacity: 1.5L/600g Refrigerant: R600a Compression-type refrigeration: 120V/60Hz Water tank capacity: 1.5 L Voltage: 120V Frequency: 60 Hz Power consumption: 120 W Max overall dimensions (L×W×H): 320X 225X300mm Packing dimensions (L×W×H): 354X 270X 335mm N.W: 7.75kg... - Page 7 DESCRIPTION ⒒ ⑪ ① ⒓ ⑩ ⑫ ② ⑨ ③ ④ ⒔ ⑬ ⑤ ⑦ ⒕ ⑭ ⑥ ⑦ ⒖ ⑮ ⑧ ⑨ ⑩ 1. Micro switch support 9. Front housing 2. Evaporator 10. Ice shovel 3. Water Tray 11. Top cover 4.
- Page 8 PACKING LIST Description Quantity Ice shovel Ice collecting tray User manual polybag Bubble FEATURE Quick ice making Prompt when the ice is full, and water is insufficient Bullet ice Nine pcs ice can be made in eight minutes 1.
-
Page 9: Control Panel Operation
CONTROL PANEL OPERATION ICE FULL: Ice full alarm ADD WATER: Water shortage alarm ICE MAKING: Ice making 1). When plugged in, the "ICE MAKING" indicator flashes. Once the power button is pressed, the "ICE MAKING" indicator is always on, and then the ice maker makes ice blocks automatically. After the ice- making process completes, the deicing process starts, and then the ice-shoveling function kicks in. - Page 10 3). ICE FULL: Ice full alarm When the ice reaches the maximum capacity of the ice storage container, the "ICE FULL" light flashes, and the machine stops. At this time, the ice needs to be poured out. When the ice position is lower than the full sensor position, the machine restarts automatically.
- Page 11 not let the ice overflow the ice basket. CLEANING & USE GUIDANCE 1. Clean the inner liner, ice collecting tray, water box, ice shovel, and evaporator frequently. When cleaning, unplug the unit and remove the ice cubes. Use a diluted solution of water and vinegar to clean the inside and the outside surfaces of the ice maker.
-
Page 12: Troubleshooting
TROUBLESHOOTING Please note: if a power failure occurs due to the disconnection of the power cord, or the power button has been switched off during an ice-making cycle, small ice chips may be formed and lodge in the automatic shovel causing it to jam. The ice chips can be removed by carrying out the following steps: first, disconnect the power cord;... - Page 13 3. Fan motor damaged 1. Water tray is blocked Unplug the power to take out the by ice cube ice which blocking the tray, then All indicators twinkle 2. The motor is stuck, or plug the power and press the simultaneously the motor falls off, or the POWER button, the machine will...
- Page 14 6. Children should be supervised to ensure that they do not play with the appliance. 7. Do not immerse the ice maker in water. Correct Disposal of this product This marking indicates that this product should not be disposed of with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of...
- Page 16 Thank you for purchasing this product! If you have any questions about the product, such as missing parts, damaged products, product assembling, and operation, please contact us via Amazon Message or customer service number: 213-4467172 or 661-4358826 IMPORTANT Please call our customer service department for any consulting: 213-4467172 661-4358826 (8:30am - 5:30pm P.S.T.)
