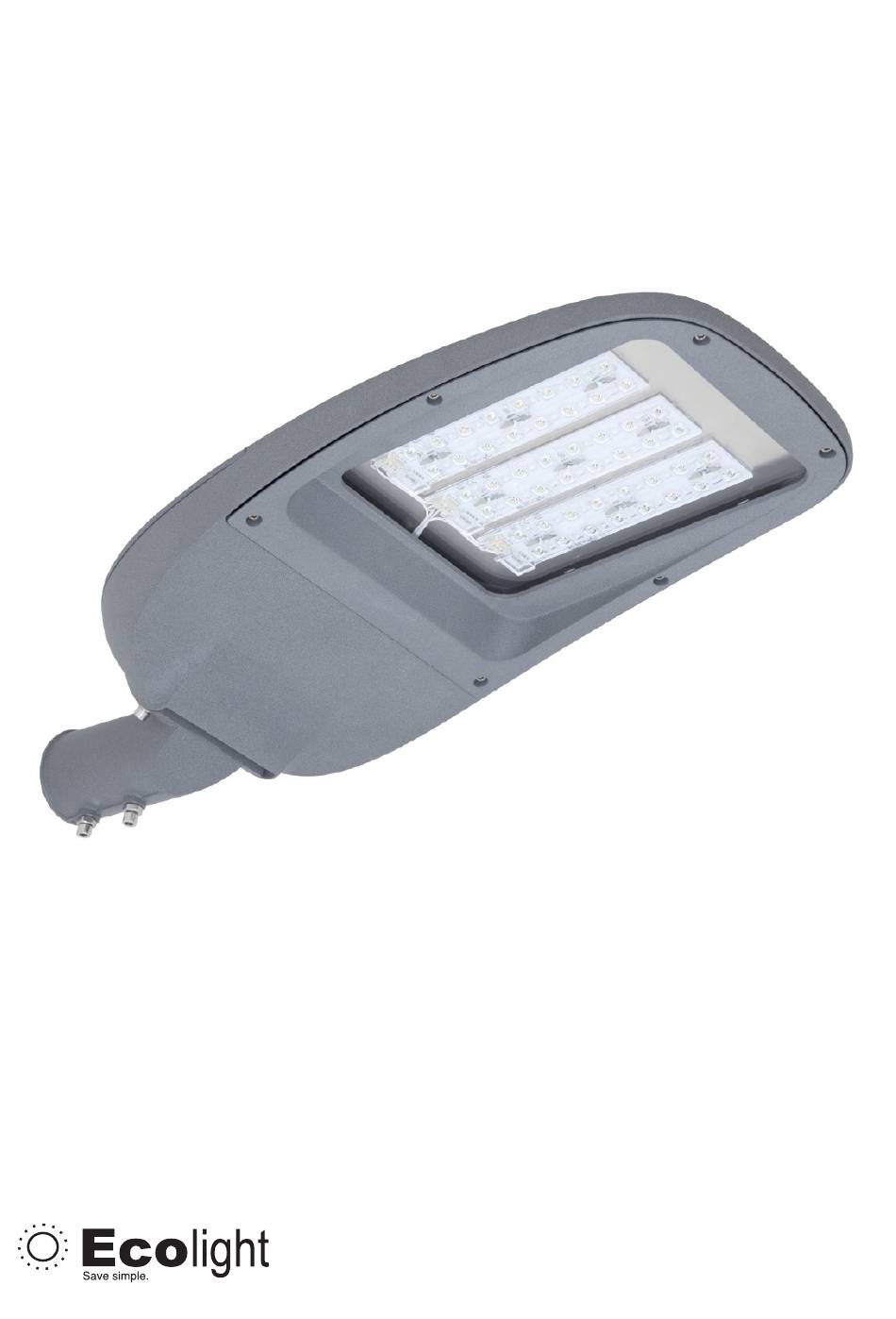

Energy Efficient LED Lighting
موفرة للطاقةLED إضاءة
Taupusis šviestuvas
User's Manual / / دليل املستخدمNaudojimo
instrukcija
Models / / املوديالتModeliai
ST-1M/6000, ST-2M/6000, ST-3M/6000, ST-4M/6000
It is suggested to read this installation manual and follow instructions prior to installation. Incorrect installation and
misuse may render the warranty invalid.
.ﯾ ُوﺻﻰ ﺑﻘراءة ھذا اﻟدﻟﯾل واﺗﺑﺎع اﻟﺗﻌﻠﯾﻣﺎت اﻟواردة ﻓﯾﮫ ﻗﺑل اﻟﺗرﻛﯾب. ﻗد ﯾؤدي اﻟﺗرﻛﯾب ﻏﯾر اﻟﺻﺣﯾﺢ وﺳوء اﻻﺳﺗﺧدام إﻟﻰ إﻟﻐﺎء اﻟﺿﻣﺎن
Prieš atliekant bet kokius šviestuvo montavimo darbus rekomenduojama atidžiai perskaityti šią instrukciją. Neteisingai
sumontavę ar naudodami šviestuvą ne taip kaip aprašyta šioje instrukcijoje, galite netekti gaminio garantijos.
ELEKTROS TAUPYMO SPRENDIMAI, UAB
Didlaukio str. 94-22, Vilnius 08332, Lithuania
E: info@ecolight.lt T: +370 5 2328207 F: +370 5 2784262
W: www.ecolight.lt, www.ecolight-lights.co.uk
Advertisement
Table of Contents
Related Manuals for ecolight ST-1M/6000
Summary of Contents for ecolight ST-1M/6000
- Page 1 Prieš atliekant bet kokius šviestuvo montavimo darbus rekomenduojama atidžiai perskaityti šią instrukciją. Neteisingai sumontavę ar naudodami šviestuvą ne taip kaip aprašyta šioje instrukcijoje, galite netekti gaminio garantijos. ELEKTROS TAUPYMO SPRENDIMAI, UAB Didlaukio str. 94-22, Vilnius 08332, Lithuania E: info@ecolight.lt T: +370 5 2328207 F: +370 5 2784262 W: www.ecolight.lt, www.ecolight-lights.co.uk...
- Page 2 .اﻻﻟﺗزام ﺑﺗرﻛﯾب ﺟﻣﯾﻊ اﻟوﺣدات ﺑﻣﺎ ﯾﺗﻣﺎﺷﻰ ﻣﻊ اﻟﻣواﺻﻔﺎت اﻟﻛﮭرﺑﺎﺋﯾﺔ اﻟﻘﯾﺎﺳﯾﺔ اﻟﻣﺣﻠﻲ اﻟﻣﻌﻣول ﺑﮭﺎ ﺣﺎﻟ ﯾ ًﺎ ، أو وﻛﻼؤھﺎ أي ﻣﺳؤوﻟﯾﺔ، ﺳوا ء ً ﺻرﯾﺣﺔ أم ﺿﻣﻧﯾﺔElektros taupymo sprendimai, UAB (ECOLIGHT) ﻻ ﺗﺗﺣﻣل ﺷرﻛﺔ . ﺑﺷﺄن أي ﻋواﻗب ﺗﻧﺟم ﻋن اﻟﺗرﻛﯾب ﻏﯾر اﻟﻣﻧﺎﺳب أو اﻟﻣﺗﮭﺎون أو ﻏﯾر اﻟﺻﺣﯾﺢ...
- Page 3 MANUFACTURERS DECLARATION OF CONFORMITY / / إعالن املطابقة للشركة املصنعةGAMINTOJO ATITIKTIES DEKLARACIJA This is to certify that the products described in this manual complies with the requirements of the Low Voltage Directive 2006/95/EEC, EN 60598-1, EN 60598-2-3. Products described in this manual also complies with the requirements of the European Electromagnetic Compatibility (EMC) Directive 2004/108/EEC: EN55015 for radio disturbance, EN61547 for EMC immunity and EN6100-3-2 for harmonics.
- Page 4 TECHNICAL SPECIFICATION / / املواصفات الفنيةTECHNINIAI DUOMENYS Dimensions (mm) Area (mm Wattage Ref. Weight (up to) ST-1M/6000 4,95 kg 0,0306 0,0373 ST-2M/6000 100W 6,75 kg 0,0415 0,0394 ST-3M/6000 150W 7,45 kg 0,0415 0,0394 ST-4M/6000 200W 10,85 kg 0,0598 0,0552 MOUNTING OPTIONS / ...
- Page 5 INSTALLATION / / التركيبĮRENGIMAS ELECTRICAL INSTALLATION WARNING! Luminaries should only be installed by competent technical personnel. Do not use electronic screwdrivers for opening the lid. Min torque for lid screws is 4 Nm. Lighting fittings are delivered with 3 pole terminal block which is inside the fitting. In RADIUS LED models this terminal block can be accessed by removing cover.
- Page 6 240 V black (BK) yellow-green blue (BU) brown (BN) Version without cable: standard connector 0,5Nm Max 2,5 mm 220 V 220 V 240 V 240 V The Graphic chart DALI DALI Ø 6-12 MAX 8 mm Ø 6-1 of the certification mark 220 V 220 V 240 V...
- Page 7 LIGHT SOURCE REPLACEMENT The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person. اﺳﺗﺑدال ﻣﺻدر اﻹﺿﺎءة .ﯾﺟب اﺳﺗﺑدال ﻣﺻدر اﻹﺿﺎءة اﻟﻣوﺟود ﻓﻲ وﺣدة اﻹﻧﺎرة ﻓﻘط ﻣن ﻗﺑل اﻟﺷرﻛﺔ اﻟﻣﺻﻧﻌﺔ أو وﻛﯾل ﺧدﻣﺎﺗﮫ أو ﺷﺧص ﻣؤھل ﻣﺷﺎﺑﮫ ...
- Page 8 MAINTENANCE / / اعمال صيانةAPTARNAVIMAS Luminaire does not require special service, the design of the luminaire ensures the proper operation of the luminaire throughout its life according to the intended technical characteristics without continuous maintenance. However, it is recommended to clean the luminaire glass once a year using warm water mixed with a non-chlorine cleaning agent (e.g.
