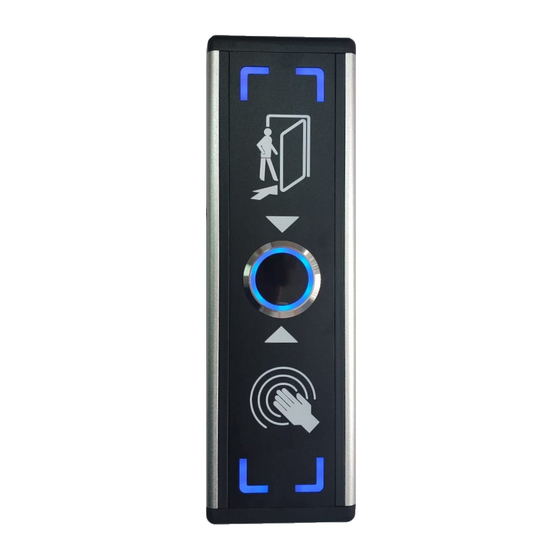

ES-80 Exit button
Features
1. Obvious indicators around the edges of the unit.
Activate without pressing to prevent any
2.
disease contagion. It is suitable for access
control system that widely used in public
areas such as hospitals or restaurants.
3. Built-in buzzer .
4. Input power range from DC12-24V
5. Easy to assemble, 2 set of output points to
connect other equipment.
Specifications
Model
Item
Power supply
DC 12V~DC 24V
DC 12V/30mA(Standby)/45mA(Operation)
Operation current
DC 24V/20mA(Standby)/30mA(Operation)
Buzzer
Enable/Disable
Dual-color (Blue and green) .
Indicator
Output
N.O.&N.O. / N.C&N.C. (Maximum load of 1A@30VDC / 0.3A@125VAC )
Weight
600g
Dimensions
90mm(L)x93mm(W)x45mm(H)
Material
PC& Aluminum
Connections
Installation Manual
ES-80
Back
Adjustable dooropening time
(Default:MIN.)
Short
VR
Long
Near
VR
Far
Adjustable range
1
Note
5%
5%
5%
(Default:MAX.)
Indicator&Output
5PIN
VER17.03.09
Advertisement
Table of Contents
Related Manuals for Soca ES-80
Summary of Contents for Soca ES-80

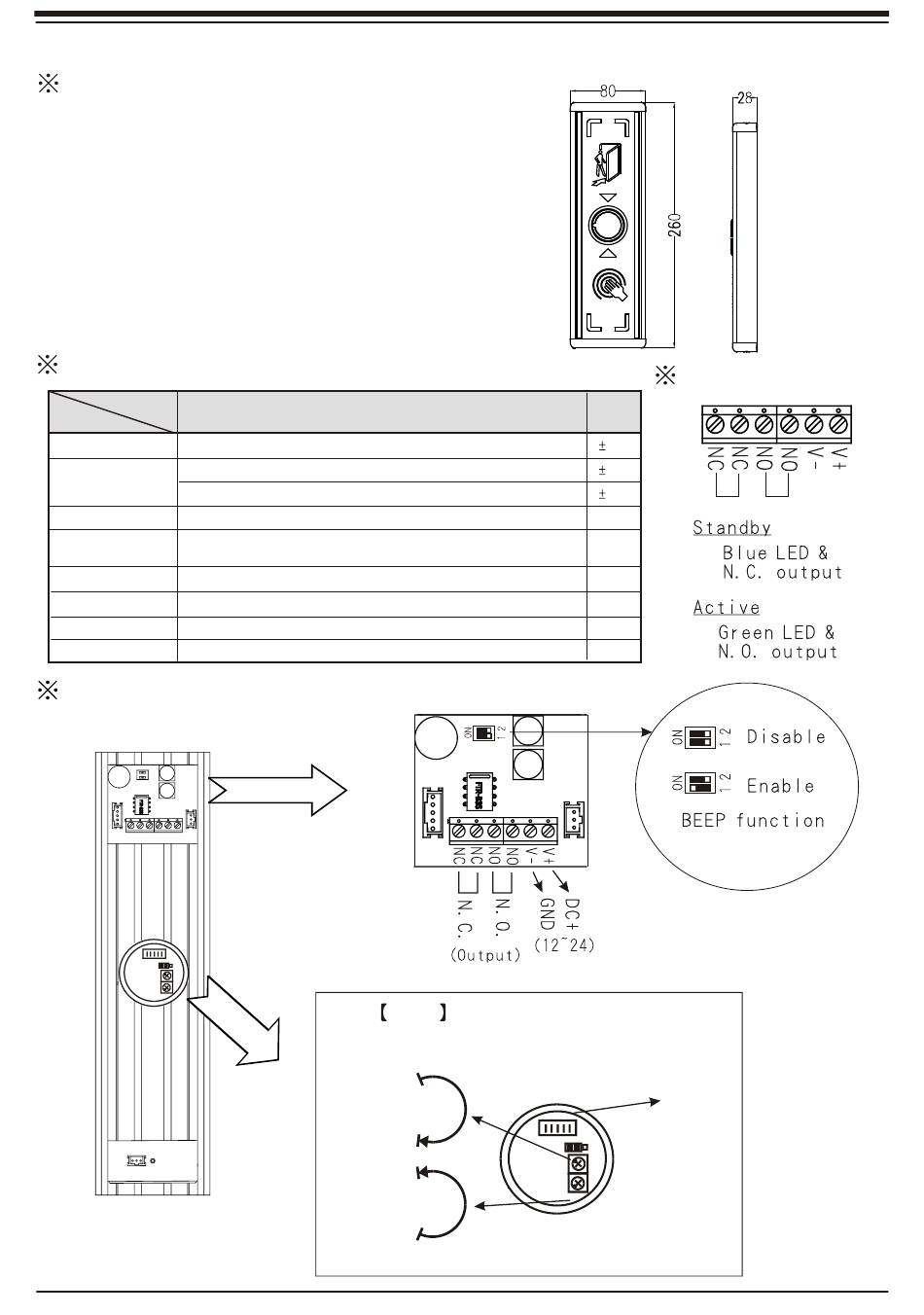

- Page 1 ES-80 Exit button Installation Manual Features 1. Obvious indicators around the edges of the unit. Activate without pressing to prevent any disease contagion. It is suitable for access control system that widely used in public areas such as hospitals or restaurants.
- Page 2 Example of wirings electric lock 12~24V Exit Device Input Proximity reader or controller Installation VER17.03.27...
