Summary of Contents for Tone King Ironman

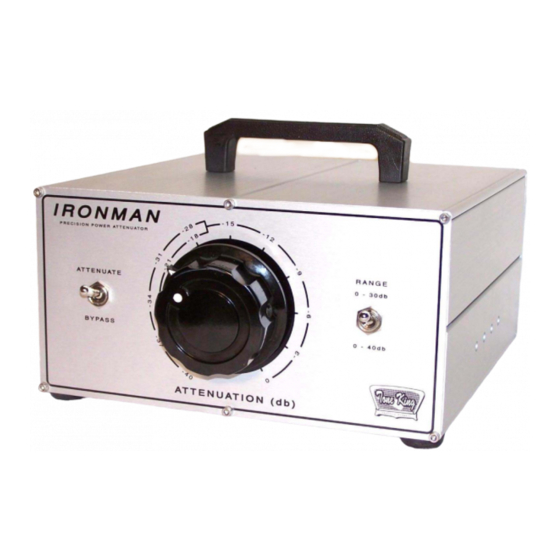

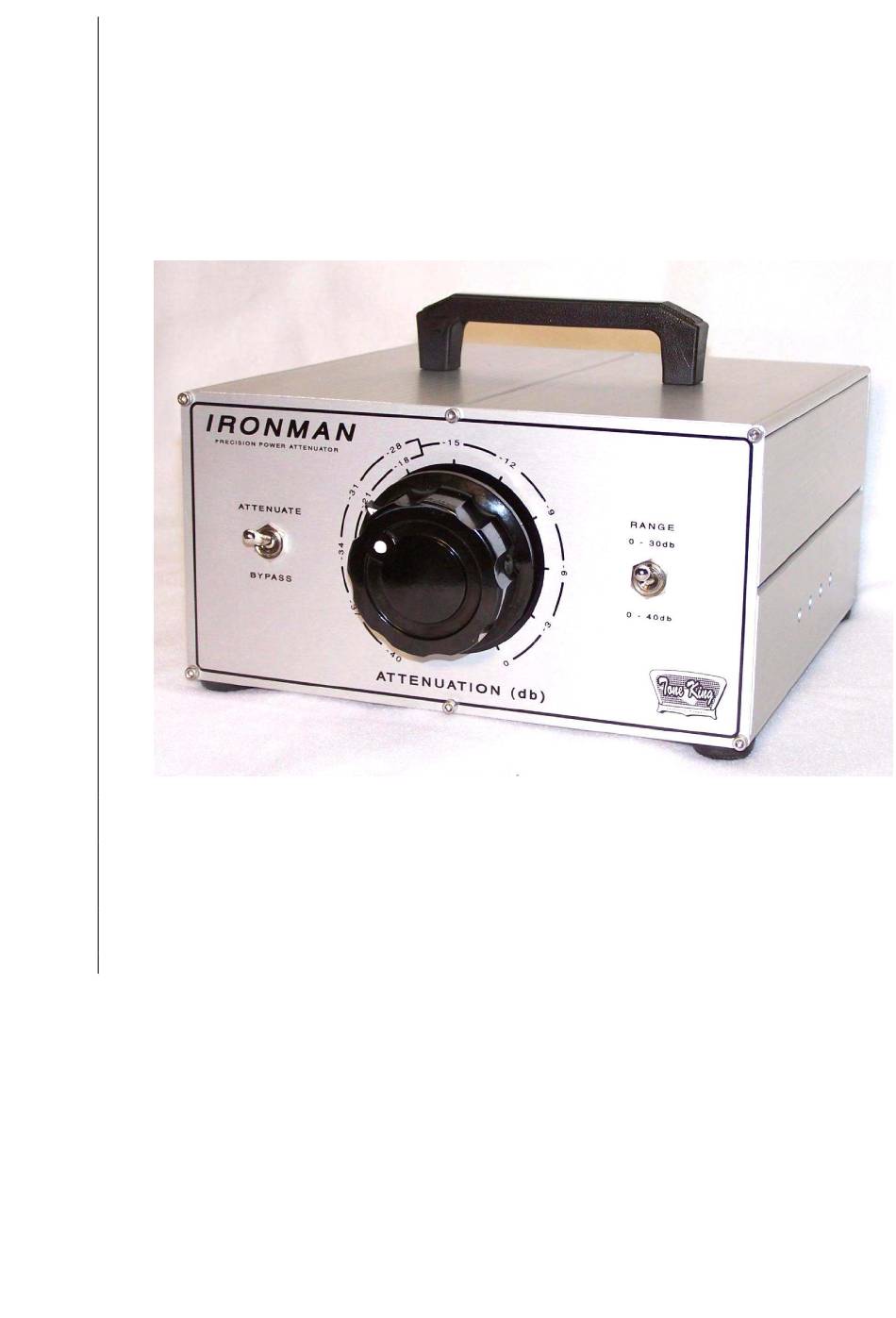

- Page 1 Tone King “Ironman” Tone King “Ironman” Tone King “Ironman” Tone King “Ironman” User’s Manual User’s Manual User’s Manual User’s Manual 7/23/2013 Tone King Amplifiers A division of Premier Builders Guild LLC 4401 Eastern Avenue, Bldg 46-3G, Box 38 Baltimore, Maryland 21224 www.toneking.com...
- Page 2 I thank you for your purchase of the Ironman, and I hope you enjoy using as much as I Best Regards,...
- Page 3 Safety Instructions (Important !) Safety Instructions (Important !) Safety Instructions (Important !) Safety Instructions (Important !) 1. Please read these instructions, and keep them for reference. 2. Please follow all instructions described here. 3. Do not use this apparatus near water. 4.
-
Page 4: Table Of Contents
Attenuate / Bypass Switch Attenuation Knob & Range Switch 2. Back Panel Controls Amplifier Input Speaker Connections Line Out 3. Using the Ironman Purpose Impedance Matching Adjusting the Controls Use as a Dummy Load What to Expect When Attenuating 4. Warranty... -
Page 5: Front Panel Controls
The maximum possible attenuation is -40db. At this setting, nearly all the power from the amplifier is dissipated in the Ironman, and very little is sent to the speaker. At this setting, you can safely unplug the speaker, and use the Ironman as a dummy load. - Page 6 You'll notice that the Attenuation dial is split into two ranges at the left side of the knob. The Range switch selects between these two ranges, as follows: Range Switch: 0-30db setting The attenuation values shown at left in red are available when the Range switch is in the 0-30db position.
-
Page 7: Back Panel Controls
Ironman, simply set the Speaker Impedance switch to match that speaker's impedance. If you are connecting two speakers to the Ironman, it is best to use two speakers with the same impedance. If you do this, then the total combined impedance will be 1/2 of each speaker's impedance. -
Page 8: Line Out
Line Out Line Out The Ironman's Line-Out jack (5) provides a line-level signal that can be used to drive another amplifier, mixing board, computer sound input, or any other line level input. The specs for this output signal are as follows: Output Level: approx. -
Page 9: Using The Ironman
Use as a Dummy Load Use as a Dummy Load The Ironman may be used as a dummy load, to provide a proper load for your amplifer, with no speakers attached. This is typically done in recording, where the Ironman's Line-Out will be used to drive a mixing board, or when an amplifier is being "slaved"... -
Page 10: What To Expect When Attenuating
What to Expect When Attenuating What to Expect When Attenuating Although the Ironman attenuator does an excellent job of reducing output power without changing the tone of the amp’s circuitry, there are other variables in play at lower volume which do result in some apparent tone change. Here are a few factors... -
Page 11: Warranty
What We Will Pay For The Tone King Amplifier Company will pay for all labor and material expenses to fix or replace all items covered under this warranty. The customer will pay shipping charges to return the product to the Tone King Amplifier Company.
