U-Line H-10131 Quick Start Manual

π
H-10131

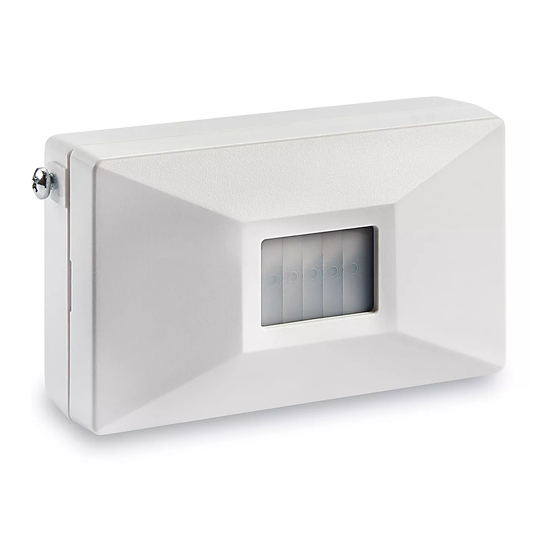

DOOR CHIME
NOTE: Battery is not included.
NOTE: Unit can be mounted to ceiling, above
door jamb or side mounted.
NOTE: Unit should be positioned on ceiling 1'
in from door and pointing down toward door
threshold. If side mounting, position unit on wall
approximately 1' from door.
WARNING: Avoid placing motion detector near
heating or air conditioning ducts and direct
sunlight.
WARNING: Keep at least 3' away from
fluorescent light ballast. This may cause false
signals or no signal at all from detector.
1. Open unit at the slot on the side. (See Figure 1)
NOTE: Inserting a flathead screwdriver will help
pry open the box.

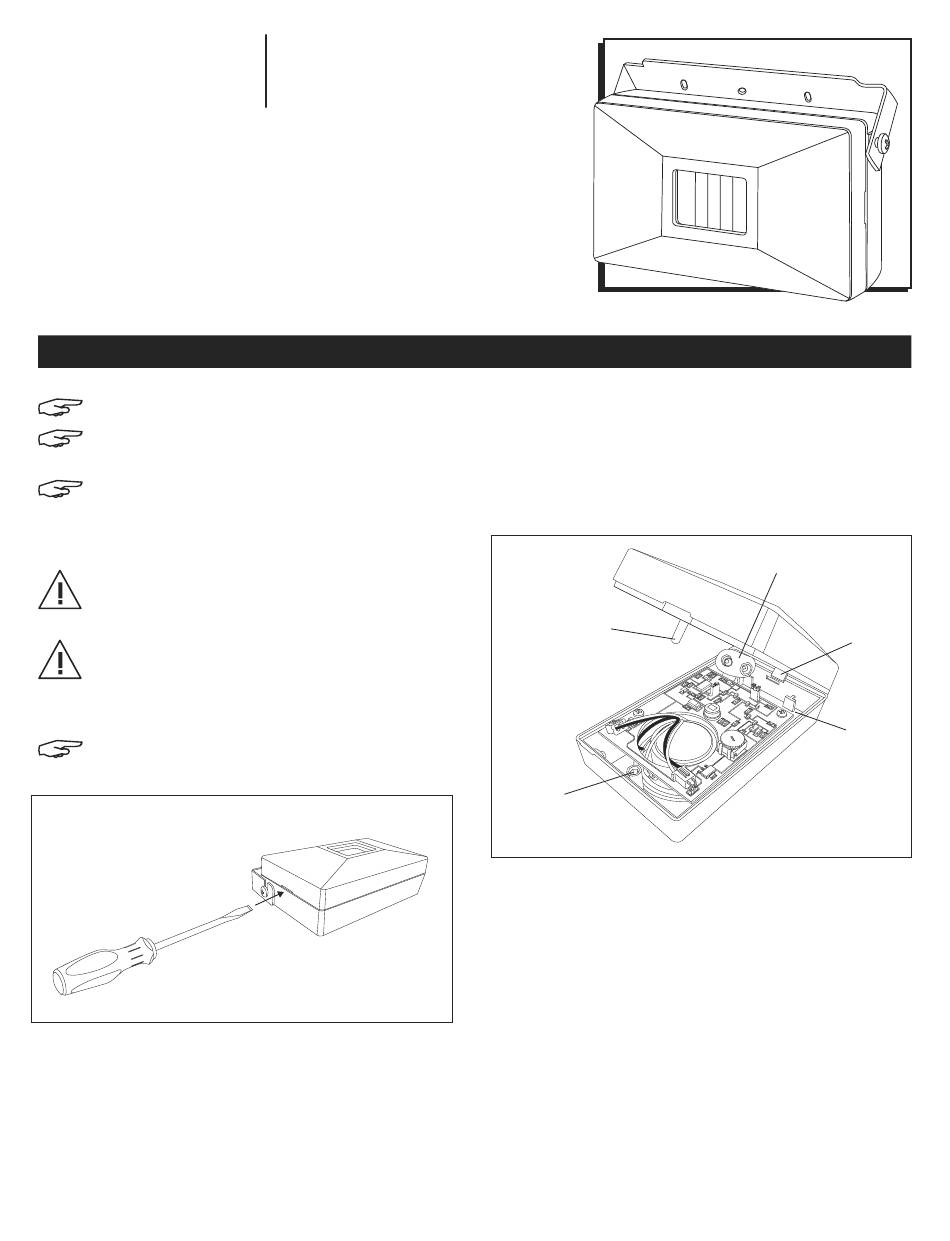

Figure 1
PAGE 1 OF 3
1-800-295-5510
uline.com
INSTALLATION
2. Remove the cover and attach battery snaps to the
9V battery (use alkaline battery for longer life). Place
battery into battery holder.
3. Replace cover by placing cover hook into slot,
inserting pin into hole and squeezing closed.
(See Figure 2)
Figure 2
Pin
Pin Hole
Para Español, vea página 2.
Pour le français, consulter la page 3.
Battery Snaps
Cover
Hook
Battery
Holder
0622 IH-10131
