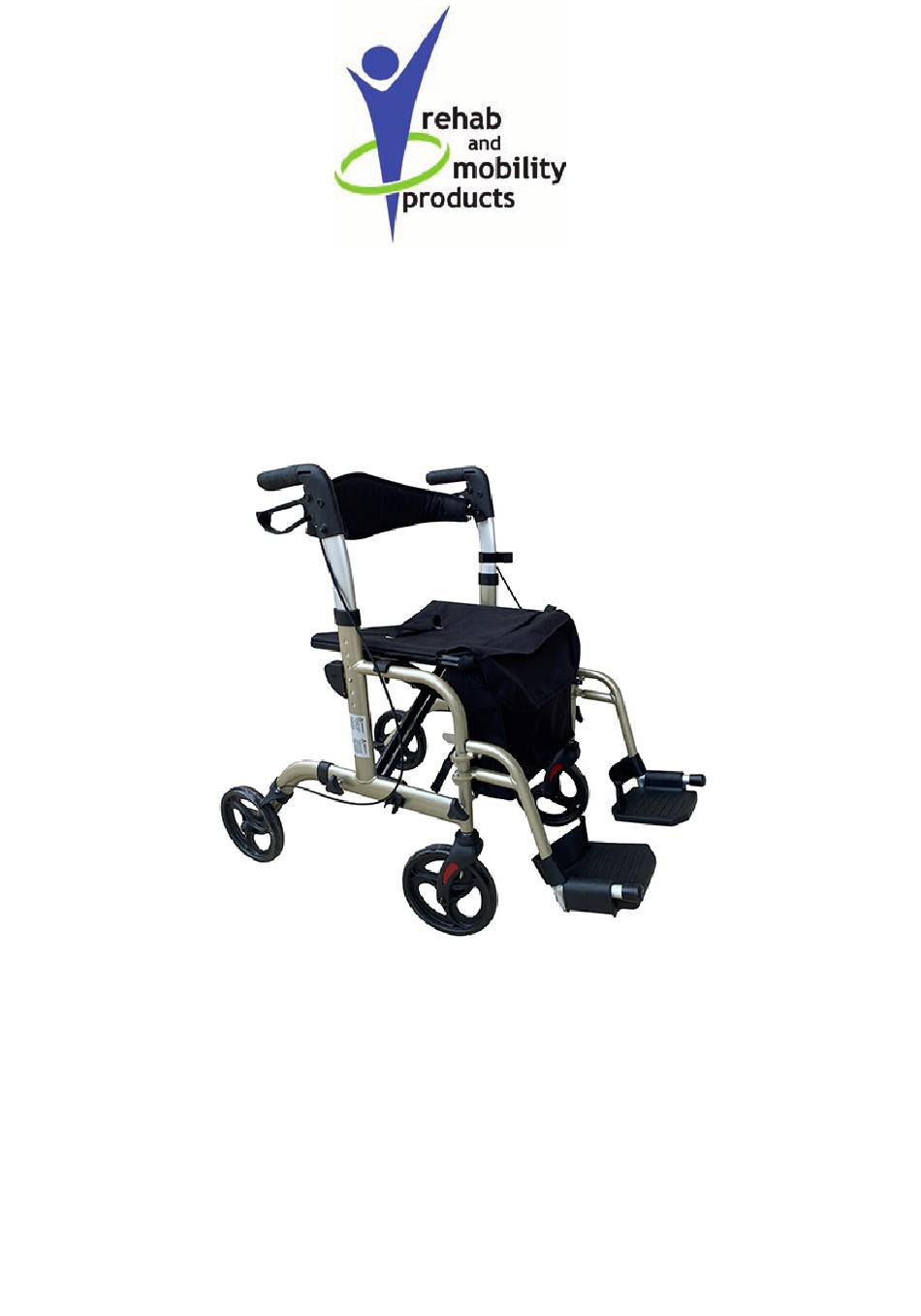

- Page 1 Aluminium 4-Wheeled Rollator/Transporter Chair RM199 Rollator Usage and Maintenance Instructions This file is available to view and download as a PDF at www.rehabandmobility.com.au Sight impaired customers can use a free PDF Reader (such as adobe.com/reader) to zoom in and increase the text size for improved readability.
- Page 2 N.B. This equipment must be installed by a competent person. RM199GD Gold Aluminium Rollator 110kg weight limit RM199R Red Aluminium Rollator 110kg weight limit 110kg weight limit RM199B Blue Aluminium Rollator Do not exceed the weight limit stated - doing so could put the user at risk. BEFORE USE •...
- Page 3 ASSEMBLY INSTRUCTIONS Carefully remove all packaging, including the cardboard tubes covering the knurled tube part of the brake assembly. Check the product thoroughly for damage or obvious faults. If you suspect the unit to faulty, please do not use, but contact your supplier immediately for service.
- Page 4 ASSEMBLY INSTRUCTIONS (continued) Step 1: fig. 1 fig. 2 Install front wheel into receptacle located on the front of the frame (see fig. 1) Thread bolt through holes on rollator frame, attach star head clamp knob and tighten (see fig. 2) Repeat step 1 to attach the second front wheel Step 2:...
- Page 5 ASSEMBLY INSTRUCTIONS (continued) Step 4: Slide the canvas tabs of the shopping bag onto the hooks located on the sides of the chair (see fig. 6) Use the longer ‘hook and loop’ canvas straps to attach the bag to the uprights of the fig.
- Page 6 ASSEMBLY INSTRUCTIONS (continued) Step 7: To fit the footrests align the holes in the footrest brackets with the lugs on the front legs and lower into position (see fig. 13) Swing the footrests inward to lock them (see fig. 14) When you hear the spring loaded catch click, the footrests are locked (see fig.15) Step 8: To adjust the height of the footrests, loosen the nut on the base of the footrests, set...
- Page 7 BRAKE ADJUSTMENT fig. 19 Your RM Rollator brake system will require periodic adjustment. To adjust the brakes loosen Nut B and then screw/unscrew Nut A. When adjusted re-tighten Nut B. If further adjustment is required then loosen the Locking Screw and then using a pair of pliers pull the cable down by approximately a millimetre.
- Page 8 CARE AND MAINTENANCE & YOUR OBLIGATION (continued) 2. Keep your RM Rollator clean by wiping down with a damp cloth with a mild detergent. Do not under any circumstances use an abrasive or solvent based cleaner, as this will seriously damage the Rollator and void your warranty. 3.
