SF-H67P/H52P

SF-67P/52P

Operation Manual

Table of Contents

Need help?

Do you have a question about the SF-H67P and is the answer not in the manual?

Questions and answers

Summary of Contents for SF SF-H67P

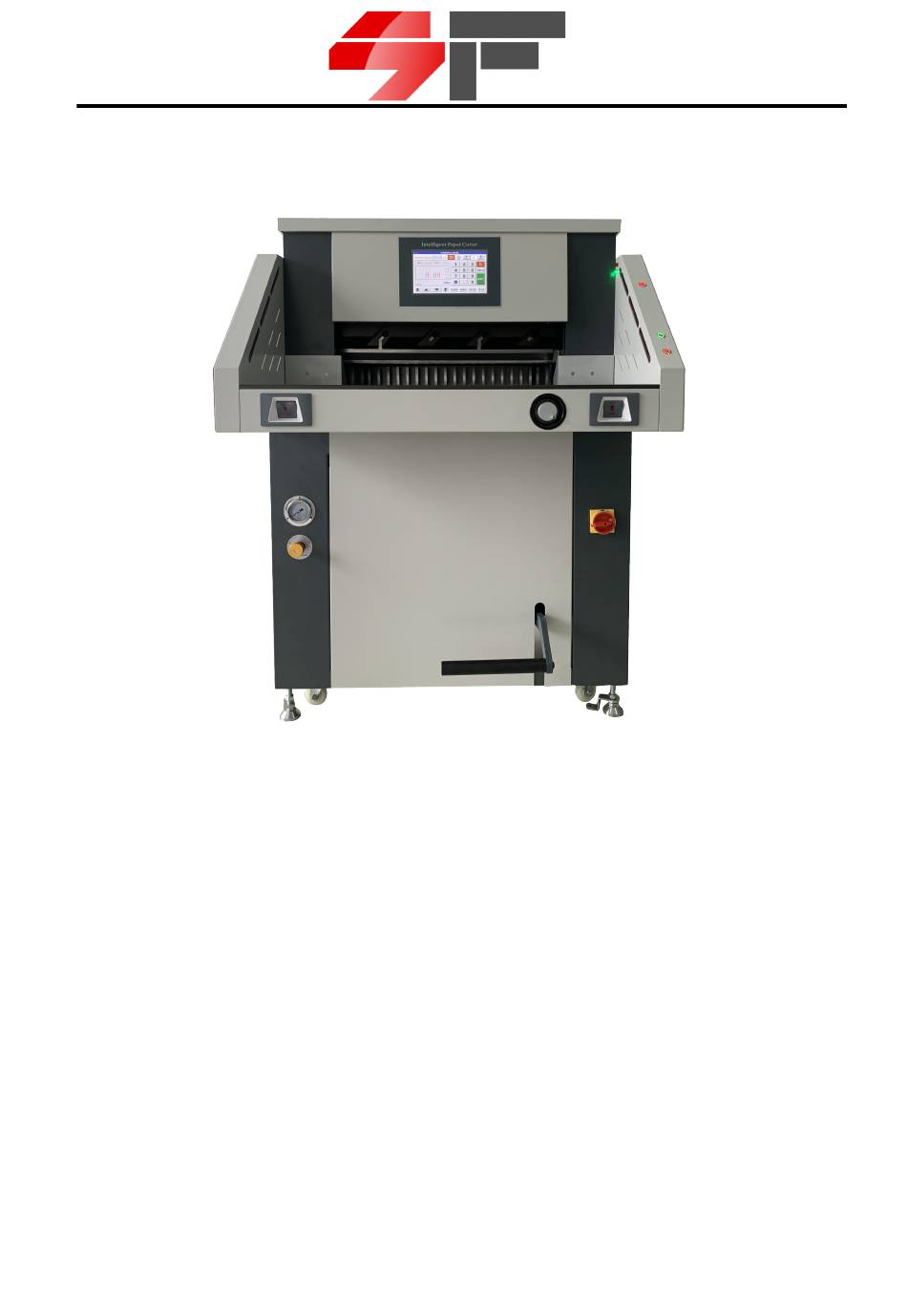

Page 1 SF-H67P/H52P SF-67P/52P Operation Manual...
Page 3 Warning: This kind of machine is allowed to cut printed paper, books or soft leathers only. It is forbidden to cut any metal sheets or other hard objects which do harm to the machine quality. Children must not operate this machine. Do not reach beneath the blade.
Page 4 Do not cut hard materials or materials which may splinter. Paper clips or hard materials will damage the cutting blade. Note: Please read this manual carefully before use the machine. It will help you improve the work efficiency, bring into play the function of the machine, prolong the service life of the machine.
Page 5: Safety Cautions
Safety Cautions According to relevant standards, to avoid accident and injury, only professional operator is allowed to operate this machine(children or non-professional operators are forbidden to use). When you use or maintenance these machines, please pay high attention to safety cautions below: Handling and Placement As the machine is heavy, please handle it carefully and put it horizontally on the...
Page 6 Must use socket with ground wire connected. Leakage protection switch, non-professional person is not allowed to open, avoid dangerous. QC670BC/QC520BC Electrical control cabinet SF-H67P/SF-H52P Electrical control cabinet...
Page 7: Table Of Contents
Content Warning............................1 Safety Cautions...........................3 Chapter I Safety cautions before installation................6 1. Check machine ……………………………………………………......6 2. Settlement of the machine………………………………………………………..6 3. Environmental conditions…………………………………………………………..6 4. Special suggestion…………………………………………………………………..7 Chapter II Brief instruction of the paper cutter..............8 1. Parts description……………………………………………………………………...8 2. Performance features………………………………………………………………...8 3. Principal technical parameter………………………………………………………...9 4.
Page 8: Chapter I Safety Cautions Before Installation
Chapter I Safety cautions before installation 1. Check machine When you open the package of the machine, firstly please check the machine with relevant accessories. Please contact the dealer if there is any damage or shortage. Machine 1 set Operation Manual 1 set Tool 1 set Maintenance warrant 1 piece Cutting blade 1 piece...
Page 9 4. Special suggestions Remember only one professional operator is allowed to work on the machine; When your hands or other things into the cutting area, turn off the power immediately; Two hands operation is needed; Please do not disassembly infrared safety cover; When replace cutting blade, you should firmly comply with the blade replace instruction;...
Page 10: Chapter Ii Brief Instruction Of The Paper Cutter
Chapter II Brief instruction of the paper cutter 1. Parts description 2. Performance features ◆Standard models 1. Steel knife holder 2. Ductile iron adjustment plate 3. Aviation aluminum hard anodized platform 4. Double ball screw and double guide rail 5. Stepping closed-loop motor to push paper, 0.28KW 6.10 inch touch screen 7.
Page 11: Principal Technical
11. Mechanical pedal 12.220V, single-phase, 2.2KW motor input, with inverter, to 380V, three-phase output 13. Dual hydraulic system 14. Configure the air pump 15. Optional auxiliary platform Principal technical parameter SF-H67P SF-H52P SF-67P SF-52P Max cut width (mm) Min cut depth (mm)
Page 12: Cutter
4. Operating the cutter 4-1 Operating button and functions Wired up, turn the power switch “ON”. Screen and cut position light work, back gauge reset automatically, which means the machine is ready for working. Operate Way: Stand in front of the machine, with both hands pressing two CUT Buttons at same time.
Page 13: Operation For The Touch Screen
4-2 Operation for the touch screen 4-2-1 Touch screen 1. Numerical mode Enter the number you want, press “ENT”, the back gauge will go to the position you want and machine gets to cut, for example, if you want to cut a length of 270.50, enter the number 270.5 in the touch screen and press “ENT”...
Page 14 3. Segment mode 4 parameters to be set: the max length, first length, the second length and third length. Set the max length same with current size. After setting the max length, another three lengths can be set: for example, the first one is 10mm, second one is 20mm, the third one is 25mm.
Page 15: Chapter Iii Basic Operation And Adjustment
Chapter III Basic operation and adjustment 1. Basic operation 1-1 Turn on the machine ◆Make sure there is nothing else but the papers to be cut, clean the machine firstly; ◆Plug the machine to socket for 380V/220V +/- 10%, 50Hz, 4Kw; ◆Turn on the electric control, turn the main power to “ON”...
Page 16: Basic Adjustment
4) When finishing cut, press “PUSH” key to push the papers or books out(if you have set push function it will be done automatically after every cut), then a cut is completed. 2. Basic Adjustment 2-1 Cutting depth adjustment Down arrow key to adjust cutter depth increase Up arrow key to adjust cutter depth reduction Turn to blade change, as follows...
Page 17: Blade Replacement
longer the pressing time. 2-2 Blade replacement( Be more careful to operate) Go to “System Setting” as follows, press “Cutter change” ◆ Press cut buttons, the blade comes down; ◆ wo open notched fasten screw(see 1) on the blade carrier; ◆Release t Take off the fasten screws, except No 2 screw;...
Page 18: Hydraulic System Troubleshooting
Adjust or change the stick if deep slash; ◆ ◆Reinstall the stick flat on cutting desk after taken out; Set cutter stick lean to the left side; ◆ Note: Adjust blade after changing cutter stick for service life. 2-4 Pressure adjustment ◆Press cut switches with both two hands, the clamp will be down to compress the paper, showing pressure in the pressure meter.
Page 19: Maintenance
moving parts. Don’t drop oil on electric circuit or electronic components. 2. Maintenance 1) Before work, Keep machine clean to avoid hard objects to damage the blade.Don’t cut book with staples. Work done, clean machine, remove debris, wax cutting blade and cut off the power. Chapter V General failures and troubleshoot Error Phenomenon...
Page 20 abnormal back gauge 2. Check the motherboard SUNFUNG TECHNOLOGY CORPORATION LTD NO 259 Wensan Road, Xihu District, Hangzhou, 310012 CHINA Tel：（86）571 85175095 Website：https://.sunfung-tech.com Email： info@sunfung-tech.com...

This manual is also suitable for:

Sf-h52p Sf-67p Sf-52p
