Symptom
Possible causes
Measurement
It is in the Peak Hold mode.
is impossible
It is in the Preset mode or Pass/Fail
mode.
Error is not
eliminated
The custom
setting screen
cannot be
started
The power is
Auto power OFF
unintentionally
turned OFF
After-sales service
○
Inspection report list
This indicates the results of accuracy and performance
inspection of the product conducted before shipment based
on our internal standards.
○
Calibration and adjustment
The torque accuracy check (calibration) and adjustment
services are available for a fee.
○
Issuance of "calibration certificate"
The calibration certificate certifies that the value indicated by the
measuring instrument is calibrated by using inspection
equipment in conformity to the standard equipment traced
against the international standards. It independently and officially
certifies the accuracy and performance of the measuring
instrument.
Contents of the calibration certificate are as follows:
a. Inspection report
b. Inspection date
c. Declaration of tracing against the international standards
d. Identification of the calibrated article (management number,
item name, model number, manufacturer and manufacturing
number)
e. Item name, model, equipment capacity of the inspection
equipment used for the calibration, and last and next
calibration dates of the inspection equipment
* The inspection report indicates results of accuracy inspection
based on KTC's standards conducted at the time of shipment,
while the calibration certificate provides information of b.
through e. above besides the inspection report.
For other inquiries about repair, etc., please contact the distributor.
27
Reference
Response
page
Press the +/c button to
19
cancel the measurement
value.
Wait for 3 seconds and
19
then it becomes ready for
measurement.
Refer to the error
25
indication list.
Refer to the custom
18
setting.
For energy saving, the
21
power is automatically
turned "OFF" after the
time set for the auto
power OFF setting.

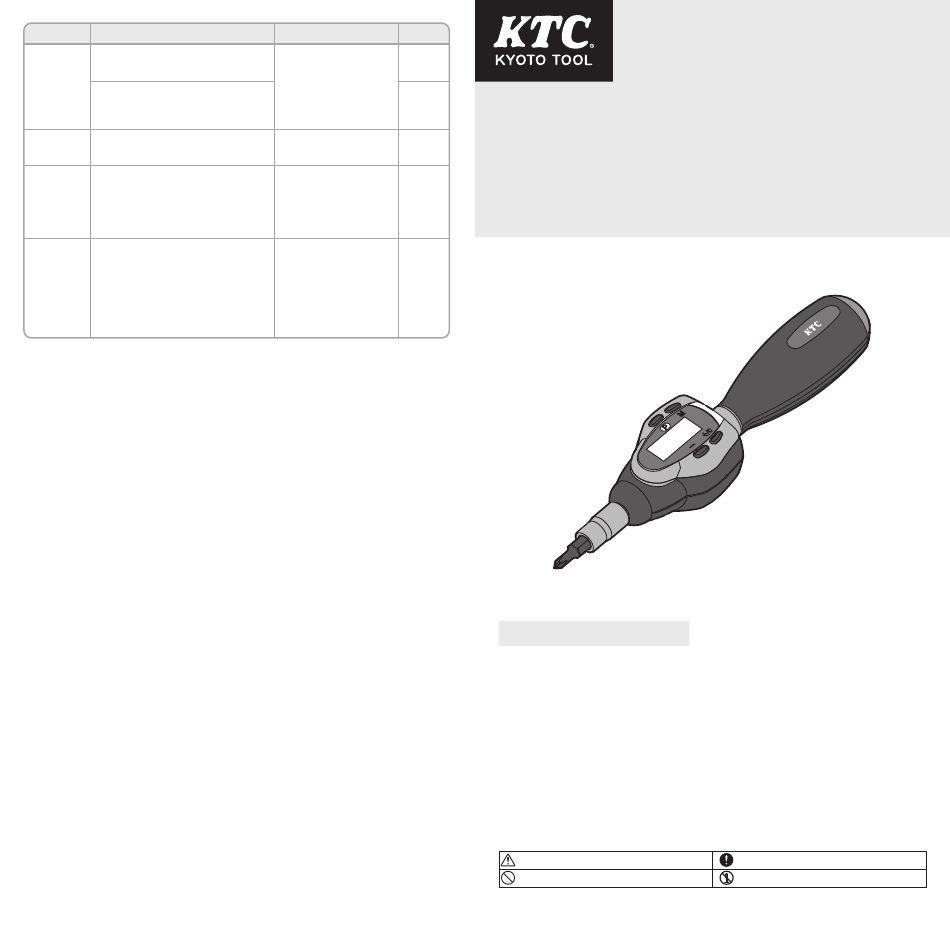

Digital Ratchet
Instruction Manual
Thank you for purchasing our product.
This product is a driver-type digital torque tool to measure the tightening torque.
Please be familiar with this instruction manual for safe use.
GLK Series Driver Type
GLK060
GLK250
GLK500
The following symbols are used in this instruction manual.
Item that may cause expansion of the damage
Prohibited activity
● Please keep this instruction manual at hand.
MUST
Must not disassembled
KYOTO TOOL
CO.,LTD.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KTC GLK Series
Summary of Contents for KTC GLK Series
- Page 1 * The inspection report indicates results of accuracy inspection based on KTC's standards conducted at the time of shipment, The following symbols are used in this instruction manual. while the calibration certificate provides information of b.
-
Page 2: Table Of Contents
Contents Features and applications of the product ....... 2 Packed contents ..............2 Product dimensions and names ........3 Before use ................5 Safety precautions ............5 How to use the main unit ..........6 Battery replacement ............. 6 Power ON/OFF............. 7 Mounting of a driver bit.......... -
Page 3: Features And Applications Of The Product
○ Applications • Measurement of tightening and loosening torque values of right-hand and left-hand screws. • Tightening work to the specified torque. Packed contents Common supplies for GLK series GLK060 Adapter socket with 6.3 sq. magnet No.1 cross bit GLK250 Dedicated resin case Calibration Certificate... -
Page 4: Product Dimensions And Names
Product dimensions and names P button M button LED lamp + (plus)/C (clear) button - (minus) button Display T2 T3 Buzzer Serial number plate Battery cover mounting screw Battery cover Adapter socket with 6.3 sq. magnet No.1 cross bit 22.5 Part number GLK060 6.3 (1/4”... - Page 5 Product dimensions and names P button M button LED lamp + (plus)/C (clear) button - (minus) button Display T2 T3 Buzzer Serial number plate Battery cover mounting screw Battery cover Adapter socket with 6.3 sq. magnet No.1 cross bit 22.5 Part number GLK250 GLK500...
-
Page 6: Before Use
Before use ○ Removal of the insulation sheet Pull out After unpacking the package, pull out the "insulation sheet" attached to the battery cover on the back of the main unit before use. The supplied battery is for inspection checks. It is not Check Pull out intended for the full-scale use of... -
Page 7: How To Use The Main Unit
Note Injury and property damages may be caused. Picture Important items Harm and damage indication ● Do not use the product in Damages may be caused. a humid place. ● Do not give strong shock on The main unit or other properties the main unit, e.g. -
Page 8: Power On/Off
3. Remove the battery cover and replace the battery with new one. Set the battery in the specified direction. Setting it in other than the specified direction may cause a malfunction or accident. 4. After replacing the battery, install the battery cover. Securely tighten the battery cover screw. -
Page 9: Mounting Of A Driver Bit
For working procedures for disassembly and assembly of work objects and handling of new parts, follow the maintenance instructions of each manufacturer, etc. ● Precautions for use of the driver type Note Injury and property damages may be caused. Picture Important items Harm and damage indication... -
Page 10: Measurement
● Besides the supplied driver bit, our "bit for plate ratchet replacement driver" (separately sold) may be attached. ● 6.3 sq. insert socket (KTC part number: B2) and bit socket (KTC part number: BT2) may substitute the adapter socket with 6.3 sq. magnet. -
Page 11: Torque Measurement
Torque measurement Note Injury and property damages may be caused. Picture Important items Harm and damage indication ● Do not apply any force out Damages or malfunction may be of the indicated range. caused. ● Do not use the product with The work object may be any failure in indications of damaged. -
Page 12: How To Use "Measurement Mode
2. Auto Clear mode (For setting procedures, refer to P. 20) A measurement value is displayed for the set time and then the indication is reset to "0 (zero)". (Adjustable between 1 to 10 seconds) 3. Track mode (For setting procedures, refer to P. 19) A real-time torque value is indicated. -
Page 13: Torque Value Setting In "Preset Mode
Torque measurement ■ Torque value setting in "Preset mode" Preset torque values (settings) are convenient for frequent works and repetitive works. ○ Display the memory number Recalling the set value Recall the set value (memory number) recorded in the Digital Ratchet main unit. 1. -
Page 14: How To Use "Preset Mode
Torque measurement ■ How to use "Preset mode" ○ Recalling the set value to Display the memory number perform the work Recall the set value (memory number) recorded in the Digital Ratchet main unit to perform the work. 1. Starting the "Preset mode" Turn the power ON to enter into the "Measurement mode"... -
Page 15: Setting Of "Pass/Fail Mode
■ Setting of "Pass/Fail mode" A function to check that the work is completed within the preset torque range. The history (count) of whether a lot of bolts and nuts are accurately worked on can be logged. To use the Pass/Fail mode, it is necessary to enable the "Pass/Fail mode"... - Page 16 5. Setting the "Pass/Fail mode" Pass/fail judgment OFF Use the "+ (plus)/C (clear)" and "- (minus)" buttons to set the rotation direction for the pass/fail judgment. •Clockwise rotation ON : 4rOn •Counterclockwise rotation ON : 4LOn Pass/fail judgment Pass/fail judgment •No pass/fail judgment (OFF) : OFF Counterclockwise rotation ON...
-
Page 17: How To Use "Pass/Fail Mode
○ At the time of setting the upper limit value Setting the acceptance range 6. Setting the upper limit value Press the "M" button twice and check that "H" is Mode indicator displayed in the mode Setting the torque value indicator on the display. - Page 18 3. Pass/fail judgment Within the set torque range <Pass> Within the set torque range : Lighting Buzzer sound : Continuous sound <Failure> Over 100% of the upper limit value Over 100% of the upper limit value : Lighting Buzzer sound : Intermittent sound 4.
-
Page 19: Custom Setting
Custom setting By changing the Digital Ratchet settings, you can customize it for your convenience. Setting at the Reference time of Item name Setting item page shipment P: Peak Hold mode Measurement value A: Auto Clear display method t: Track mode The measurement value is cleared Auto clear time after the time set for the measurement... - Page 20 ○ Navigation within the custom settings Press the "M" button to navigate among setting items. Settings can be changed in a row. Measurement value Auto clear time Buzzer sound indication methods Measurement unit Auto power OFF time Pass/fail judgment ○ Press the "M"...
- Page 21 ○ Setting of the auto clear time Press the "M" button 1. Starting the custom setting screen (For startup procedures, refer to P. 18) 2. Navigating to the auto clear time setting screen Press the "M" button to Auto clear time setting screen navigate to the mode (Setting at the time of shipment) indicator "2".
- Page 22 ○ Setting of "Pass/Fail mode" Press the "M" button 1. Starting the custom setting screen (For startup procedures, refer to P. 18) 2. Navigate to the Pass/Fail mode setting screen Press the "M" button to Pass/Fail mode setting screen navigate to the mode (Setting at the time of shipment) indicator "4".
- Page 23 ○ Setting of the measurement unit Press the "M" button 1. Starting the custom setting screen (For startup procedures, refer to P. 18) 2. Navigate to the measurement unit setting screen Measurement unit setting screen Press the "M" button to (Factory default: cN •...
-
Page 24: Conversion Of Unit And Input Torque Value
Conversion of unit and input torque value The Digital Ratchet has a function of measurement value unit conversion. ● The measurement with units other Target torque value setting screen than cN m and N m are not available. • • ●... - Page 25 ○ Unit conversion of the Switching units measured torque value The unit conversion function can be used after the completion of measurement works. 1. Measuring in each mode 2. Converting the unit After completion of the • measurement, press the "P" button to convert the unit once.
-
Page 26: Error Indication
Error indication ■ Description of indications and responses ○ Turn the power ON again Power ON error If an error code is displayed after power ON with continuous buzzer sound and LED lighting, take the following response action. Error code Response Turn the power ON again... -
Page 27: Maintenance And Care
Maintenance and care Note Injury and property damages may be caused. Picture Important items Harm and damage indication ● Do not use thinner, The surface may be deteriorated benzine or alcohol and or deformed. any cleaner containing organic solvent. ○ Storage method Store the product in a dedicated case (supplied).
