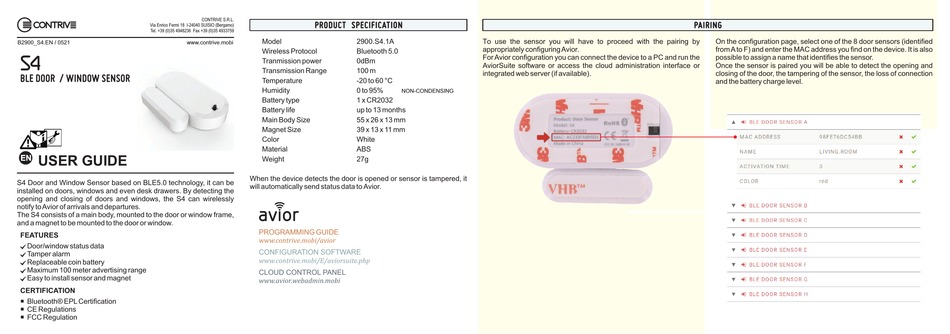

Contrive S4 User Manual

Via Enrico Fermi 18 I-24040 SUISIO (Bergamo)
Tel. +39 (0)35 4948236 Fax +39 (0)35 4933759
B2900_S4.EN / 0521 www.contrive.mobi
S4
BLE DOOR / WINDOW SENSOR BLE DOOR / WINDOW SENSOR
USER GUIDE
S4 Door and Window Sensor based on BLE5.0 technology, it can be
installed on doors, windows and even desk drawers. By detecting the
opening and closing of doors and windows, the S4 can wirelessly
notify to Avior of arrivals and departures.

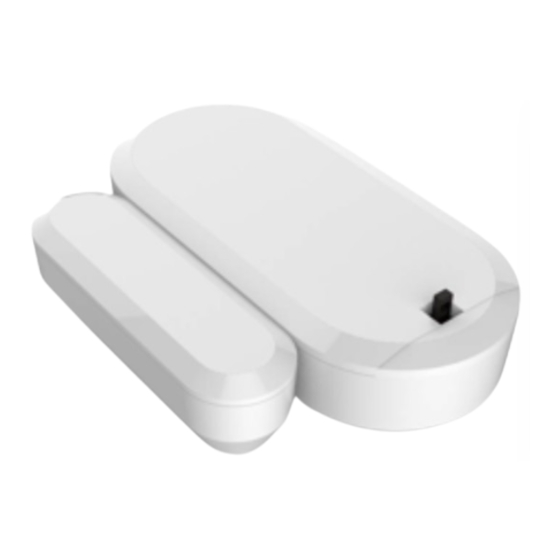

The S4 consists of a main body, mounted to the door or window frame,
and a magnet to be mounted to the door or window.
FEATURES
Door/window status data
.
Tamper alarm
.
Replaceable coin battery
.
Maximum 100 meter advertising range
.
Easy to install sensor and magnet
.
CERTIFICATION
¡ Bluetooth® EPL Certification
¡ CE Regulations
¡ FCC Regulation
CONTRIVE S.R.L.
PRODUCT SPECIFICATION PRODUCT SPECIFICATION
Model 2900.S4.1A
Wireless Protocol Bluetooth 5.0
Tranmission power 0dBm
Transmission Range 100 m
Temperature -20 to 60 °C
Humidity 0 to 95%
Battery type 1 x CR2032
Battery life up to 13 months
Main Body Size 55 x 26 x 13 mm
Magnet Size 39 x 13 x 11 mm
Color White
Material ABS
Weight 27g
When the device detects the door is opened or sensor is tampered, it
will automatically send status data to Avior.
avior
PROGRAMMING GUIDE
www.contrive.mobi/avior
CONFIGURATION SOFTWARE
www.contrive.mobi/E/aviorsuite.php
CLOUD CONTROL PANEL
www.avior.webadmin.mobi
To use the sensor you will have to proceed with the pairing by
appropriately configuring Avior.
For Avior configuration you can connect the device to a PC and run the
AviorSuite software or access the cloud administration interface or
integrated web server (if available).
NON-CONDENSING
PAIRING
On the configuration page, select one of the 8 door sensors (identified
from A to F) and enter the MAC address you find on the device. It is also
possible to assign a name that identifies the sensor.
Once the sensor is paired you will be able to detect the opening and
closing of the door, the tampering of the sensor, the loss of connection
and the battery charge level.
