Summary of Contents for Johnston & Jeff The Dalby

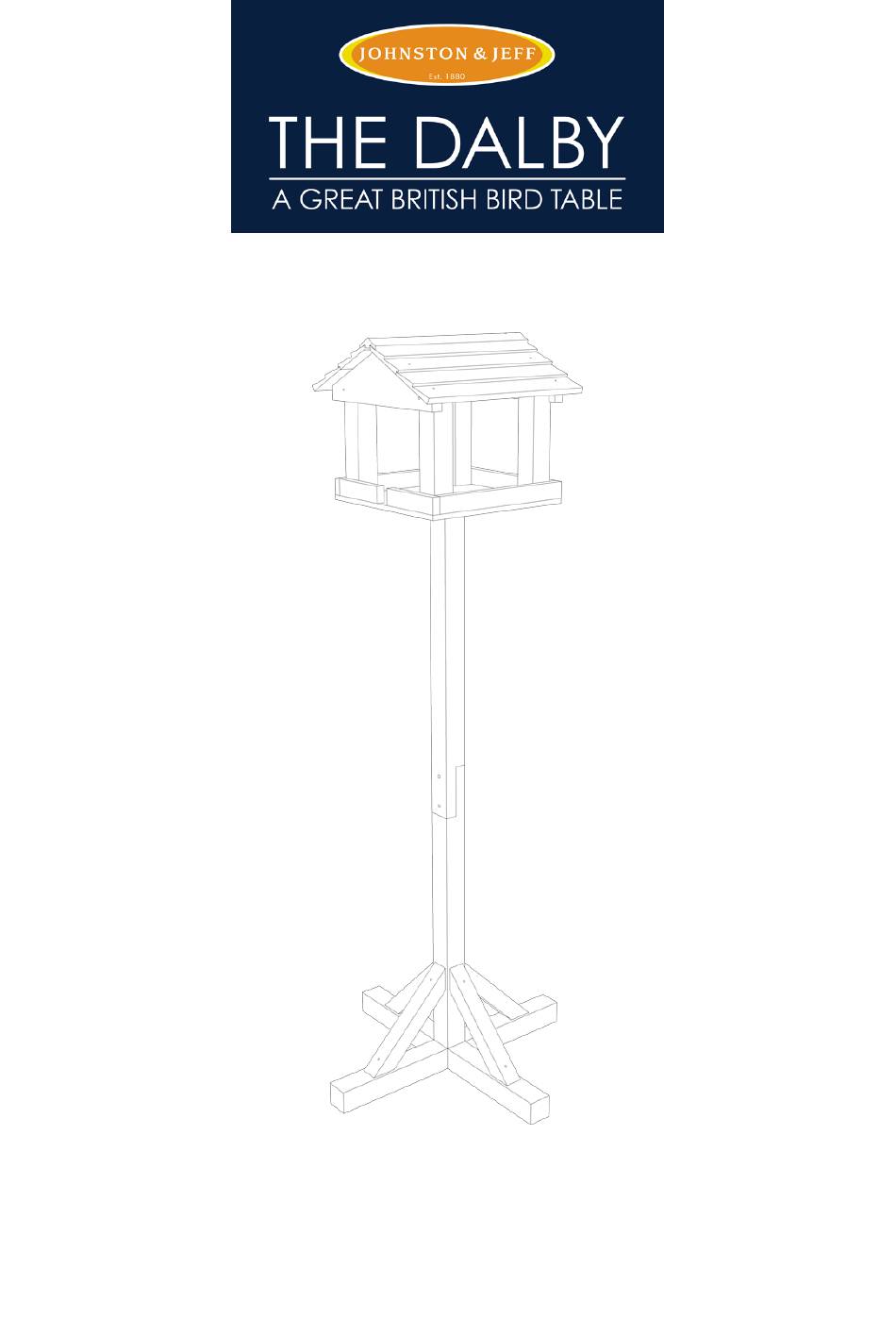

- Page 1 Assembly Instructions To get the best from this product, please read these instructions fully before assembly. Please see the back of the instructions, for places to find a video on how to assemble The Dalby.
- Page 2 Safety and Care Advice • Check you have all the components and fittings listed, on the next two pages. • Keep children and small animals away from the work area, small parts may cause harm if swallowed. • Ensure you have enough space to lay out all the parts prior to assembly. •...
- Page 3 Components 1. The Foot 2. The Foot 3. Post x2 4. Stays x4 This piece This piece has one has three hole in the holes in the half lap half lap joint. joint. 5. The Post-top 6. The Table-top Base 7.
- Page 4 Fittings 30mm Screw x21 Connecting Screw x2 80mm Screw x1 40mm Screw x10 Bolts x2 Washer x2 Wingnut x2...
- Page 5 Assembly Instructions The Post Step 1 – The Foot You will need: The Foot Components (1 & 2) 2x 40mm pozi screws (D) The Foot is made up of two components (1 & 2) Cross the two components over, ensuring that the three holes (2) remain on top. Fix together using 2x screws (D), in the outer holes.
- Page 6 Step 3 – Joining the Pole to the Feet. You will need: 1x 80mm Screw (C) Turning the foot and the post gently on its side, align the two together. This can be done more easily over the end of a table or workbench. Through the central hole in the foot (1 &...
-
Page 7: Head Assembly
IMPORTANT: Before fully tightening – ensure the post top (5) is aligned square to the post. Attach the post top (5) to the top of the post using 3x screws (A). Fix the central screw first, followed by the outer screws. You have now completed the post assembly of The Dalby. Head Assembly Rebate: Step 6 –... - Page 8 Step 7 – The Gable Ends You will need: 2x Gable Ends (8) 4x 30mm Screws (A) Inside each gable end, there is a small rebate on both the left and right-hand sides. These align with the rebates on the pillars (7) and will easily slide on to match. Tighten together with 2x screws (A), at either side, using the pre-drilled holes in the gable ends (8), as a guide.
- Page 9 Step 9 – The Roof: Part 1 You will need: 2x Upper Roof Panels (10) 4x 30mm Screws (A) Taking the upper roof parts (10), slide them underneath the Roof Ridge (9). At this point you may need to slacken the screws in the roof ridge to achieve this. Once both parts meet the inside of the roof ridge you can now securely fasten it (9) down.
- Page 10 Line up the two larger holes in table-top base (6) to the holes on the post top (5). Place a bolt (E) through each of the holes and then fasten together, from underneath, with the washer (F) and wing nut (G). You have now completed the assembly of the Dalby Bird Table.
- Page 11 To ensure the birds get the best nutrition, we recommend feeding one of our many wild bird blends or individual seeds. Perfect for The Dalby are; Selected Wild Bird Food Superior Wild Bird Food – Premium Wild Bird Food High Energy No Mess Husk Free –...
- Page 12 For a video on how to assemble The Dalby: • Search ‘The Dalby’ on YouTube • Follow this link; https://youtu.be/N35QK3Zu2NI • Or scan this QR Code Johnston & Jeff Ltd Baltic Buildings, Gateway Business Park, Gilberdyke, Yorkshire HU15 2TD T: 01430 449444 mail@johnstonandjeff.co.uk...
