QUICK INSTALLATION GUIDE
Heavy Duty Sheet Metal
Gold Zinc Powder-Coated
Handle
Solar
Regulator
24V, 10A
(Morning
Star)
1 Year Warranty
ON/OFF
Switch
Made in USA
Rev4

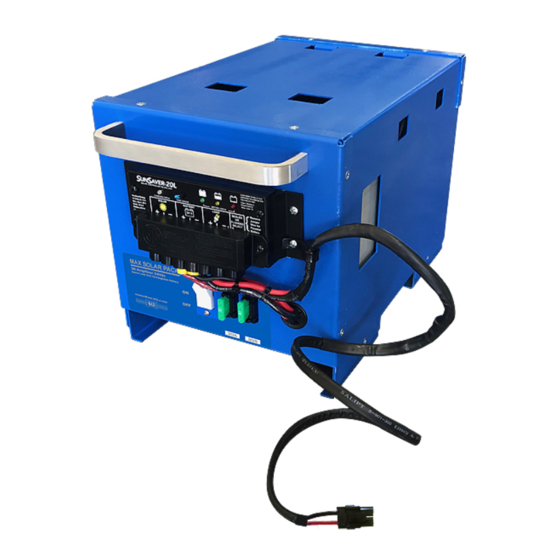

SOLAR PACK
Max Solar Pack
Available for
ALL SLIDE OPERATORS
PRO SERIES
Max Solar Pack
Available for
MEGA 1400 HP PRO
MEGA 2200 HP PRO
SWING OPERATORS
SOLAR PACK
Fuse
30A
AGM Battery
(Absorbant Glass Material)
24V, 35A / Hr
2 x 12V Batteries
YUASA
Power Cable
Power IN/Solar IN
on MATRIX III
UL325
Compliant
UL1741
Compliant
Advertisement
Summary of Contents for Maximum Controls Max Solar Pack
- Page 1 QUICK INSTALLATION GUIDE SOLAR PACK Max Solar Pack Available for ALL SLIDE OPERATORS PRO SERIES Max Solar Pack Available for MEGA 1400 HP PRO MEGA 2200 HP PRO SWING OPERATORS Heavy Duty Sheet Metal Gold Zinc Powder-Coated SOLAR PACK Handle...
-
Page 2: Solar Panel
QUICK INSTALLATION GUIDE QUICK INSTALLATION GUIDE MAX SOLAR PACK MAX SOLAR PACK www.max.us.com Solar Panel POWER/ Wire solar panel terminals to Choose the proper solar SOLAR IN solar regulator input panel size according to chart Caution: polarity matters in step 10 below... -
Page 3: Solar Mode
QUICK INSTALLATION GUIDE MAX SOLAR PACK www.max.us.com Turn SOLAR MODE ON Operator will go into low power mode 30 seconds NOTE: Operator will go into SOLAR MODE BATTERY MATRIX III after gate stops moving and loop detectors are not BATTERY VOLTAGE... - Page 4 QUICK INSTALLATION GUIDE MAX SOLAR PACK www.max.us.com Select proper solar panel and batter SWING, PAD MOUNT, LIGHT GATE MEGATRON PRO GATE SOLAR CYCLES PER DAY with built-in 36A/Hr battery ZONE 1 ZONE 2 ZONE 3 (6 Hrs Sunlight/Day) (4 Hrs Sunlight/Day)
- Page 5 QUICK INSTALLATION GUIDE MAX SOLAR PACK www.max.us.com SLIDER, PAD MOUNT, LIGHT GATE MAX SLIDER PRO GATE SOLAR CYCLES PER DAY with built-in 36A/Hr battery ZONE 1 ZONE 2 ZONE 3 (6 Hrs Sunlight/Day) (4 Hrs Sunlight/Day) (2 Hrs Sunlight/Day) Cycles/day...
