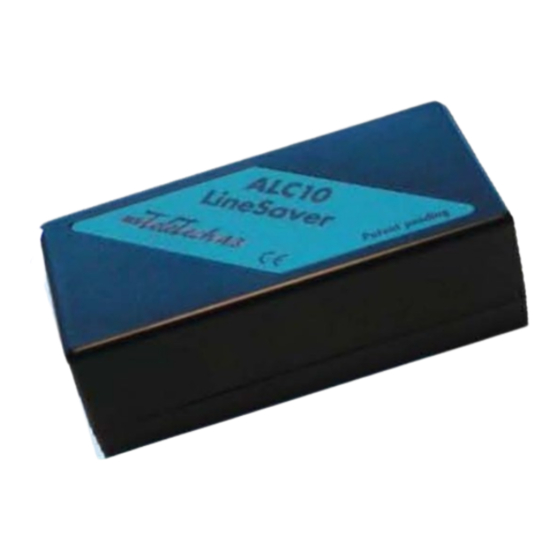

TELETECH ALC10 LineSaver Quick Start Manual

Functionality

The green LED is lightening when the LineSaver is in off hook mode (like a telephone with
the handle off). The LineSaver is activated by a dialling tone thus causing the LED to
lighten. The LineSaver is only active when dialling the telephone number to which it is con-
nected. Its function is to secure that the right TSA5100 answers the call. The "local" number
is the ID code programmed into the TSA5100. When a TSA5100 performs a call the Line-
Saver is not active.

Test

Make a call to the LineSaver (use for instance a mobile phone). The LED is switched on and
a new dialling tone is heard for appx. 4 seconds. Then wait for the LED to switch off (appx.
one minute). Then put the top cover onto the LineSaver and observe that it is correctly ori-
ented. If any problems occur look up the LineSaver Reference Manual at the TeleTech home
page www.abp-teletech.dk. Technical specifications are also available there.

Preparing the TSA5100 for LineSaver

1.
Program always an ID code into a LineSaver connected TSA5100 units (* 0 command).
Use always unique ID codes for each TSA5100.
Prepare the TSA5100 for LineSaver mode (* 6 *# command). Example: *01234# and *6 *#
ID code 1234 prepared for LineSaver.
Note 1. All ID codes must be unique
Note 2. Let last figure in the ID code progress from 0 to 9 to optimize the timing.
Complete with a test call to all LineSaver connected units.
