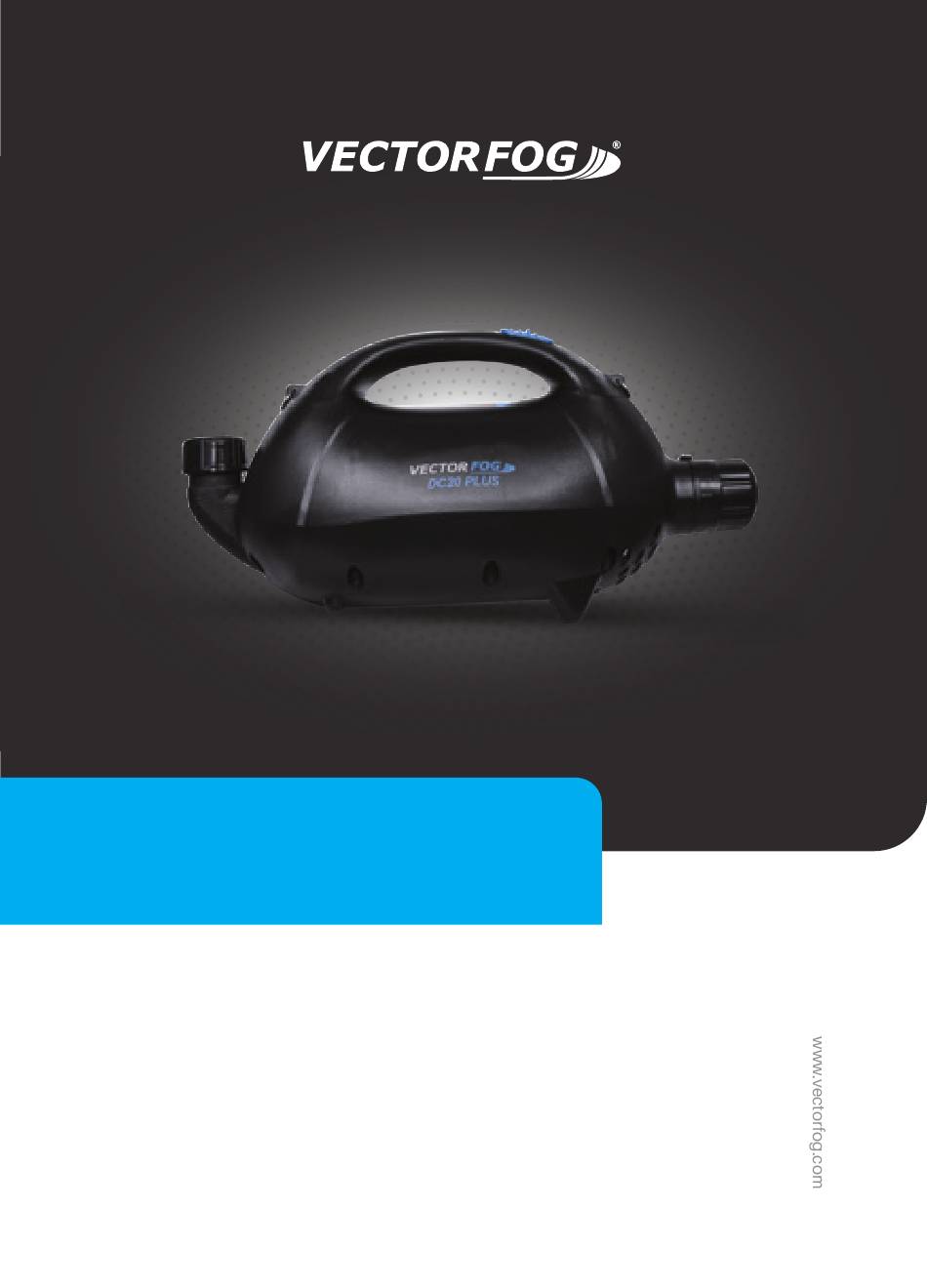

- Page 1 DC20+ ULV FOGGER User Manual © 2022 Vectorfog® is a trademark of MedSchenker Inc. All right reserved...
-
Page 2: Safety Precautions
www.vectorfog.com SAFETY PRECAUTIONS The battery charger is for AC 110V — 240V power supply/60Hz. Unplug the charger after the battery is fully charged (green light). Do not use any damaged power cord, plug, charger or socket. Do not touch the plug, charger or switch with wet hands. The charger is not waterproof. -
Page 3: Special Features
www.vectorfog.com PRODUCT OVERVIEW DC20 PLUS is a cordless motor operated machine that generates cold fog, mist or aerosol formed of tiny droplets known as ultra low volume (ULV). This machine is generally used to apply disinfectants, insecticides, deodorizers, biocides and fungicides. Due to the droplet size produced by this machine (5-50 microns), it is ideal for removing germs, insects, fungi and odors as the cold fog will penetrate each and every hidden corner of the fogged area. -
Page 4: Operation
www.vectorfog.com OPERATION CHARGING • All new machines only come with 30% battery life. • The battery needs to be fully charged • Unplug the charger when fully charged. • When the battery is under 30%, the indicator on the handle turns red. Connect the charger to the power cable. -
Page 5: Filling The Tank
www.vectorfog.com OPERATION FILLING THE TANK • Pre-mix the chemicals prior to filling the tank. • Fill the tank with chemical mixture through the solution inlet. • Close the cap of the tank securely to prevent chemical leakage. SOLUTION INLET WARNING HOCl (Hypochlorous Acid) is a powerful oxidizing agent and is not recommended for use with... -
Page 6: Operating The Unit
www.vectorfog.com OPERATING THE UNIT Turn on the machine by sliding the switch to the ON position. Turn off the machine by sliding the swtich to the OFF position. Adjust the droplet size by turning the nozzle on the front of the machine. - Page 7 www.vectorfog.com CLEANING INSTRUCTIONS WHEN USING WATER BASED LIQUIDS STEP A When fogging is complete, pour any liquid left in the tank to a suitable container using a funnel. STEP B Operate the fogger for 1 minute with the nozzle opened to the largest droplet size setting.
- Page 8 www.vectorfog.com PRODUCT Air-Cap Cap-Nozzle Nozzle-Assy Body-Assy Motor-Assy Battery-Assy...
- Page 9 www.vectorfog.com PRODUCT Battery Invertor Switch-Assy Check Valve Elbow Hose Tank-Assy Tank-Cap Air-Nipple Water-Nipple Filter Battery Charger Power Cable...
-
Page 10: Specifications
www.vectorfog.com SPECIFICATIONS Configuration DC20 PLUS 500 x 210 x 260mm Dimensions (19.6” x 8.2” x 10.2”) 2L (0.5 gallon) Tank Capacity Net Weight 3.11kg (6.8lb) Nozzle Diameter 1.5Ø Vent Diameter 15Ø Specifications Coverage 1,500 sq ft (140 m²) 2-6meters (Horizontal) Spray Distance (6.5-19.6 ft) Flow Rate... -
Page 11: Product Warranty
www.vectorfog.com PRODUCT WARRANTY This product is warrantied for twelve months from the date of original purchase. Any defect that arises due to faulty materials or workmanship will either be replaced or repaired during this period by the seller or authorized distributor from whom you purchased the unit. Transportation charges or duties shall be borne by Purchaser. - Page 12 NETHERLANDS | SOUTH KOREA | USA +1 201 482 9835 info@vectorfog.com www.vectorfog.com...
