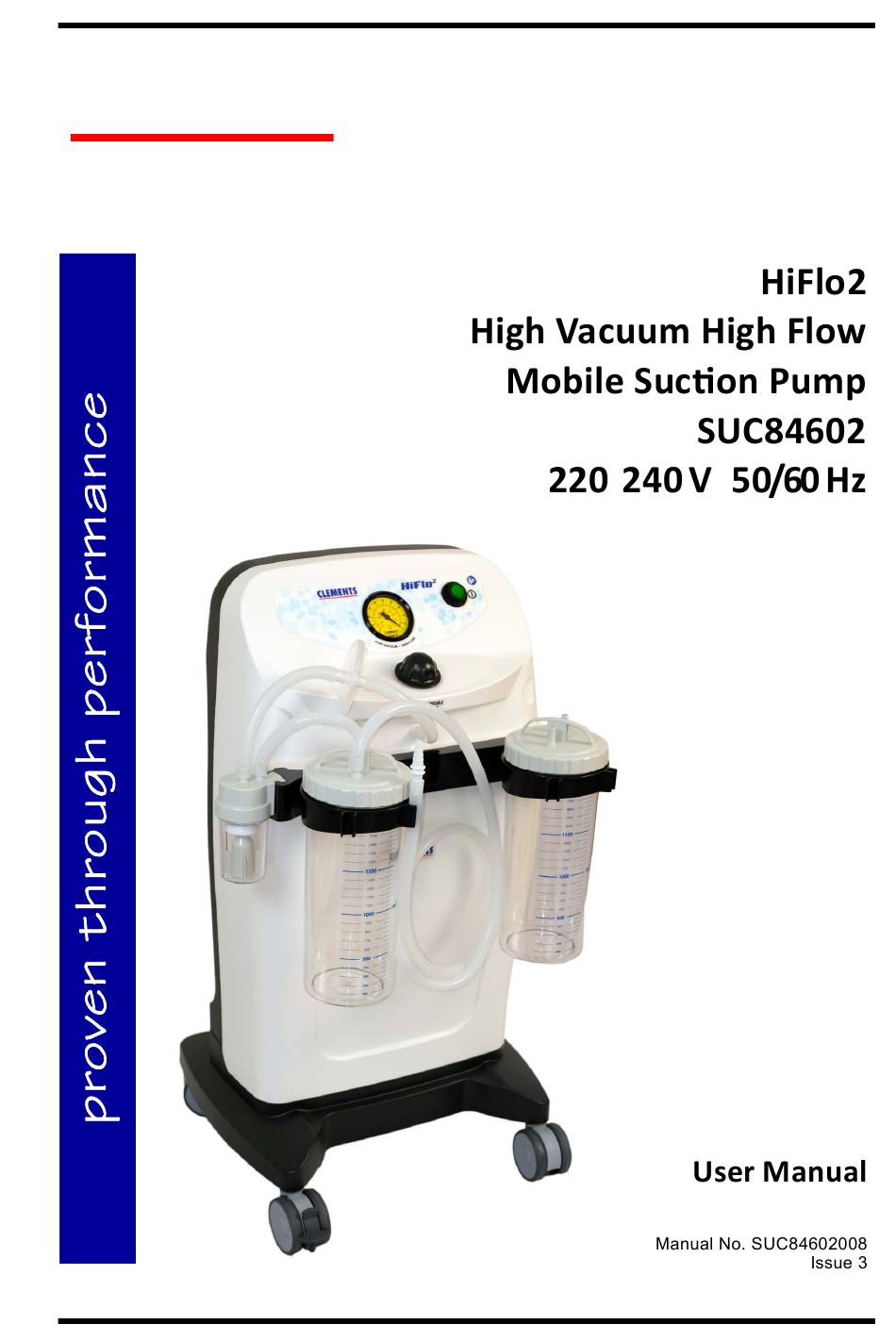

- Page 1 CLEMENTS...
- Page 2 Safety Thank you for purchasing this Clements HiFlo2 High Suction Pump. For your safety it is imperative that this unit only be operated by authorised personnel in accordance with the instructions as described in this manual. Operated in this way, the HiFlo2 High Suction Pump will provide the standard of service specified.
- Page 3 CLEMENTS CLEMENTS CLEMENTS CLEMENTS Contents ............................................................................................................................................................................................................................................
- Page 4 CLEMENTS CLEMENTS Description The Clements HiFlo2 High Suction Pump is a mobile unit designed to suit the needs of hospitals, doctors’ surgeries and paramedics in providing a strong source of suction for use in indoor environments where mains power is available.
- Page 5 CLEMENTS CLEMENTS CLEMENTS CLEMENTS Specifications Specifications...
-
Page 6: Package Contents
CLEMENTS CLEMENTS CLEMENTS CLEMENTS Package Contents The Clements HiFlo2 package contains: • HiFlo2 mobile suction pump • 2 x 2 litre reusable collection jar with lid assembly • External trap jar • Silicone 8 x 14 mm medical suction tubing 1.5m x1, 0.34m x2... - Page 7 CLEMENTS CLEMENTS CLEMENTS CLEMENTS Symbols Symbols...
- Page 8 CLEMENTS CLEMENTS CLEMENTS CLEMENTS Symbols Symbols...
- Page 9 CLEMENTS CLEMENTS CLEMENTS CLEMENTS Cautions Usage 1. Use only for the specified Intended Use. 2. Only suitably trained and authorised personnel may operate. 3. Keep out of reach of children or non-competent persons. 4. Do not use near flammable substances such as oxygen or anaesthetic gases.
-
Page 10: Important Safety Rules
CLEMENTS CLEMENTS CLEMENTS CLEMENTS Important Safety Rules Check the condition of the unit before each use. The surface of the unit should carefully inspected for visual damage. Check the mains cable and do not connect to power if damage is apparent. - Page 11 CLEMENTS CLEMENTS CLEMENTS CLEMENTS supply tolerated, which is indicated on the adapters and extensions. 4. For repairs, exclusively contact technical service and request the use of original spare parts. Failure to comply with the above can jeopardise the safety of the device.
-
Page 12: Connection Diagram
CLEMENTS CLEMENTS CLEMENTS CLEMENTS 13. Any serious incident occurrence in relation to the device should be reported to the manufacturer and the competent authority in your country/area. If you have no contact information of such authority, please contact the manufacturer or distributor whose contact information is indicated in this instruction manual. -
Page 13: Pump Controls
CLEMENTS CLEMENTS CLEMENTS CLEMENTS Pump Controls Operation Place the pump on a flat stable horizontal surface. Connect a short length of silicone tubing from the trap jar centre port to the “I ” (or directional arrow symbol) side of the bacterial/ hydrophobic filter. - Page 14 CLEMENTS CLEMENTS CLEMENTS CLEMENTS Occlude tubing and adjust vacuum control to the required vacuum level. (Clockwise = increase) Always reduce the vacuum level for paediatric and neonatal patients. Apply suction to patient with a compatible suction cannula fitted to the patient tubing.
- Page 15 CLEMENTS CLEMENTS CLEMENTS CLEMENTS Using FLOVAC Disposable Liners 1. Fit FLOVAC ring bracket to multipurpose rail. 2. Insert liner bag [1] into the matching size support jar [2]. Press edge of lid firmly all around edge to ensure seal. 3. Close the TANDEM inlet [3] with the attached cap [4].
- Page 16 CLEMENTS CLEMENTS CLEMENTS CLEMENTS Cleaning After Each Operation Empty Collection Jar The contents of the collection jars, trap jars, suction tubing and bacteria filter, may contain biohazard wastes. Handle using safe handling procedures, which may include the use of rubber gloves, clothing and eye protection, and dispose of according to local protocols for biohazardous materials.
- Page 17 CLEMENTS CLEMENTS CLEMENTS CLEMENTS Rinse with hot running water and dry all parts with a soft non- abrasive cloth. It is possible to wash with commercial disinfectants by carefully following the instructions and dilution values supplied by the manufacturer. Do not use phenolic solutions as disinfecting agents in polycarbonate jars.
- Page 18 CLEMENTS CLEMENTS CLEMENTS CLEMENTS Check Bacteria Filter The bacterial/hydrophobic filter is an important device to help protect the pump and environment from moisture and bacteria from the patient. It is recommended that the filter be changed every month or when damp or discoloured.
-
Page 19: Spare Parts
CLEMENTS CLEMENTS CLEMENTS CLEMENTS Spare Parts Spare Parts... - Page 20 CLEMENTS CLEMENTS CLEMENTS CLEMENTS Spare Parts Spare Parts...
-
Page 21: Troubleshooting
CLEMENTS CLEMENTS CLEMENTS CLEMENTS Troubleshooting The Pump Fails To Operate • Check that the mains power supply lead is firmly connected and that the power is on at the mains power supply outlet. • Check fuse as detailed below. • Ensure that the Vacuum Gauge on the Control Panel indicates zero. -
Page 22: Wiring Diagram
CLEMENTS CLEMENTS CLEMENTS CLEMENTS Wiring Diagram Wiring Diagram... -
Page 23: Vacuum Check
CLEMENTS CLEMENTS CLEMENTS CLEMENTS Setup for Diagnostic and Performance Testing Note that the following arrangements are not used for actual suctioning applications. They are specified to remove unnecessary variations when diagnosing faults and as a standard setup for performance measurement. -
Page 24: Flow Check
CLEMENTS CLEMENTS CLEMENTS CLEMENTS Flow Check Connect pump as shown in diagram. Set vacuum control knob to maximum, and switch on pump. Occlude jar inlet and con- firm that pump achieves the same maximum vacuum as in the previous vacuum check setup . Any difference indicates leaks in jar or connections. -
Page 25: Periodic Safety Check
CLEMENTS CLEMENTS CLEMENTS CLEMENTS IMPORTANT There are no user-serviceable components inside. Maintenance must be carried out by qualified personnel only. Periodic Safety Check The following safety checks should be performed at least every 12 months by a qualified person who has adequate training, knowledge, and practical experience to perform these tests. - Page 26 CLEMENTS CLEMENTS CLEMENTS CLEMENTS Emissions Guidance Table...
- Page 27 CLEMENTS CLEMENTS CLEMENTS CLEMENTS – Immunity Guidance Table...
- Page 28 CLEMENTS CLEMENTS CLEMENTS CLEMENTS – Immunity Guidance Table...
- Page 29 CLEMENTS CLEMENTS CLEMENTS CLEMENTS Separation Guidance Table Separation Guidance Table...
-
Page 30: Conditions Of Warranty
CLEMENTS CLEMENTS CLEMENTS CLEMENTS Warranty ICU Medical Australia Pty Limited ("ICU Medical Australia") warrants that this product is free from defects in workmanship and materials for a period of 24 months (3 months for batteries) from the date of shipment by ICU Medical Australia or its authorised agent to the purchaser. - Page 31 CLEMENTS CLEMENTS CLEMENTS CLEMENTS In Australia, apart from any warranties implied by the Trade Practices Act 1974 all other warranties expressed or implied and whether arising by virtue of statute or otherwise are hereby excluded. Outside Australia, all other warranties expressed or implied and whether arising by virtue of statute or otherwise (including any warranties implied by the Vienna Convention) are hereby excluded.
