  • Page 1 INTERQUARTZ Doorphone – ID 201 Doorphone – ID 202 Doorphone – ID 204 User manual...
  • Page 2: Table Of Contents

    Contents BASIC DESCRIPTION... 3 ... 3 EATURES HONE MODELS INSTALLATION ... 4 PENING WIRING 2.1.1 Name card panel... 4 2.1.2 Uncover control elements ... 5 2.1.3 Wiring and wall mounting ... 5 2.1.4 Switches ... 6 2.1.5 Voice level... 7 OCATION OF HANGING NAME CARDS INAL CLOSING OF...
  • Page 3: Basic Description

    DRILLING MASTER BOARD ... 27 Basic description 1.1 Features Very slim module for surface mounting only. Supplied in 1, 2 or 4 button variants. Voice communication powered from analogue telephone line only. Pulse and tone (DTMF) dial Two 16 digits numbers saved under each button (includes *, #, RECALL and pause) DAY/NIGHT mode Call prolongation by dialling * or #...
  • Page 4: Slim Door Phone Models

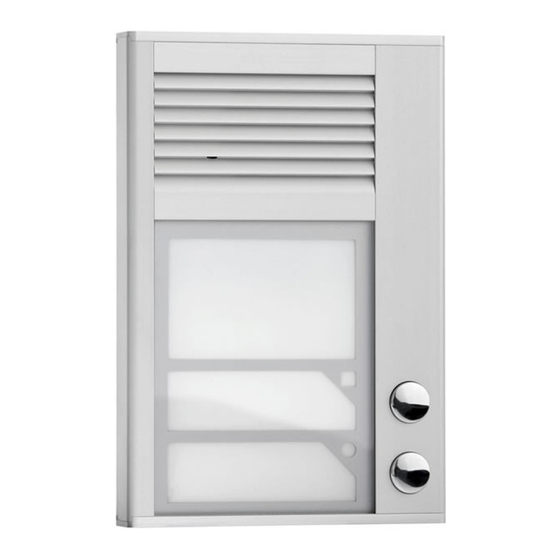

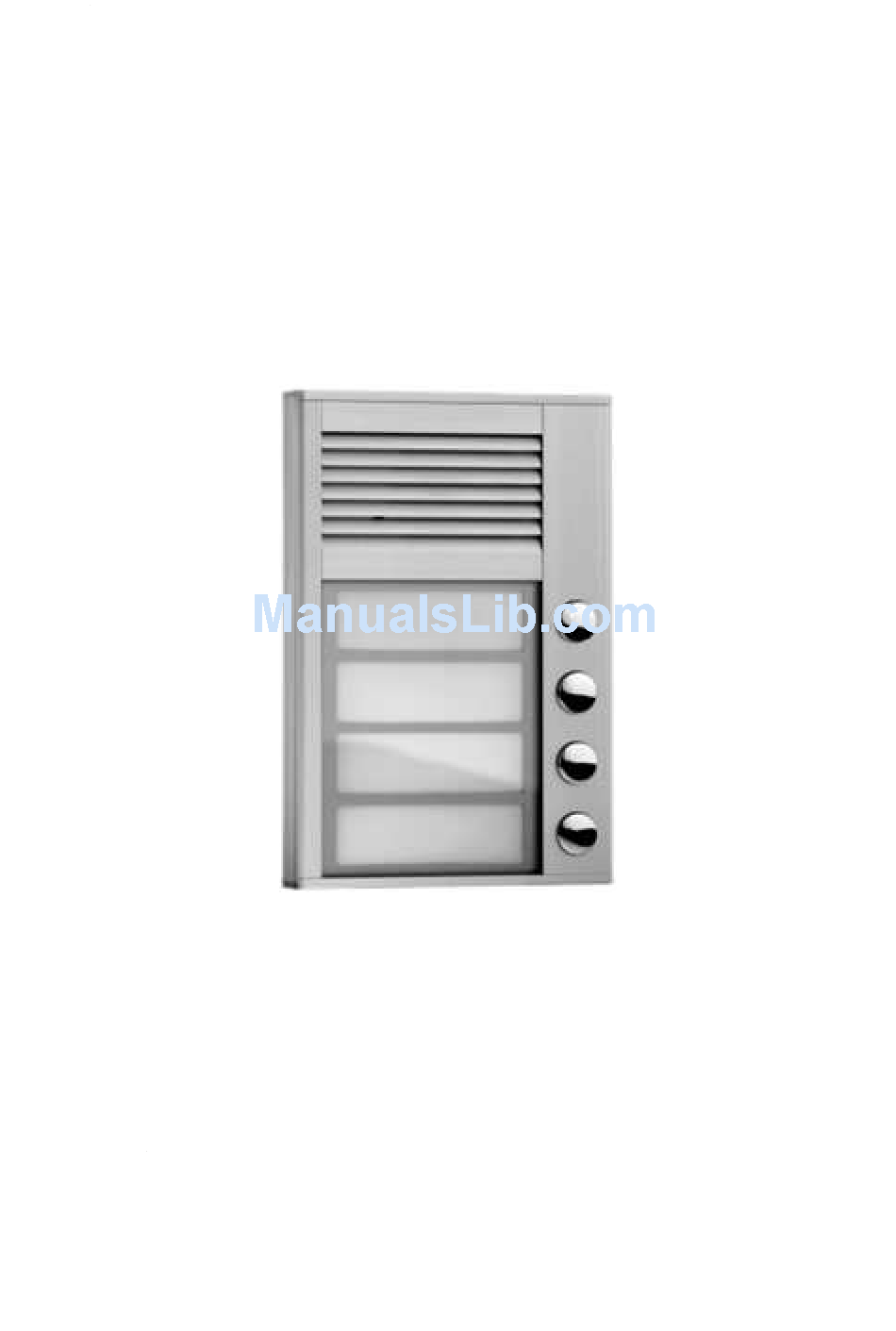

    1.2 DoorPhone models Three versions are available : ID 201 -1 button 2 Installation This compact unit is fixed by 2 screws to the wall. 2.1 Opening, wiring, wall mounting and settings 2.1.1 Name card panel 1. Every unit is supplied with a...
  • Page 5: Uncover Control Elements

    2.1.2 Uncover control elements 4. Push the aluminium speaker grille down (see figure – 4). 2.1.3 Wiring and wall mounting 5. Use wall mounting template at the end of the manual to mark the position for the screw holes and cable connection on the mounting surface.
  • Page 6: Switches

    (central) and "NC" means contact normally closed. The relay contact is isolated from the other circuits on the board. For the variants of lock connection see the picture below. Power supply lock Wiring of standard 7. A special USB cable enables the doorphone to be connected to a PC for programming of individual parameters.
  • Page 7: Voice Level

    The PCB heating has two major benefits. Firstly, it warms the board during winter time (temperatures under -20 C, most circuits have warranty operation down to -20 C) and secondly it helps to protect the PCB against humidity when installed outside. 2.1.5 Voice level 10.
  • Page 8: Location Of Id Doorphone Components

    2.2 Location of ID Doorphone components All mounting, control and setting elements are located under the speaker front aluminium grille. SPK- setting of MIC-setting speaker volume microphone volume TRH – setting of microphone activation level 12V =/~ for relay, light and heating Relay Microphone...
  • Page 9: Changing Name Cards

    2.3 Changing name cards Name card panel (2.1.1on page 4) has spaces to insert printed name cards. Insert name cards from top (see picture). Cards can easily be printed with pictures as well as text using the included software. The card outline is marked for easy cutting . 2.4 Final closing of ID Doorphone 2.4.1 Covering control elements 1.
  • Page 10: Slimdoorphone Services

    3 Doorphone Services 3.1 Signalling Overview The unit signals acoustic conditions that may occur during operation. You can listen to the signalling samples in the ID Manager program. Condition Pick up line Hang up line Confirm command Dialling Call Conversation end warning Enter programming (phone or PC) Programming tone Parameter confirmation...
  • Page 11: Telephone Caller

    from the second group (parameter 2). The next press of the same button again selects the number from the first group, etc..…… If the button is pressed after the line has been opened (but before the call is answered), the unit will hang up for the period given by parameter 54, lift up the line and dial the other group number.
  • Page 12: Parameter Programming

    4 Parameter programming 4.1 Programming from a telephone by DTMF 4.1.1 Entering programming mode The SlimDoorPhone may be set to programming mode in two ways: 1. by password – dial the unit‘s number connected to a PBX or telephone number, if connected to a PSTN line) unit will answer (you will hear the Pick up line tone –...
  • Page 13: Programming From Apc - Id Manager Program

    Note 1. if you wish to maintain the connection in programming mode (i.e. extend the 34 seconds period) then it is necessary to occasionally press a key (e.g. will respond with an error tone but the connection will be kept alive. Note 2.
  • Page 14: Parameter Description

    Parameter description 5.1 Direct Dialling – Memories Parameter Value t nn… t – Button number (memory) [1-4] nn – telephone number up to 16 digits to be stored. Refer to the table for other choices. The number stored in parameter 1 is the number for the first group or the number for Day mode.
  • Page 15 Parameter Value hhhhhh hhhhhh hhhhhh hhhhhh – password for relay closing from buttons [2 to 6 digits] The 3 passwords are controlled by Day/Night; the combination is entered using the unit buttons. It is influenced by the setting of Relay mode and Day/Night switchover.
  • Page 16: Basic Parameters

    Parameter Value Description cc – command from phone to relay closing [2 digits] – 2 impulses Parameter Value Description hhhhhh hhhhhh – password for relay closing from buttons [2 to 6 digits] for activation 2 impulses in DAY and NIGHT mode. 5.3 Basic parameters Parameter Value v –...
  • Page 17: Time Parameters

    Parameter Value xxxx xxxx – service password for entry to programming Parameter Value Description dd – command for DAY nn – command for NIGHT Note: The switchover to Day/Night mode remains set in unit even after line disconnection. Parameter Value e –...
  • Page 18 Parameter Value w – max. time [sec] between button presses [range 1-9] relay closing – if time between two next presses is bigger than w time, the code is not evaluated correctly. dialling – if the button pressed is the first password number for switch closing, so the choice is delayed by this w time.
  • Page 19 Parameter Value – DTMF tone duration is determined by the formula: (entered number + 5) x 10 = tone duration [ms] m – Space duration between DTMF tones (entered number + 5) x 10 = gap duration [ms] – Recall duration is determined by the formula: entered number x 100 = Recall duration [ms] p –...
  • Page 20: Presetting And Deleting

    Parameter Value y – setting range frequency of tone detection from telephone line, value is in next table: Parameter Value z – time of continuous tone before hang up. Hang up on dial tone, setting the time as in the next table: 5.5 Presetting and Deleting Parameter Value This setting does not influence 1 and 2 (numbers stored in memory)
  • Page 21: Exit Programming

    Parameter Value The parameters 81 and 82 will delete all numbers stored in memories for buttons. The parameters 83 – 85 will execute a selective basic setting only for parameters starting with 3.. – 5.. ATTENTION !!! the deletion is non-reversible!!! Numbers must be programmed again.
  • Page 22: Overview Of Parameters

    Parametr Value In default the unit produces acoustic signals. It can occasionally cause a problem of incorrect detection of tones by PBX. By changing parameter „z“ you can switch off this acoustic signalization. The values are: z=0 – all signalling is switched off z=1 –...
  • Page 23 Time between 2 impulses Internal access code External access code in hhhhhh DAY + NIGHT mode for xxxx DAY MODE switching NIGHT MODE switching Number of rings before Maximum call duration Time between button Off hook time before new Number of rings before hanging up or group mode DTMF tone duration (ms) Space duration between...
  • Page 24: Technical Parameters

    6 Technical parameters 6.1 Electrical parameters Parameter Minimum line current Minimum line voltage Voltage on line while off hook (VA characteristics) Leakage in hang up status Impedance of line termination Bandwidth Impedance of ringing Sensitivity of ringing detector Pulse choice Tone choice level Tone choice sensitivity Sensitivity of tone detector...
  • Page 25: Mechanical Dimensions

    switches and heating Max. consumption of lighting through and heating Max. voltage of switch contact Max. current of switch contact Operational temperature 6.2 Mechanical dimensions Dimensions WxHxD Weight Unit material Name card panel material 7 Table for easy programming Complete the values you want to program in the empty part of table on the next page.
  • Page 26 Relay closing time Time between 2 impulses Internal access code 2 impulses External access code 2 impulses Dialling type Prolong call End call Password DAY MODE switching NIGHT MODE switching Dialling mode No. of rings before pick-up Maximum call duration Time between button press Off hook time before new call...
  • Page 27 8 Drilling master board...
