Summary of Contents for Juicebox JBDP-01

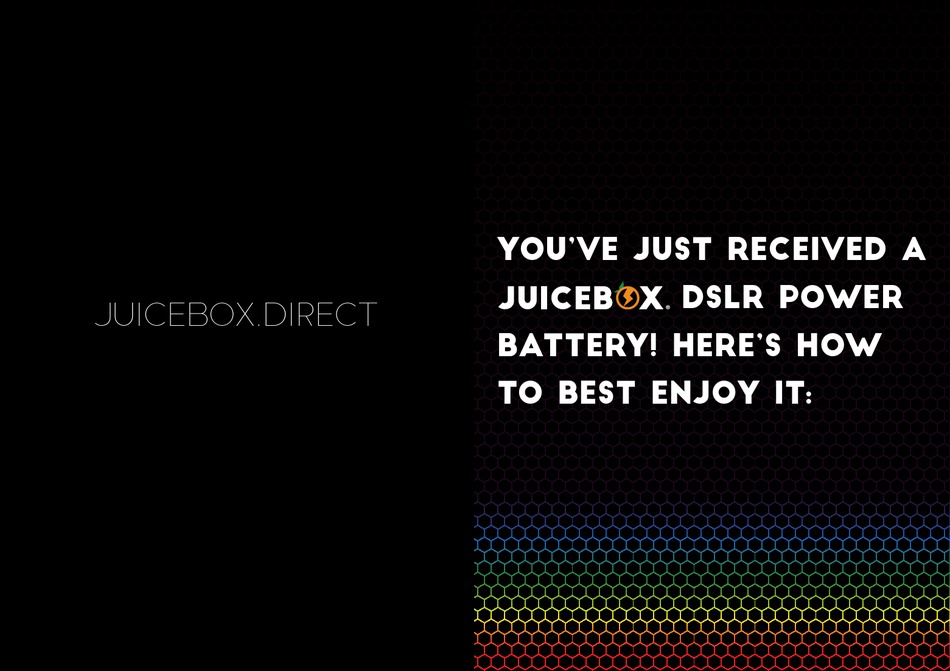

- Page 1 You’ve just received A DSLR POwER juicebox.direct BATTERY! HERE’S HOW TO BEST ENJOY IT:...
- Page 2 80% charge and green when the battery is fully charged. From full discharge, the Juicebox battery will reach full charge in approximately 7-8 hours. Because the Juicebox battery is equipped with over-...
- Page 3 500+ charge/discharge cycles. However, the inter- nal battery cells can be easily removed and replaced. The DSLR Power battery can be used with a Juicebox These internal Juicebox cells should be replaced with Lil’ Dummy power coupler to connect to compatible 18650, 2400mAh li-ion cells.
- Page 4 Flat Contacts (Positive Cell ends) LED Charge Indicator USB/LED USB Port Indicator Button 5V 2.1A (Double Click) Spring Contacts (Negative Cell Ends) DC Port 12V 1A Quick Release Plate Specifications Voltage: 7.4V (nominal) Capacity: 36Wh (4800mAh) Amperage: 2A maximum Cell Type: 2400mAh 18650 cells Removable Composition:...
