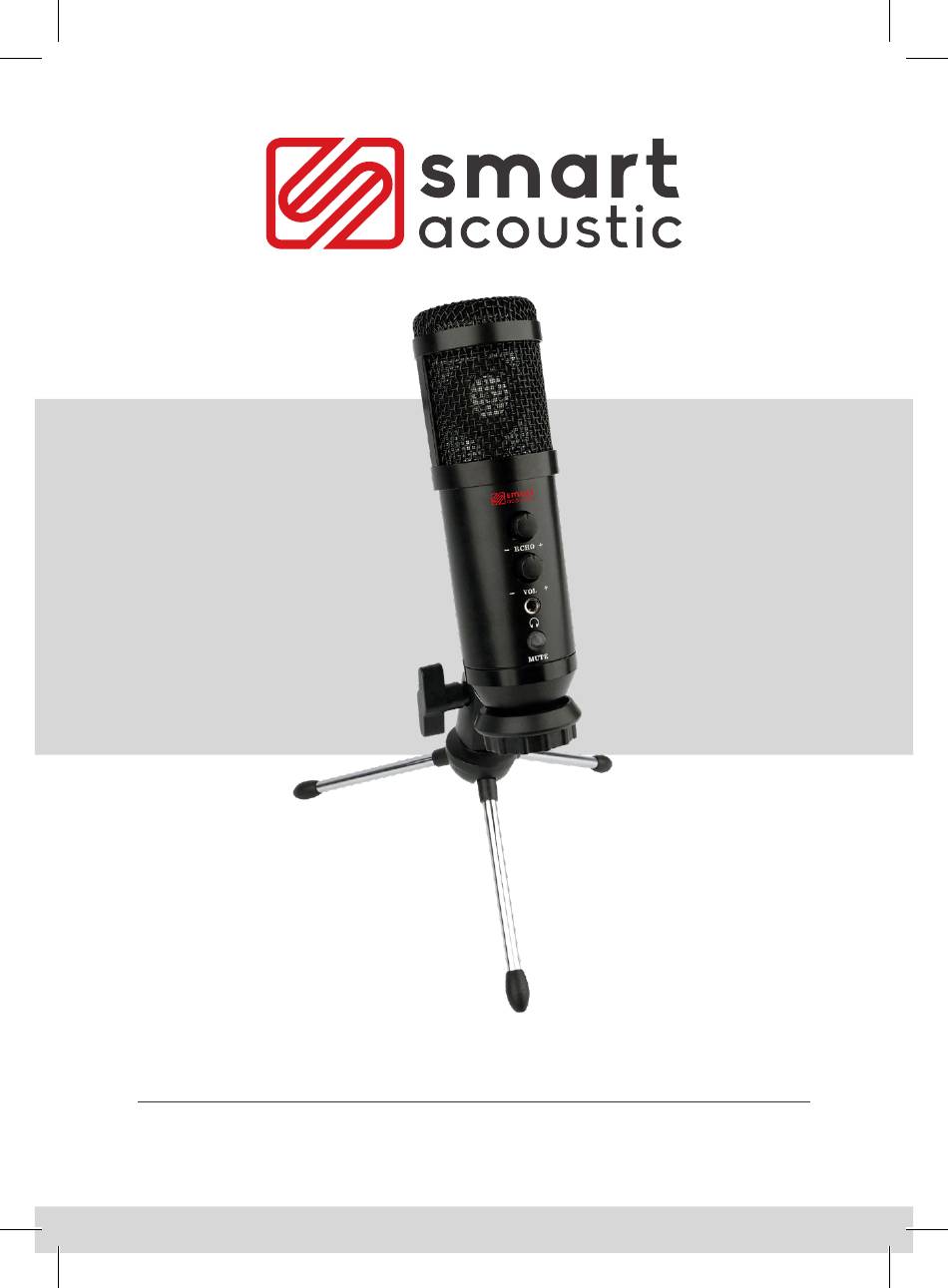

- Page 1 OPERATION MANUAL SUM2020 - USB CONDENSER MICROPHONE...
-
Page 2: Specifications
01. Specifications Capacitive, Permanently Sound Element Polarized Condenser Capsule Frequency Response 30Hz-20kHz Polar Pattern CARDIOID Directivity (0°-180°@1 kHz >5dB) Max SPL 120dB Noise 10dB Sensitivity 25mV /Pa(-32dB±2db) Variable Gain +25dB Headphone Jack 3.5mm (1/8”) TRS (Stereo) USB Output USB - B Power Supply USB DC... - Page 3 02. Features Protective Grille Wind Sock Effect Level Volume Gain Headphone Output Mute Switch Microphone Housing USB-B Connector...
-
Page 4: Microphone Setup
03. Microphone Setup STEP 1 Plug one end of the USB cable into the USB-B port of the microphone and connect the other end to the computer USB-A port. STEP 2 Observe volume gain control setting and adjust to the desired level. 04. -
Page 5: Microphone Placement
05. Microphone Placement • Placement of the Microphone relative to the vocalist can be varied depending on several factors including room acoustics, the vocal SPL, or whether the vocalist has a high or deep voice. • An ideal starting point for reference is to place the Microphone directly in front of the vocalist, at head height, and in front of their mouth at a distance of 15 cm (6”). - Page 6 06. Set Your Input Level The Microphone factory default is set to an ideal internal gain setting. If you need to set your preferred sensitivity to the Microphone and listen to the headphone sound output, please observe the following steps: •...
-
Page 7: General Operation
07. General Operation To manually adjust your input level via your computer’s system preferences, please follow these steps. NOTE Do not cover the Microphone grille with your hand. STEP 1 Right click the computer right voice Icon, enter the sound control panel, and click record. - Page 8 07. continued... STEP 2 Select the Microphone. Click on the properties below.
- Page 9 07. continued... STEP 3 Click Advanced. Select 48000Hz, Finally, click OK.
- Page 10 07. continued... STEP 4 Adjust the input level using the level slider.
-
Page 11: Warranty
Thank you for purchasing your Smart Acoustic USB Condenser Microphone. The Standard Consumer Limited Warranty for this Smart Acoustic Product is One (1) year from the original date of retail purchase. Please refer to your point of purchase for warranty claim assistance. - Page 12 www.smart-acoustic.com...
