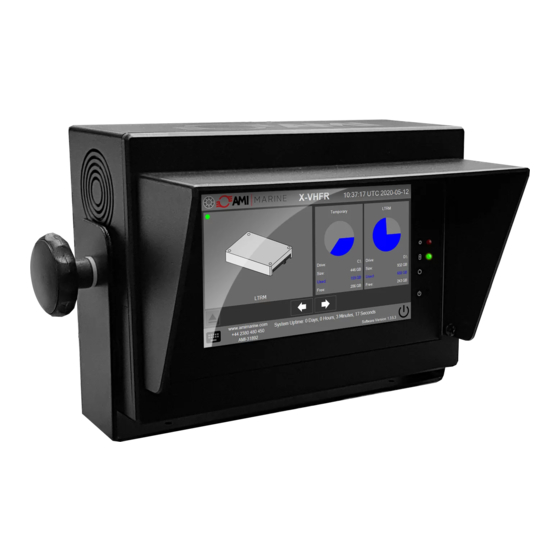

- Page 1 X-VHFR Audio and Data Recorder User Guide © This Guide and the information contained therein is the property of AMI Marine Ltd. It must not be reproduced or otherwise disclosed without prior consent in writing from AMI Marine Ltd...
-
Page 2: Document Issue
All alterations must be verified by re-authorisation and approval of the complete document. AMI Marine Ltd Unit 9 Crosshouse Centre Tel No: +44 (0) 23 8048 0450 Crosshouse Road Email: technical@amimarine.com Southampton Web: www.amimarine.com SO14 5GZ United Kingdom Page 2 of 10 08020 - X-VHFR User Guide Iss01.docx... -
Page 3: Table Of Contents
Main Display – Wind Indication ........................6 Wind Information Display ..........................7 Serial Data Monitoring ............................. 7 Storage Status ..............................8 Event Log ................................. 8 Day and Night Mode ............................9 System Shutdown ......................10 Page 3 of 10 08020 - X-VHFR User Guide Iss01.docx... -
Page 4: Hardware Buttons And Indications
*This should only be carried out in extreme cases as the operating system will not close in an organised manner using this method of powering down the main processor display unit Page 4 of 10 08020 - X-VHFR User Guide Iss01.docx... -
Page 5: Software Buttons And Indications
* Where a UPS is not in use the X-VHFR system should always be shut down prior to main power being removed. Removal of power prior to shutting down the X-VDR may result in corruption of data or the operating system. -
Page 6: User Displays
Where wind data is received, and the option is selected in the configuration, the Wind Speed and Direction will be displayed in graphical format along with all other items available on the Main Display. Page 6 of 10 08020 - X-VHFR User Guide Iss01.docx... -
Page 7: Wind Information Display
In addition, specific NMEA messages may be monitored. Using the onscreen keypad characters may be entered into the filter box, resulting in only those characters being displayed. For example, typing $GP will display only messages beginning with the characters $GP Page 7 of 10 08020 - X-VHFR User Guide Iss01.docx... -
Page 8: Storage Status
If a storage device is removed or develops a fault, a caution state will be raised and the LTRM box will tur yellow. An indicator in the top left of the LTRM status box will flash green to show data transfer activity The ‘Eject’ button must be pressed to safely remove the external storage drive from the X-VHFR to avoid data corruption. -
Page 9: Day And Night Mode
When ‘Automatically change at Sunrise and Sunset’ is selected, the system will switch between Day and Night mode based on the GPS location, date and time, at sunset and sunrise. Night Mode Page 9 of 10 08020 - X-VHFR User Guide Iss01.docx... -
Page 10: System Shutdown

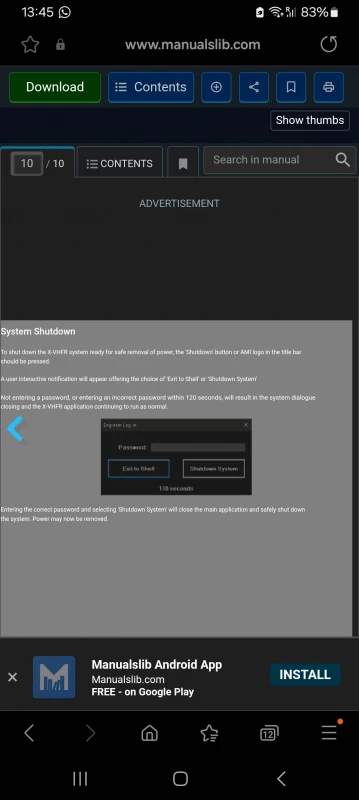

System Shutdown To shut down the X-VHFR system ready for safe removal of power, the ‘Shutdown’ button or AMI logo in the title bar should be pressed. A user interactive notification will appear offering the choice of ‘Exit to Shell’ or ‘Shutdown System’...
