Manual

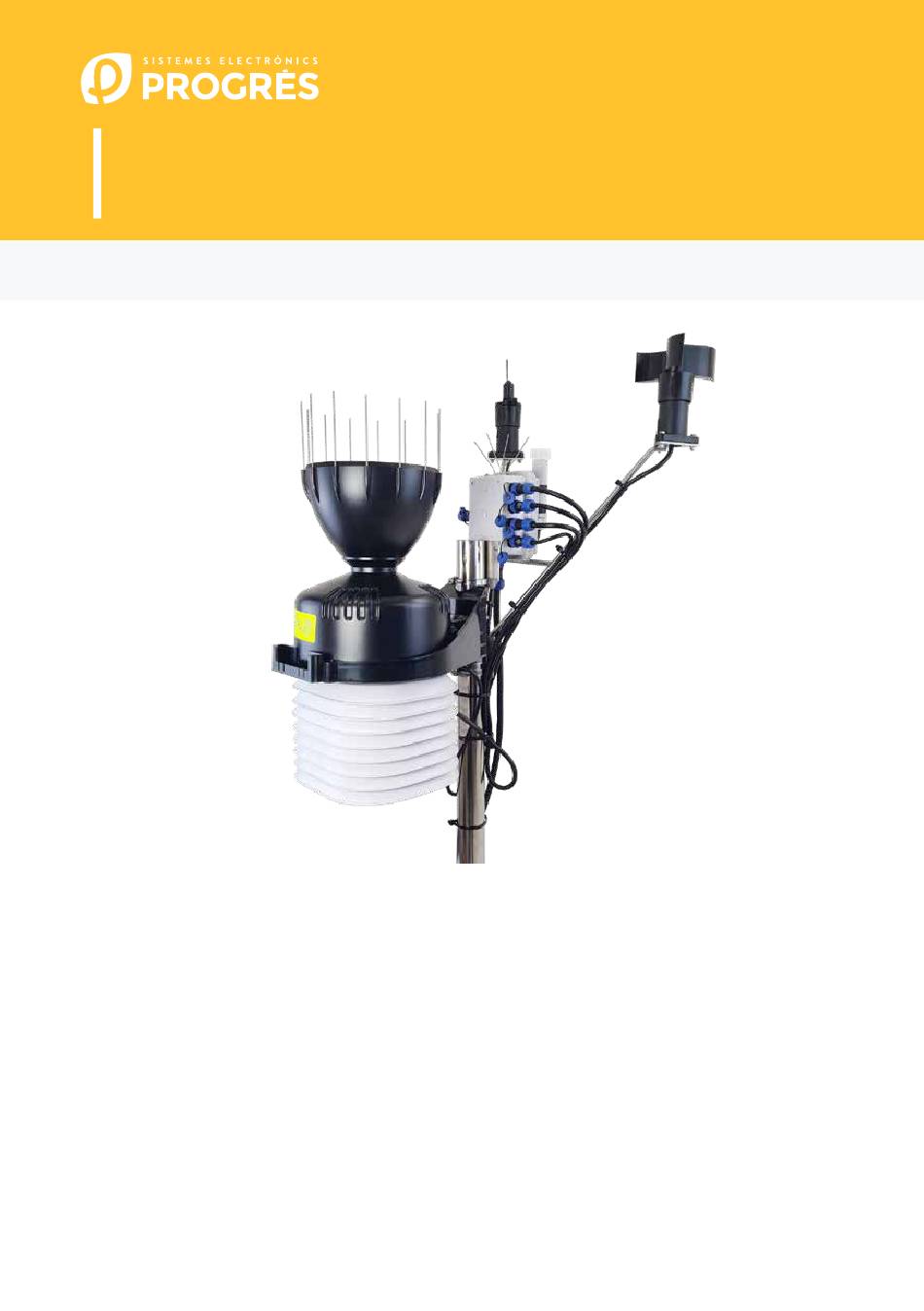

Weather Station
The weather station has a set of climatic sensors: relative humidity, temperature, solar
radiation, anemometer, wind vane and rainfall gauge.
The weather station is easy to install, has a watertight connection and is resistant to inclement
weather. It has a metallic structure to hold the different devices that the weather station includes
and arms to place the sensors further away from the body, so that they give the correct readings.
All sensors have a 4-20 mA current output, except the rainfall gauge, which has a pulse output
(digital output).
The weather station is connected to the Agrónic with a 12-metre multi-wire cable.
CODE 06730001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 06730001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Progres 06730001

  • Page 1 Manual Weather Station CODE 06730001 The weather station has a set of climatic sensors: relative humidity, temperature, solar radiation, anemometer, wind vane and rainfall gauge. The weather station is easy to install, has a watertight connection and is resistant to inclement weather.

  • Page 2: Technical Specifications

    Technical specifications Sensor specifications Output Response Reading range Weight Dimensions Sensor time (min.) signal Temperature 4-20 mA -40 to +85ºC 1.75 kg Height: 190 mm 400 ms with Width: 230 mm Relative 4-20 mA 0 to 100% protector Depth: 200 mm Humidity Solar 0 to 2000...

  • Page 3: Front View

    Weather station parts FRONT VIEW Anemometer Wind vane Rainfall gauge Temperature Relative Humidity (Both inside the solar protector) REAR VIEW Solar Radiation Anti-bird spikes Sensor Watertight box connectors connections Main connector Solar protector User manual | Weather Station ·...

  • Page 4: Installation

    Installation In order to ensure good quality data in the probe reading, it is very important to take a series of tips into account in the installation as well as to choose the location correctly. • Move the weather station away from any artificial source of heat or cold. •...
  • Page 5 SOUTHERN HEMISPHERE IMPORTANT Assemble in the direction of the figure and in the position of the figure RAINFALL GAUGE Before mounting the weather station, an internal flange must be cut that protects the tipping container of the rainfall gauge while it is being moved. Follow the instructions below: •...

  • Page 6: Sensor Configuration

    Connections The box has a series of connectors prepared and identified to screw in their respective sensors. The connector layout is as follows: LEFT PROFILE RIGHT PROFILE Sensor configuration ANALOGUE SENSORS The sensor, with analogue output, acts by delivering a current and a voltage proportional to what it measures.
  • Page 7 Configuration of analogue sensors in Agrónic 4000/5500 Number Number Number Voltage Sensor Sensor Input Format (Vdc) Temperature Humidity Anemometer 12 Vdc Wind vane Solar radiation Internal configuration of analogue sensors in Agrónic Bit Number Number Number Time Number Voltage Sensor Sensor Input Format...

  • Page 8: Digital Sensor

    DIGITAL SENSOR The rainfall gauge sensor, with pulsed digital output, determines the litres/m of rain accumulation. To configure the weather station's rainfall gauge, go to: • Function | Settings | Sensors | Counters (Agrónic 2500, 5500, Bit) • Function | Settings | Sensors | Digital | Function 35 (Agrónic 4000) Once in, configure the settings according to the following table.

  • Page 9: Connection Examples

    Connection examples AGRÓNIC 2500 BOX MODEL Four analogue inputs analogue inputs IMPORTANT Maximum cable length between station and controller: 200 m (minimum section 0.5 mm User manual | Weather Station ·...
  • Page 10 AGRÓNIC 2500 RECESSED MODEL IMPORTANT Maximum cable length between station and controller: 200 m (minimum section 0.5 mm · User manual | Weather Station...
  • Page 11 AGRÓNIC 4000 In the Agrónic 4000, the rainfall gauge must be connected to digital input number 12. IMPORTANT Maximum cable length between station and controller: 200 m (minimum section 0.5 mm User manual | Weather Station ·...

  • Page 12: Maintenance

    • Check that the sensors are well connected to the connection box. (P. 6) Sistemes Electrònics Progrés, S.A. Polígon Industrial, C/ de la Coma, 2 | 25243 El Palau d’Anglesola | Lleida | España Tel. 973 32 04 29 | info@progres.es | www.progres.es R-2364...
