  • Page 1 FLEX LS USER MANUAL Edition 2110...

  • Page 2: Table Of Contents

    Servicing the FLEX ................22 2.6.1 Maintenance provider responsibilities ......22 Product acceptance ................23 CHAPTER 3 Installation ......................25 RVM power requirements ..............25 Product location .................25 Functional check procedures ............25 3.3.1 Attendant training and demonstration ......25 FLEX LS | USER MANUAL | 2...

  • Page 3: Executive Summary

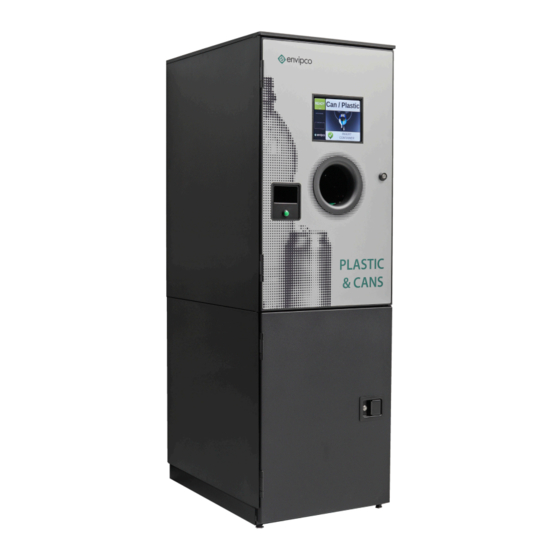

    Only 60cm (24”) wide, the FLEX LS is half the size of a vending machine and delivers the industry’s best container densification: It holds up to 900 containers.
  • Page 4 CARE OF THE MACHINE Cleanliness is the most important factor in the reliable operation of the FLEX LS. Both store personnel and Envipco technicians have a responsibility to clean and maintain the machine. The store must perform daily tasks such as cleaning the scanner glass, sensors, and belts. Envipco performs major cleaning and maintenance of the machine on a regular schedule.

  • Page 5: Glossary

    A list that is stored on the RVM controller, which contains the bar codes the machine accepts. There is one table for all commodity types. BINS Containers located in the bottom section of the FLEX LS cabinet that stores the commodity. COMPACTOR A device that reduces the volume of the redeemed containers.
  • Page 6 Refers to the “owner” of the FLEX LS, which is usually a grocery store. REQUEST PAYMENT BUTTON The green button on the front of the FLEX LS, which the customers use to request a voucher as payment. Reverse Vending Machine, which refers to the FLEX LS as a whole.

  • Page 7: Chapter 1 Introduction & Safety

    The FLEX LS provides an excellent solution for container recycling. While recycling bins are popular, users often cause contamination by placing trash into bins. Also, they must be emptied frequently. The FLEX LS solves these problems by sorting and compacting recyclable PET, aluminium and steel containers. It rejects all other items.
  • Page 8 FIGURE 1-2. FLEX LS TRI (PLASTIC, GLASS & CANS) UPPER DOOR LOCKS LCD SCREEN CONTAINER INFEED PRINTER OUTPUT PAYMENT BUTTON UPPER CABINET DOOR LOWER DOOR LOCKS PET/CAN COMMODITY CABINET DOOR GLASS COMMODITY CABINET DOOR UPPER SIDE CABINET DOOR FLEX LS| USER MANUAL | 8...

  • Page 9: Placement

    1.1.2. USAGE By design, the FLEX LS and FLEX LS Tri are easy to use. The LCD screen provides instructions and recycling information to the user. The machine’s sponsor can request custom messaging on the LCD.

  • Page 10: Safety Background Information

    1.2. SAFETY BACKGROUND INFORMATION Envipco is not responsible for any resulting damage or injury when unauthorized people perform maintenance on the FLEX LS. Always lock the cabinet and remove the keys when you are finished working on the machine. This manual emphasizes safety with the use of warnings, cautions and notes: •...

  • Page 11: General Safety Precautions

    FLEX WARNING! during testing or maintenance of the compactors. Never slide out the RVM controller when the compactor is not installed in the FLEX. The machine could tip forward and cause injuries. FLEX LS | USER MANUAL | 11...

  • Page 12: Electrical Safety

    To ensure that the equipment continues to operate safely, Envipco performs a safety inspection at least every six months. FIGURE 1-4. HIGH VOLTAGE WARNING LABEL - RVM CONTROLLER...

  • Page 13: Electrical Safety Labels

    Figure 1-5 shows the label that is displayed inside the front door of the machine. FIGURE 1-5. HIGH VOLTAGE WARNING LABEL - RVM CONTROLLER HIGH VOLTAGE WARNING FIGURE 1-6. HIGH VOLTAGE WARNING LABEL - A/C MOTOR CONTROL BOX HIGH VOLTAGE WARNING FLEX LS | USER MANUAL | 13...

  • Page 14: Mechanical Safety

    Pinch point labels warn against hand hazards from the compaction unit. Figure 1-7 and Figure 1-8 show the locations of these labels in the right and left side access panels of the FLEX LS machine. FIGURE 1-7. SAFETY LABELS IN RIGHT SIDE ACCESS PANEL...
  • Page 15 FIGURE 1-8. SAFETY LABELS IN THE LEFT SIDE ACCESS PANEL KEEP HANDS AWAY WARNING PINCH POINT WARNING FIGURE 1-9. SAFETY LABEL INTAKE CONVEYOR KEEP HANDS AWAY WARNING FLEX LS | USER MANUAL | 15...
  • Page 16 FIGURE 1-10. SAFETY LABEL SIDE GLASS DIVERTER FIGURE 1-11. SAFETY LABEL COMMODITY DOORS KEEP HANDS AWAY FROM MOVING PARTS WARNING FLEX LS | USER MANUAL | 16...
  • Page 17 Do not insert hazardous materials, as they may cause fire or injury. Las partes móviles se inician automá�camente y pueden causar daño. Mantenga las manos alejadas de las piezas móviles! No introduzca materiales peligrosos, ya que pueden provocar un incendio o lesiones. FLEX LS | USER MANUAL | 17...

  • Page 18: Maintenance & Service

    Maintenance technicians and supervisors are ready to answer questions, give assistance, or provide information on the use, care, and operation of the FLEX LS and FLEX LS Tri machines. Access to the service area is restricted to persons having knowledge and practical experience with this appliance, in particular as far as safety and hygiene are concerned.
  • Page 19 FIGURES 2-1 COMPONENTS TO BE CLEANED BELTS PET BIN CAN BIN 3 SCANNERS SENSORS REFLECTORS FLEX LS | USER MANUAL | 19...

  • Page 20: Emptying Bins

    1.) Bin full sensors will bring the machine out of service until the full bins are emptied. 2.) The FLEX LS and FLEX LS Tri can be set to go “Bin full by count” after a predetermined num- ber of containers have been processed. Do the following to clear counts after the full bins have been emptied: •...

  • Page 21: Keys

    2.4. KEYS Each FLEX LS installation comes with a set of two (2) keys. One of the keys opens the storage bin door and the other key opens the top door of the machine. If the keys to the machine are lost, please contact your Envipco technician.
  • Page 22 FIGURE 2-5. PRINTER HEAD LIFT PIN LOCATION If the printer jams, push in the printer head lift pin before attempting to remove the paper. Pull the lift pin all the way out to reload paper. FLEX LS | USER MANUAL | 22...

  • Page 23: Servicing The Flex

    • Sorter unit – Clean debris away from the proximity switch and make any needed adjustments. • Compactor – Adjust the compactor stall sensor, if necessary. • Bins – Clean up any debris that has fallen out of the bins. • Feed sensors – Clean and calibrate. FLEX LS | USER MANUAL | 23...

  • Page 24: Product Acceptance

    “wrap”. When a new product is added in the store, you must notify Envipco to have the bar code added to the RVMs bar code table.

  • Page 25: Chapter 3 Installation

    • Weight – approximately 230 kg The FLEX LS is made with a durable finish that presents a fresh, crisp appearance. They invite customer use, and complement the store environment. The location must have an access area in front of the RVMs of at least 1220mm (48”) This area provides space for the removal of the contents of the storage bins.
  • Page 26 The higher the canopy, the larger it must be to provide adequate coverage for the FLEX LS. The overhang must extend out far enough to form an angle of 30° from the base of the machine to the canopy on all sides.

  • Page 27: Functional Check Procedures

    No other maintenance or service personnel are authorized to perform calibration or repair of the FLEX LS. If the machine requires maintenance or repair, contact the authorized service personnel using the number posted inside the front door of the machine.
  • Page 28 FLEX LS USER MANUAL | EDITION 2110...
