Summary of Contents for AES COVID-19 PCV

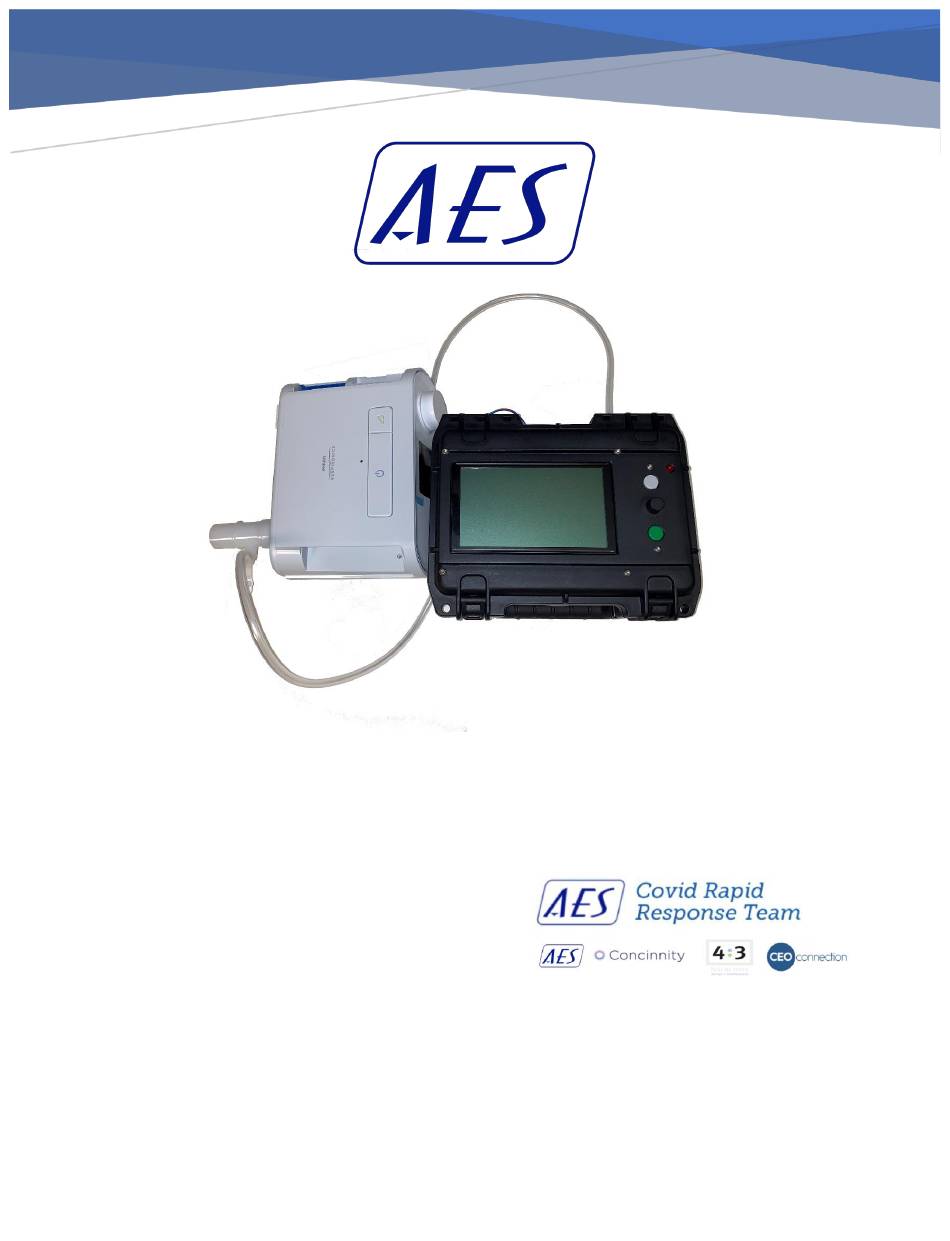

- Page 1 COVID-19 PCV VENTILATOR User Guide and Reference Manual AES Technologies 155 Tri County Pkwy Ste 270 Cincinnati, OH 45246 Jamie Ahmed jahmed@aescontrols.com...
-
Page 2: Table Of Contents
Ventilation settings menu ........................7 Ventilator Fault display ......................... 7 Using the COVID-19 PCV Ventilator device ....................8 Using the COVID-19 PCV Ventilator device for the first time ..............8 Powering on the device ..........................9 Powering off the device ..........................9 Starting and stopping ventilation ...................... -
Page 3: Introduction
Introduction Foreword & Motivation The AES Technologies COVID-19 PCV Ventilator device was designed specifically to help address the dire ventilator shortage due to the COVID-19 Pandemic. As of this writing, on April 1, 2020, New York City is the current epicenter of this virus, and over 900 deaths were reported in the US within a 24-hour period. -
Page 4: About The Aes Technologies Covid-19 Pcv Ventilator Device
Read the entire manual before using the COVID-19 PCV Ventilator device. • Use the COVID-19 PCV Ventilator device only as directed by a physician or healthcare provider • Use COVID-19 PCV Ventilator device only for the intended use as described in this manual. - Page 5 • The COVID-19 PCV Ventilator device must not be used in the vicinity of an MRI or diathermy device. • The effectiveness of ventilation and alarms should be verified including after any ventilation or alarm setting change, any change in circuit configuration, or after a change to co-therapy (i.e.
-
Page 6: The Covid-19 Pcv Ventilator Device

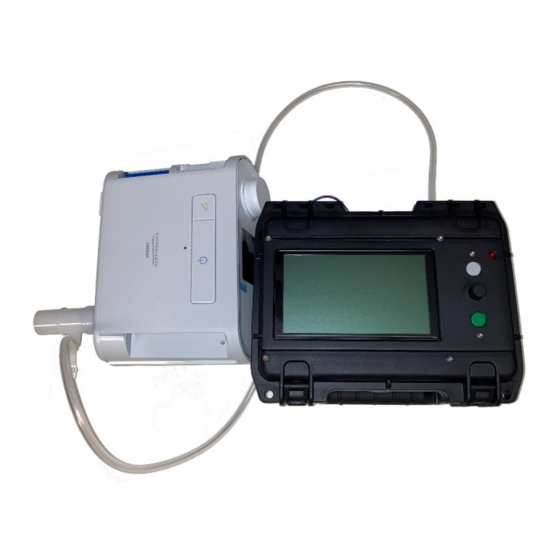

The COVID-19 PCV Ventilator device The following images describe the components of the COVID-19 PCV Ventilator device. Description System MODE button Rotary dial & button for user input System MENU button Fault Indicator Light System Display Power supply connection (24V, 10A) Pressure sensing port –... -
Page 7: The Covid-19 Pcv Ventilator Device Interface
The COVID-19 PCV Ventilator device interface The interface of the COVID-19 PCV Ventilator device comprises several different features described in the following images. Description Current System Mode indicator Peak inspiratory pressure setpoint indicator Average tidal pressure indicator PEEP setpoint indicator... -
Page 8: Ventilation Settings Menu
Peak inspiratory pressure PEEP cmH2O Positive end expiratory pressure f total b/min Breathing rate ratio Ratio of inspiratory time to expiratory time Interface Patient interface selection – MASK or ET Ventilator Fault display PAGE 7 COPYRIGHT © 2020 AES TECHNOLOGIES... -
Page 9: Using The Covid-19 Pcv Ventilator Device
Using the COVID-19 PCV Ventilator device for the first time When using the COVID-19 PCV Ventilator device for the first time, AES Technologies recommends you first perform a functional test. A functional test will ensure the device is in proper working order before starting therapy. -
Page 10: Powering On The Device
Powering on the device To power on the COVID-19 PCV Ventilator device, simply plug the power source into the back of the device. The device will perform a system check while the logo and splash screen are displayed, followed by the Home screen. -
Page 11: Connecting A Single Limb Circuit With Exhalation Port
Regularly check the antibacterial filter and expiratory valve for signs of moisture or other contaminants, particularly during nebulization or humidification. Failure to do so could result in increased breathing system resistance and/or inaccuracies in sensor measurements. PAGE 10 COPYRIGHT © 2020 AES TECHNOLOGIES... -
Page 12: Adding Supplemental Oxygen
4. Turn on oxygen and adjust (at the oxygen supply) to the prescribed flow rate. To remove supplemental oxygen: 1. Remove the oxygen port connector from the supplemental oxygen inlet port connector (typically located on or near non-invasive mask or endotracheal tube). PAGE 11 COPYRIGHT © 2020 AES TECHNOLOGIES... -
Page 13: Connecting The Device To Mains Power
Ensure that the power cord does not pose a tripping or choking hazard. To connect to mains power: 1. Connect the DC plug of the supplied external power supply unit to the rear of the COVID-19 PCV Ventilator device. 2. Before connecting the power cord to the external power supply unit, ensure the end of the connector of the power cord is correctly aligned with the input socket on the power supply unit. -
Page 14: Testing The Alarms
This section describes functional tests to allow the user to understand the conditions that can trigger common alarms. Alarm Test procedure Low pressure Disconnect patient interface Obstruction Obstruct breathing circuit High leak Disconnect patient interface Pressure sensor error Block ambient pressure sensor port PAGE 13 COPYRIGHT © 2020 AES TECHNOLOGIES... -
Page 15: Troubleshooting
Troubleshooting If there is a problem, contact your care provider or AES Technologies. PAGE 14 COPYRIGHT © 2020 AES TECHNOLOGIES... - Page 16 Liability Statement The AES Technologies COVID-19 PCV Ventilator device is covered under the FDA Emergency Use Authorization (EUA) for ventilators. More information can be found at the FDA website: https://www.fda.gov/media/136318/download PAGE 15 COPYRIGHT © 2020 AES TECHNOLOGIES...
