ELMP170SP51
EAN: 5059340124438
ORIGINAL INSTRUCTIONS
V10820 / BX220IM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELMP170SP51 and is the answer not in the manual?

Questions and answers

Summary of Contents for Erbauer ELMP170SP51

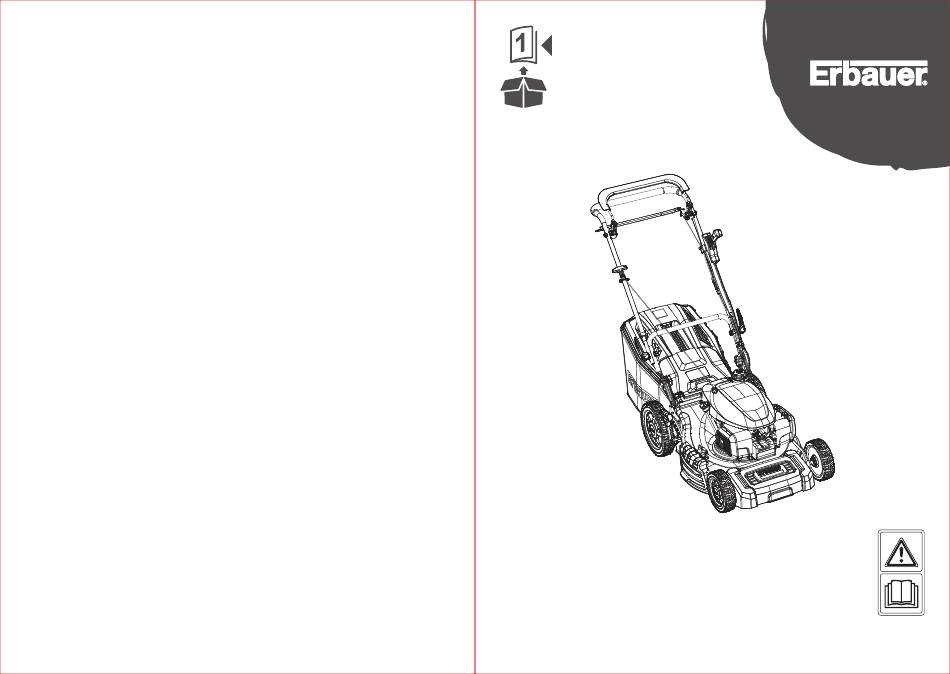

  • Page 1 ELMP170SP51 EAN: 5059340124438 ORIGINAL INSTRUCTIONS V10820 / BX220IM...
  • Page 2: Product Description

    WARNING! Please read all safety Product description warnings carefully and be sure that they are fully understood before handling the tool. Safety instructions PRODUCT DESCRIPTION Assembly Brake clutch 19. Lower handle bar knob (x2) Handle a. Bolt * a. Transportation handle 20. Rear deflector guard Drive bar 21.
  • Page 3 Product description...
  • Page 4 5 mm 1 cm...
  • Page 5 Safety instructions PETROL POWERED LAWNMOWERS SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this product. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. TRAINING a) Read the instructions carefully. Be familiar with the controls and the proper use of the product. b) Never allow children or people unfamiliar with these instructions to use the product.
  • Page 6: Maintenance And Storage

    e) Before using, always visually inspect to see that the blades, blade bolts Do not tilt the product when starting the engine or switching on the engine, and cutter assembly are not worn or damaged. Replace worn or damaged except if the product has to be tilted for starting. In this case, do not tilt it blades and bolts in sets to preserve balance.
  • Page 7: Fuel Handling

    b) Keep all nuts, bolts and screws tight to be sure that the product is in safe Fuel vapour pressure may build up inside the fuel tank depending on the working condition. fuel used, weather conditions and the venting system. To reduce the risk c) Improper maintenance or using non-genuine parts not recommended by the of burns and other personal injuries, remove the fuel tank cap carefully to manufacturer may lead to malfunction/failure of the product.
  • Page 8: Residual Risks

    EMERGENCY Technical specifications Familiarise yourself with the use of this product by means of this instruction manual. General Memorise the safety directions and follow them to the letter. This will help to prevent Dimensions: approx. 166 x 54 x 110 cm risks and hazards.
  • Page 9 The sound values have been determined according to noise test code given in Description of signal words: EN ISO 5395-1 and EN ISO 5395-2, using the basic standards ISO 3744 and ISO 11094. The signal word that indicates a hazard with a high level of risk DANGER! which, if not avoided, will result in death or serious injury.
  • Page 10 Guaranteed sound power level value in dB. Keep away from fire. Do not add fuel with a running engine. E_Erbauer, LMP_Petrol lawnmower, 170_ Engine model, ELMP170SP51 Inspect the area where the product is to be used and remove all SP_Self-propelled,51_Cutting width 51cm objects which can be thrown by the product. If objects are hidden while operating, stop the engine and remove the objects.
  • Page 11 Assembly Assembly WARNING! The product must be fully assembled before the operation! Do not use a product that is only partly assembled or assembled with damaged parts! Unpacking Follow the assembly instructions step-by-step and use the pictures provided as a visual guide to assemble the product easily! The product is heavy, ask another person for assistance if required.
  • Page 12: Intended Use

    This petrol lawnmower ELMP170SP51 is designated with a power output of 3.1 kW. 1. The product is intended for mowing grass in domestic gardens only. It must not be used to mow unusually high, dry or wet grass (e.g. pasture grass) or for shredding leaves.
  • Page 13: Product Functions

    NOTE: Petrol deteriorates over time. It may be difficult to start the engine Product functions if you use petrol which has been kept for more than few days. Empty the fuel after every use. Run the product dry of fuel in idle before storage. Handle adjustment NOTE: Fuel can damage paint and plastic. When filling the tank, take 1. Loosen the lower handle bar knob (19) by turning it anti-clockwise. Take out the care not to spill any fuel.
  • Page 14: Operation

    Grass catcher inspection WARNING! Do not suddenly release the recoil starter handle (23)! Allow During use the grass catcher (21) material is subjected to normal wear and tear. the rope to return slowly and in a controlled manner each time it is pulled! An excessively worn grass catcher may allow the objects to be thrown towards the operator.
  • Page 15 3. Ensure that the air vents are always unobstructed and clear. Clean them if necessary 1. Pull the brake clutch (1) towards the handle (2) and hold it in position. with a soft brush. Blocked air vents may lead to overheating and damage the 2.
  • Page 16 Preparing the product according to required application Mulching Side discharge Care & maintenance Function Grass catcher (21) insert (24) attachment (25) Grass collection installed removed removed The golden rules of care Mulching removed installed removed Side discharge removed installed installed DANGER! Proper maintenance is essential for safe and trouble free Self-propelled function operation.
  • Page 17 Maintenance Before and after each use, check the product and accessories for wear and damage. If required, exchange them for new ones as described in this instruction manual. Observe the technical requirements. WARNING! It is required to tip the product when performing the maintenance.
  • Page 18 Underbody and cutting means NOTE: Replace the cutting means (27) after 50 hours of mowing, or 2 years whichever is sooner regardless of condition. If the cutting WARNING! Wear protective gloves when working on the cutting means (27) is cracked or damaged, replace it immediately. means (27) and close to it! Use proper tools to remove debris, e.g.
  • Page 19: Troubleshooting

    Brake and drive wires Troubleshooting Check the performance of the brake wire (8) and the drive wire (7) before each use. Suspected malfunctions are often ones that the users can fix themselves. Therefore Ask a qualified specialist to adjust it if necessary. check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed WARNING! Do not use the product with a defective or loose wires! by an authorised service centre or a similarly qualified specialist if you...
  • Page 20: Recycling And Disposal

    Problem Possible cause Solution Recycling and disposal 3. Engine difficult 3.1 Dirt, water or stale fuel 3.1 Drain fuel and clean to start or loses in the fuel tank tank. Fill the tank with 1. Old products are potentially recyclable and do not, therefore, belong in your power clean, fresh fuel household rubbish.
  • Page 21 Declaration of conformity...
