Summary of Contents for freor MERCURY

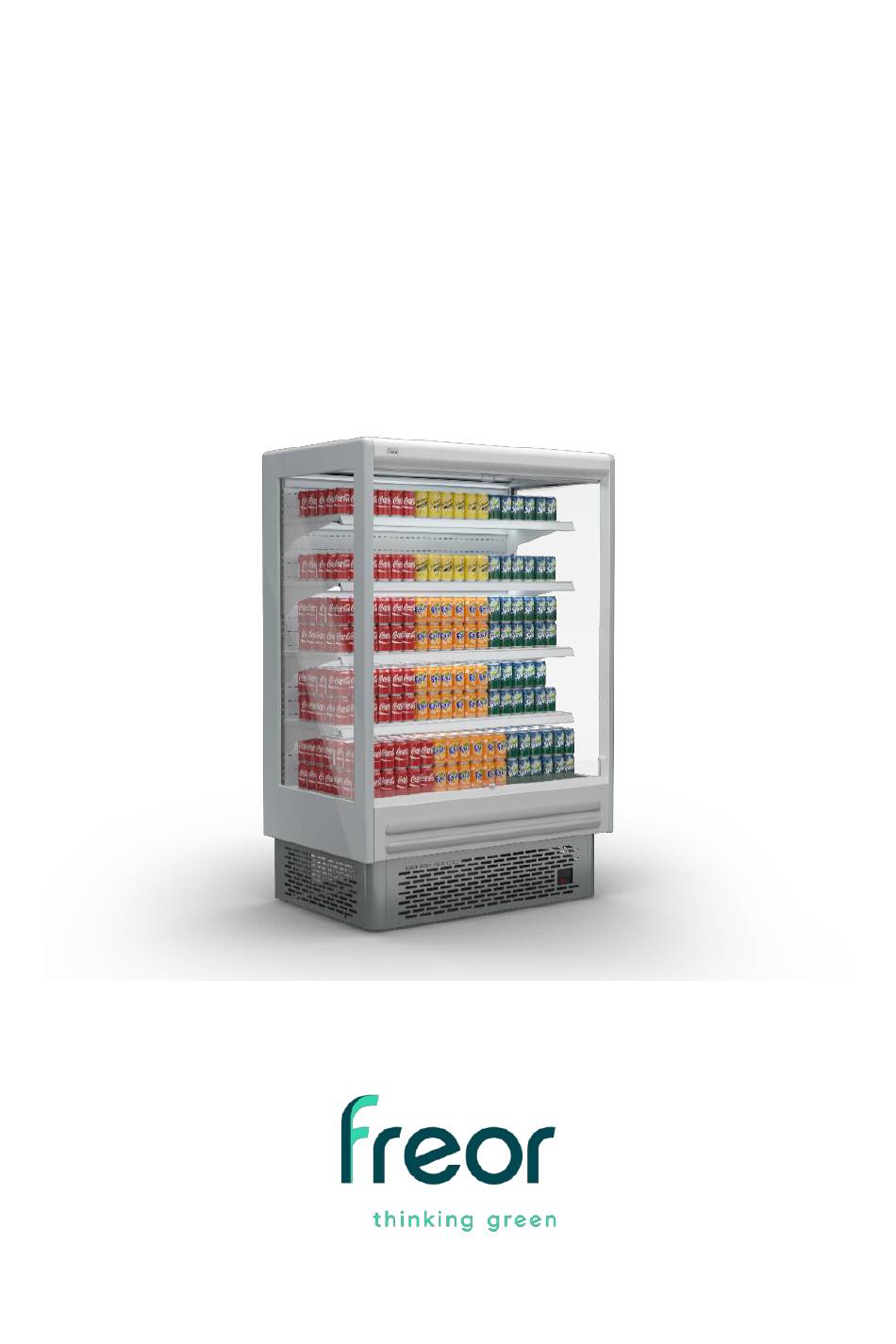

- Page 1 OPERATION MANUAL MULTIDECK MERCURY...
-
Page 2: Table Of Contents
Table of contents GENERAL INSTRUCTIONS ................. 4 1.1. Sender information ................4 1.2. Dimensions ..................6 1.3. Packaging and its dismounting ............7 1.4. Rules for operating R290-based refrigeration cabinets ......11 1.5. Conditions for use and ambient temperature ........11 1.6. - Page 3 10. ENERGY SAVING ..................24 11. DISPOSAL ....................24 12. STORAGE ....................25 13. TRANSPORTATION ................. 25 14. TESTING ....................25 15. ACCESSORIES ..................25 16. TECHNICAL DATA .................. 26 16.1. Electrical layouts ................26 16.2. Failures and troubleshooting ............26 16.3.
-
Page 4: General Instructions
GENERAL INSTRUCTIONS 1.1. Sender information FREOR LT, UAB Katiliskiu St. 92, LT - 02212 Vilnius, Lithuania Manufacturer, T: +370 5 232 9188 address Made in Lithuania Customer Installation date Installation place Start of the product operation [PLACE FOR PRODUCT LABEL]... - Page 5 • The operation manual of the multideck Mercury must be kept at the place of operation. It must be available to technical staff, service personnel and repair specialists at any time.
-
Page 6: Dimensions
1.2. Dimensions Fig. 2. Dimensions of Mercury Fig. 3. Dimensions of Mercury Flower... -
Page 7: Packaging And Its Dismounting
1.3. Packaging and its dismounting Fig. 4. Mercury 2500 package dimensions Fig. 5. Mercury 1880 package dimensions... - Page 8 Fig. 6. Mercury 1250 package dimensions Fig. 7. Mercury 940 package dimensions...
- Page 9 Size 10 15 min Unload the multideck; Unscrew the self- tapping screws from side dust covers. Self-tapping screws M4,2x13 ISO 7380; Lift and remove the side dust covers;...
- Page 10 Unscrew the screws from the pallet, remove the brackets; Remove the unit from pallet; After unloading return the dust covers to it’s initial position and tighten it with the self- tapping screws M4,2x13 ISO 7380;...
-
Page 11: Rules For Operating R290-Based Refrigeration Cabinets
1.4. Rules for operating R290-based refrigeration cabinets According to the standard DIN EN 378-1, the refrigerant R290 (propane gas) is assigned to the group of A3 refrigerants (flammable and explosive). Within the limits of a certain area, the refrigerant together with the air and respective ignition power (source of ignition) can cause an exothermic reaction. -
Page 12: Intended Use
1.6. Intended use The multideck Mercury is intended to be used for the display of chilled products. Mercury is provided for maintaining of average temperature (0...+10°C) in the inner space of the multideck. It is forbidden to upload the multideck with warm products with a higher temperature than that of the multideck. -
Page 13: Requirements For Setting Down The Multideck
1.8. Requirements for setting down the multideck When setting down the unit pay attention to the following issues: • The unit must be aligned horizontally in all directions (depth, length) and set down stably. • At the place of the setting down, avoid draughts and higher heat. Do not set down the equipment in front of heating radiators, heaters and near air outlets. -
Page 14: Uploading Level
UPLOADING LEVEL Mercury multideck is equipped with shelves, the maximum allowable loads which are specified in the main layout sticker (Fig. 9.). The sticker is attached to right corner of inner ceiling. It is forbidden to exceed the indicated maximum loads. -
Page 15: Access To The Fan Unit In The Event Of Failure
ACCESS TO THE FAN UNIT IN THE EVENT OF FAILURE 15 min Remove the lower hooked shelve for easier access; Remove the bottom shelves; Remove the air intake grids;... -
Page 16: Service Of Evaporator
Unscrew the self- tapping screws from fan. Remove the fan. Self-tapping screws M4, 2x13 DIN 968 SERVICE OF EVAPORATOR Remove the lower hooked shelve for easier access; Remove the bottom shelves;... - Page 17 Unscrew the self- cutting screws M4.2x13 ISO 7380 holding the service cover ; Note: If full access to evaporator is needed, see next steps: Remove the bottom shelve rail; Unscrew the self- cutting screws M4.2x13 ISO 7380 holding the fan unit;...
- Page 18 Disconnect electrical wires of the fan and remove the fan unit; Remove the evaporator cover. Now evaporator can be accessed;...
-
Page 19: Service Of The Compressor And Condenser
SERVICE OF THE COMPRESSOR AND CONDENSER Size 10 Unscrew the front dust cover, lift it and remove it. Self- cutting screws M4,2x13 ISO 7380; Unscrew the front screws of the base holding the base frame and the multideck structure. The screw M6x16 DIN933. -
Page 20: Connection Of The Power Supply
CONNECTION OF THE POWER SUPPLY INSTRUCTIONS It is necessary to regard and follow the requirements of the local power supply company in force in the respective region and the nationally valid and applicable standards as well as safety rules! The network voltage and frequency must match the nominal values indicated on the operating data table of the unit! The main power supply parameters: 1. -
Page 21: Operation
To save energy during non-business hours of the shop, an open multideck should be covered with curtains. 7.2. Operation • The multideck Mercury is installed in the shopping premises at a predefined location. • The cabinets must be interconnected in accordance with the furniture installation manual. -
Page 22: Drainage
DRAINAGE The multideck Mercury are equipped with drainage into the condensate collection tub that is mounted under the multideck. It is necessary to check the condensate collection tub to prevent it from entry of food remains, sand or larger dust particles. -
Page 23: Cleaning
9.5. Cleaning The multideck must be regularly cleaned, as food products are sensitive to bacteria and microorganisms. Therefore, it is necessary to clean regularly the multideck as liquid products as well as damaged packaging of the displayed products may damage metal parts of the multi-deck and small products can enter drainage openings and affect condensate drainage. -
Page 24: Sanitary Day
9.7. Sanitary day General cleaning of the refrigerated furniture must be performed once every 4 weeks. The multideck must be cleaned and disinfected to eliminate pathogenic microorganisms. • Make sure that defrosting is in progress. • Remove the products from the multideck, and temporarily place them in the freezer compartment. -
Page 25: Storage
After the multi-decks are installed, each multideck and the overall system must be inspected before their start-up. 15. ACCESSORIES The equipment is supplied with many special accessories, such as partitions, tabs, price holders, a drainage collection tub, evaporation baths, safety bumpers, etc. For more information, please call FREOR LT or sales partner. -
Page 26: Technical Data
F and OAM gases. Only an electrician with the respective qualification may carry out inspection and repair of electrical installation. The control informs on faults of the multideck Mercury. ENABLE ALARM Alarm buzzer and... -
Page 27: Possible Causes
16.3. Possible causes Error signal Potential reason Troubleshooting Power supply failure (the Check electrical system does not receive installations, network and power supply). fuses. The temperature of the Remove warm products uploaded products is from the cabinet and higher than the freeze them up to the temperature in the internal necessary temperature in... - Page 28 Check for the phase matching (in the event of changed phases, one- phase cabinet elements The multideck is out of Power supply disorders. can be operational). order. Check switches; Check the network. Fluctuations of the electrical network voltage; Refrigeration cycle disorders;...
-
Page 29: Meanings Of Symbols
17. MEANINGS OF SYMBOLS Symbol Meaning Type Qualified specialist Work clothing Protective gloves Brittle surfaces; Wrench Sizes: 7, 10, 17, 32 Screwdriver Rubber hammer Protective goggles Silicone pistol Clamp... - Page 30 Date Work Name...
- Page 31 Date Work Name...
- Page 32 FREOR LT, UAB Manufacturer of the commercial refrigeration equipment Katiliskiu St. 92, LT - 02212 Vilnius, Lithuania T: +370 5 232 9188 E: sales@freor.com www.freor.com DOM-0FU0X-S0000E_v1.1 FREOR LT is not affiliated with Chemours or FREON.
