AIR PURIFIER OPERATING INSTRUCTIONS
MODEL NO.: AP-126D
Email: Support@airchoiceproducts.com
Thank you for purchasing this product. For better and more
safety using, please read this manual thoroughly before
operation and retain for future reference.
C-0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP-126D and is the answer not in the manual?

Questions and answers

Tracy Crosby
January 20, 2025

Where do I purchase a replacement filter for my son’s air purifier? It is a TrustTech Air purifier model AP-126D.

0
1 comments:
Mr. Anderson
February 4, 2025

You can buy a replacement filter for the TrustTech Air Purifier model AP-126D on Amazon.ca.

This answer is automatically generated

0

Related Manuals for air choice AP-126D

Summary of Contents for air choice AP-126D

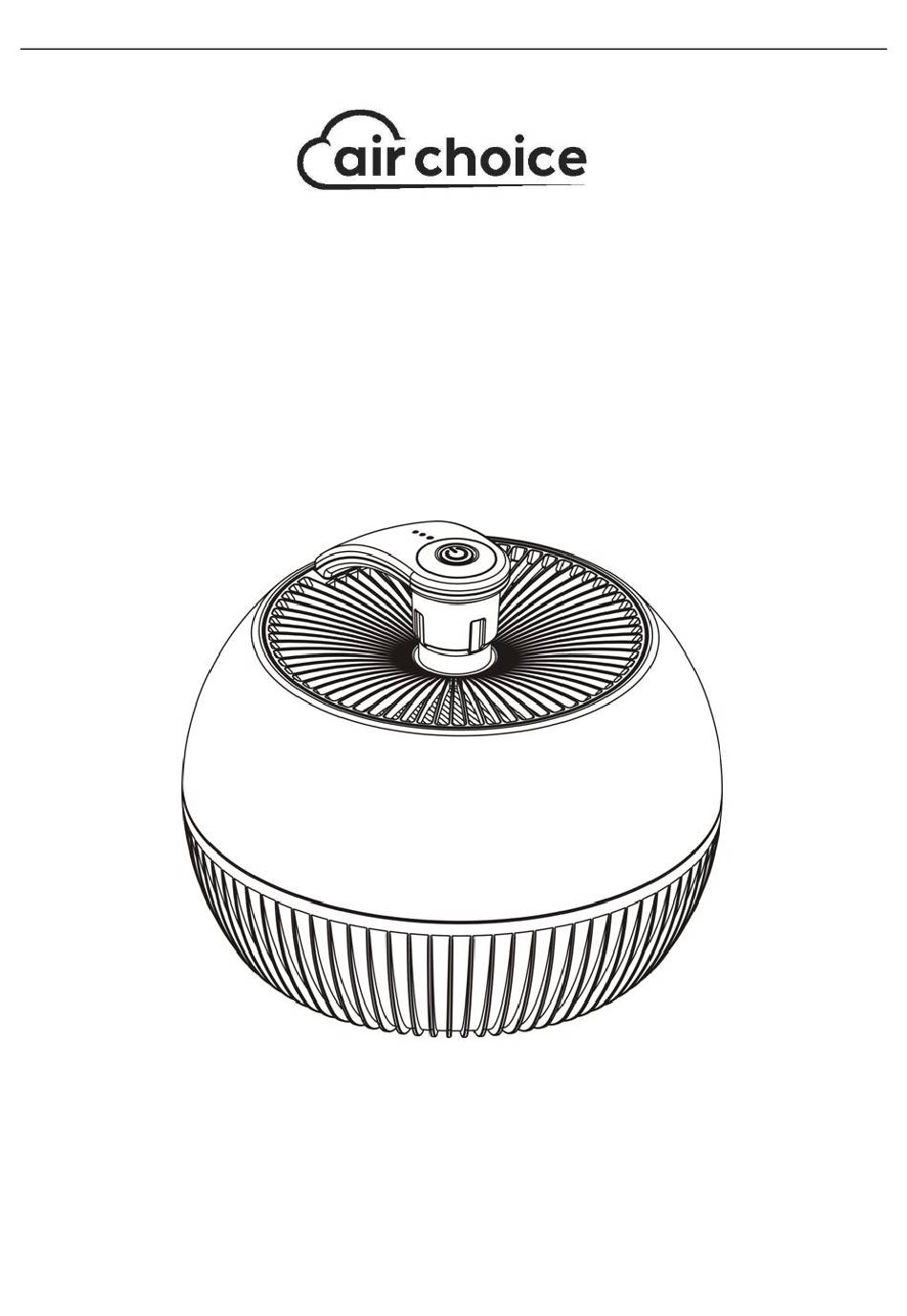

  • Page 1 AIR PURIFIER OPERATING INSTRUCTIONS MODEL NO.: AP-126D Email: Support@airchoiceproducts.com Thank you for purchasing this product. For better and more safety using, please read this manual thoroughly before operation and retain for future reference.

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS: Before using an electrical product, basic safety precautions should always be observed, including the following: DANGER ▲Do not immerse the appliance in water or liquid. To reduce the risk of electric shock, fire or injury to persons ▲Do not use any corrosive or flammable liquids to clean the appliance to reduce the risk of electric shock, fire or injury to persons.
  • Page 3 should be supervised by a responsible adult to ensure that they do not play with the product. ▲Do not block the air inlet and outlet to avoid damage due to overheating. Place away from soft objects such as curtains. ATTENTION ▲Do not use this appliance when you have used indoor smoke-type insect repellents or in places with oily residues, burning incense or chemical fumes.
  • Page 4 ▲Always lift or move the product with the handle on the back of the product。 ▲Do not put your fingers or other objects into the air outlet, to avoid injury and damage the product. ▲Do not operate the product in the area where gasoline, painting or flammable liquids are around.

  • Page 5: Parts Description

    PARTS DESCRIPTION A、 Cover； B、HEPA Filter (The Pre-filter is in surface)； C、 Switch Button； D、Air outlet Pre-Filter – Intercept the hair, dander and other large particle contamination; prolong the service life of HEPA filter. HEPA Filter – HEPA can help to remove PM2.5 and efficient removal of the dust particle in 0.3 microns, including parts of PM2.5 and PM5-10 particle.
  • Page 6 1. Hold your hands on the upper cover, unlock the upper cover by rotating it in the counter-clockwise direction. Rotate “OPEN” to the icon position and then stop. (Fig.1 ) （Fig 1 ） 2. Hold the upper cover with both hands and remove the upper cover（Fig.
  • Page 7 3. Take away HEPA filter by pulling the handle on the side of the filter slightly. (Fig.3) (Fig.3) 4. Take the HEPA filter out of the plastic bag. (Fig.4) Note: Please be reminded to take away the plastic bag before putting the filters in the air purifier.
  • Page 8 (Fig.4) 5. Put back the HEPA filter into the appliance, and fix the filter properly。 (Fig.5) (Fig.5) 6. Replace the upper cover. Square the upper cover with both hands, align them on the top cover with the icon（Fig.6）Push the upper cover into the product and combine it with the product，then hold the upper cover ribs by hand and rotate the upper cover to the direction of and turn it to the bottom to stop.（Fig.7）...
  • Page 9 6. Untie the cord power belt, plug in the socket and start to use the appliance. (Fig.8、9) Fig.8 （ ） Fig. 9 ） （...
  • Page 10 OPERATION INSTRUCTION Operation Panle Buttons Button Name Function The pilot light of “L” is on ， the machine Press ON/LO turn on and the fan speed is low;(the time negative ion is auto-start) Press MIDDL The pilot light of “M” is on, the fan speed times is middle；...

  • Page 11: Troubleshooting

    MAINTAINCE & CLEANING （Note: Please unplug the appliance before maintain or clean it.） Appliance Surface Please do regularly clean the dust inside and outside, to avoid dust gathering. 1) Use the soft and dry cloth to clean the surface of the appliance.
  • Page 12 Problem Possible Causes & Solution 1. The appliance is unplugged. Check if the plug is loose. appliance 2.The cover is not well assembled. cannot turn on Re-assemble the cover referring to the “INSTALLATION OF FILTER” section. 1. The plastic bags of filter are not removed.

  • Page 13: Product Specification

    PRODUCT SPECIFICATION Model No. AP-126D Rated Voltage/ Frequency 120V AC 60Hz Rated Power Recommend Coverage 12-15m CADR 120 m³/h Negative Ion Density ＞2million pcs /cm Noisy Level 33-52dB Product Dimension 275 X 275 X 232mm (Diameter X Width X Height)

  • Page 14: Warranty

    CONTACT US Thank you for choosing AIR CHOICE product. If you have any question please contact us directly: Email:Support@airchoiceproducts.com WARRANTY AIR CHOICE warrants this product against defects in materials and/or workmanship under normal use for a period of ONE (1) YEAR from the date of purchase by the original purchaser (“Warranty Period”).
  • Page 15 AIR CHOICE; d) accessories used in conjunction with a covered product; e) a product or part that has been modified to alter functionality or capability;...
